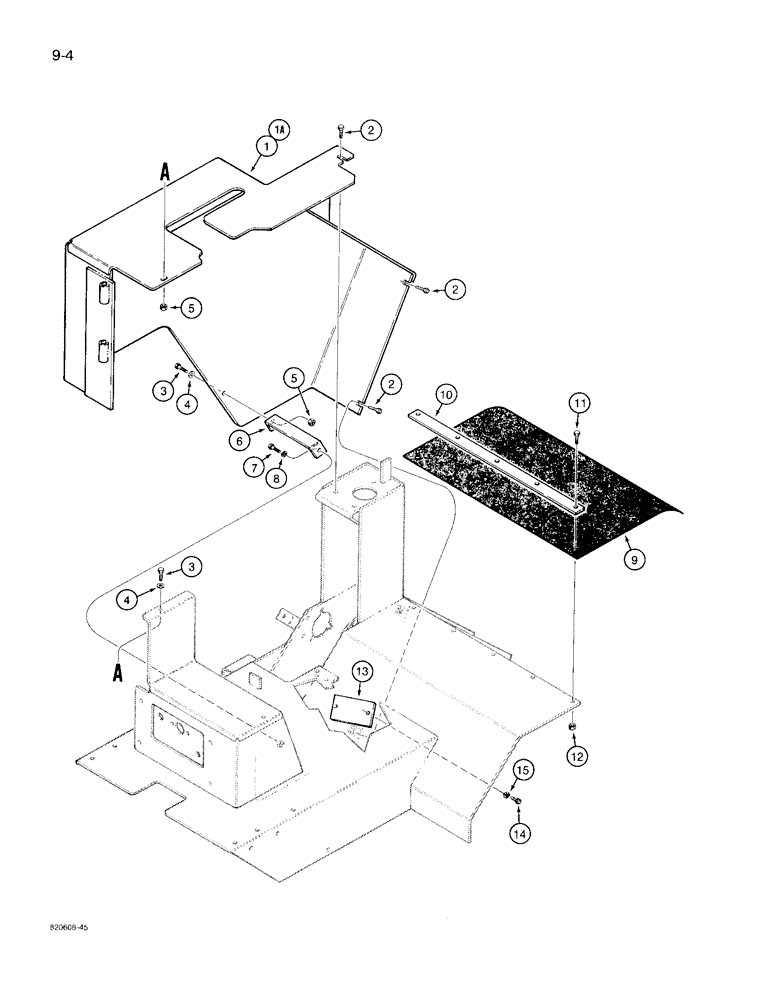

Запчасти Case TL100 (9-04) - SIDE COVERS AND ACCESS PLATE (09) - CHASSIS/ATTACHMENTS

1

H319301

COVER

- belts and chains, left-hand side, used on all models with Wisconsin engine, prior to SN 1136988 on models with Kohler manual start engine, and prior to SN 1136990 on models with Kohler electric start engine, does not swing out

1шт.

1a

H638072

GUARD

COVER - belts and chains, left-hand side, used on SN 1136988 and after on models with Kohler manual start engine, and on SN 1136990 and after on models with Kohler electric start engine, swings out for service access, for hinge bracket see Figure 9-2

1шт.

2

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

3шт.

3

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

4

195-521

WASHER,5/16", SAE

- flat, 11/32 x 11/16 x 1/16 inch

2шт.

5

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16 inch NC

2шт.

6

H319194

CHANNEL

SUPPORT - cover, lower

1шт.

7

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9

H314088

MUDFLAP

FLAP - dirt

1шт.

10

H314237

STRIP

STRAP - dirt flap, metal

1шт.

11

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

5шт.

12

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16 inch NC

5шт.

13

H363895

LARGE PLATE

PLATE - cover, access to right-hand front engine mounting bolt

1шт.

14

187-1069

SELF-TAP SCREW,5/16" - 18 x 3/4"

SCREW - self-tapping, hex head, 5/16 NC x 3/4 inch

2шт.

15

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
