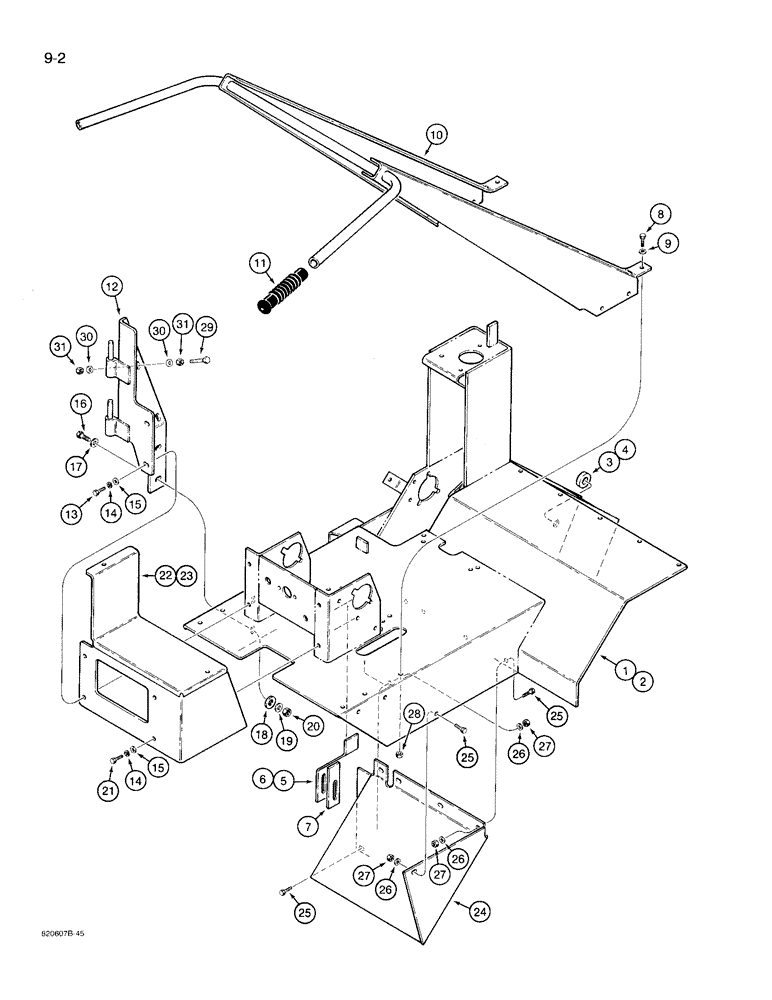

Запчасти Case TL100 (9-02) - MAIN FRAME AND STEERING HANDLE (09) - CHASSIS/ATTACHMENTS

1

H624486

FUNNEL

ASSEMBLY main, trencher, used on all models with Wisconsin engine, prior to SN 1136988 on models with Kohler manual start engine, & prior to SN 1136990 on models w/ Kohler electric start engine, Refs. 3&5 below, no longer available,1, Includes: Ref. 3 - 7

1шт.

2

H637702

FUNNEL

FRAME ASSEMBLY - main, trencher, used on SN 1136988 and after on models with Kohler manual start engine, and on SN 1136990 & after on models with Kohler electric start engine, includes Refs. 12 - 15 on Figure 9-10 & Refs.4 & 6 below, Includes: Ref. 3 - 7

1шт.

Main frame assy. also includes Ref. 12 - 15A on Figure 9-10

1шт.

3

H26468

SPACER

- front wheel, welds in place, H624486 main frame only

1шт.

4

H366492

SPACER

- front wheel, welds in place, H637702 main frame only

1шт.

5

H333096

BRACKET

- chain roller, bent, welds in place, H624486 main frame only

1шт.

6

H366641

BRACKET

- chain roller, bent, welds in place, H637702 main frame only

1шт.

7

H333104

BRACKET

- chain roller, straight, welds in place, used on both main frames

1шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

10шт.

9

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

10шт.

10

H665067

HANDLE

- steering

1шт.

11

H33332

GRIP

- steering handle

2шт.

12

H638064

BRACKET

- hinge, used with H637702 main frame only, Ref. 2 above

1шт.

13

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

14

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

15

195-521

WASHER,5/16", SAE

- flat, 11/32 x 11/16 x 1/16 inch

4шт.

16

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

17

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

18

H426783

WASHER

- flat, 7/16 inch, hardened

2шт.

19

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

20

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

2шт.

21

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

22

H617795

GUARD

- console and rear jackshaft, models with Wisconsin engine only

1шт.

23

H618819

GUARD

- console and rear jackshaft, models with Kohler engine only

1шт.

24

H353748

DEFLECTOR

- dirt, not used prior to SN 1117905

1шт.

A rubber dirt flap was used prior to SN 1117905. For these early models, order Refs. 24 - 27 for service replacement.

1шт.

25

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

6шт.

26

195-521

WASHER,5/16", SAE

- flat, 11/32 x 11/16 x 1/16 inch

6шт.

27

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16 inch NC

6шт.

28

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

10шт.

29

113-21

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5, Full Thd

- hex, full thread, 1/4 NC x 1-1/2 inch

2шт.

30

H426775

WASHER

- flat, special

4шт.

31

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 3/8 inch NC

4шт.
