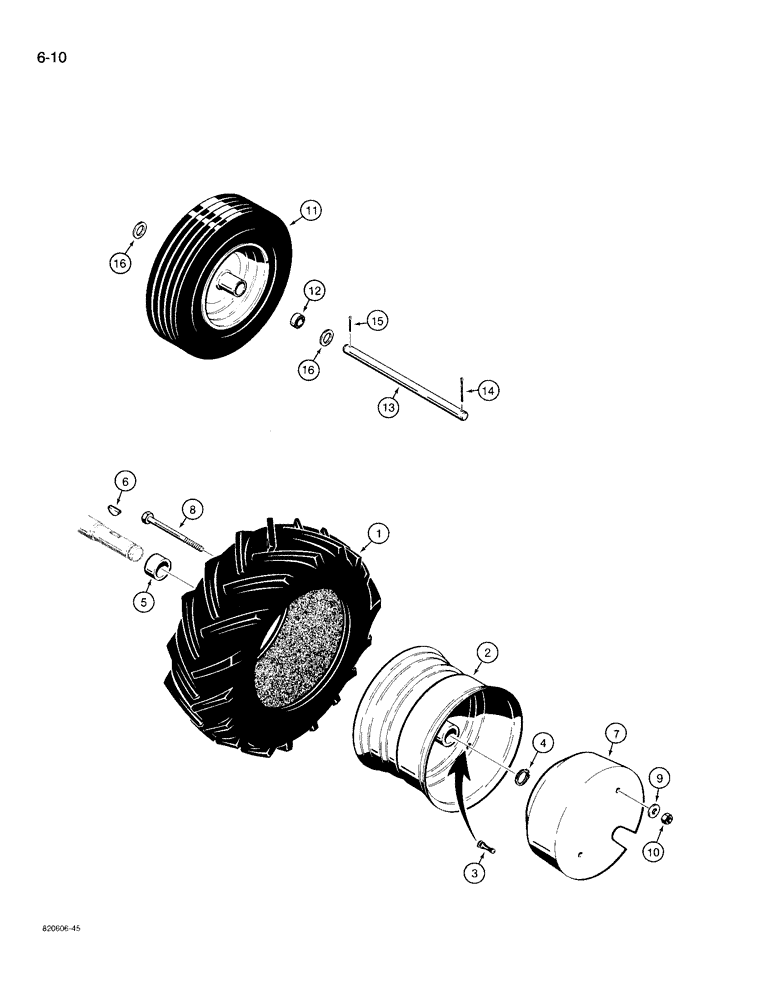

Запчасти Case TL100 (6-10) - WHEELS AND TIRES (06) - POWER TRAIN

1

REF

INSTRUCTION

TIRE - rear, 16 x 6.50 x 8, purchase locally

2шт.

2

H434414

RIM

WHEEL - rim, rear, right-hand wheel shown

2шт.

3

H261917

VALVE

STEM - valve, rear wheel

2шт.

4

B18208

SNAP RING,#100, Ext

rear wheel #100, Ext

2шт.

5

H311043

SPACER

- rear wheel, if used

2шт.

6

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

(No. 807) #A, 1/4" x 7/8", HT

2шт.

7

H351759

WHEEL

WEIGHT - wheel, rear, if used

2шт.

8

413-572

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

- hex, 5/16 NC x 4-1/2 inch

4шт.

9

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

4шт.

10

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16 inch NC

4шт.

11

H500603

WHEEL

ASSEMBLY - front, includes 3 x 12 semi-pneumatic tire, left-hand wheel shown, Includes: Ref. 12

2шт.

12

H26856

ROLLER BEARING

BEARING - roller, wheel hub, 5/8 inch wide, H500603 production wheel only

2шт.

12

H434422

BEARING - roller, wheel hub, 1/2 inch wide, H500603 production wheel only, not serviced separately

2шт.

13

H319012

AXLE SHAFT

AXLE - front wheels

1шт.

15

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), , Outer 1/8" x 1"

1шт.

16

195-541

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

1шт.

14

132-54

COTTER PIN,1/8" x 1 3/4"

PIN, Split (Cotter), , Inner 1/8" x 1 3/4"

1шт.
