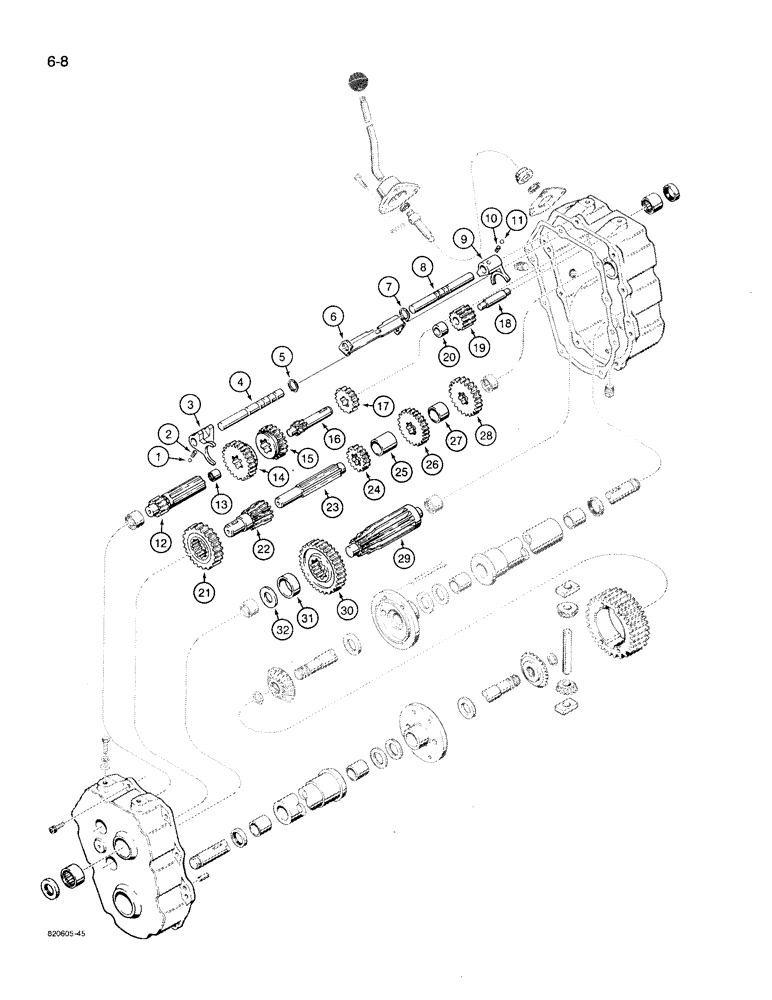

Запчасти Case TL100 (6-08) - TRANSAXLE, SHIFTING MECHANISM, GEARS AND SHAFTS (06) - POWER TRAIN

H612812

CENTER AXLE

TRANSAXLE ASSEMBLY - trencher, also Includes Refs. 1 - 36 on Figure 6-6

1шт.

1

211-5

BALL,3/16" Dia

- 3/16 inch, grade 200, chrome alloy steel

1шт.

2

N9288

SPRING

- ball

1шт.

3

N9289

SHIFTER FORK

FORK - shift, right-hand

1шт.

4

N9290

ROD

- shift, right-hand

1шт.

5

A11538

SNAP RING,#50, Ext

Ring, Snap, , shift rod #50, Ext

1шт.

6

N9300

STOP

- shift forks

1шт.

7

A11538

SNAP RING,#50, Ext

Ring, Snap, , shift rod #50, Ext

1шт.

8

N9291

ROD

- shift, left-hand

1шт.

9

N9289

SHIFTER FORK

FORK - shift, left-hand

1шт.

10

N9288

SPRING

- ball

1шт.

11

211-5

BALL,3/16" Dia

- 3/16 inch, grade 200, chrome alloy steel

1шт.

N9297

SHAFT

ASSEMBLY - pinion, with bearing, Includes: Ref. 12 and 13

1шт.

12

NSS

NOT SOLD SEPARAT

SHAFT - pinion, transaxle

1шт.

13

A27287

NEEDLE BEARING,0.439" ID x 0.6245" OD x 0.5"

BEARING - needle, inner

1шт.

14

N9304

GEAR

- shifting, right-hand

1шт.

15

N9303

GEAR

- shifting, left-hand

1шт.

16

N9308

SHAFT

- input, transaxle

1шт.

17

N9309

GEAR

- spur, input shaft

1шт.

18

N9385

SHAFT

- idler gear

1шт.

19

N9352

FRONT IDLER

GEAR - idler, reverse

1шт.

20

N9386

SPACER

- idler gear

1шт.

21

N9298

GEAR, IDLER

GEAR - idler, transaxle

1шт.

22

N9296

PINION

- idler shaft, with bushing

1шт.

23

N9299

SHAFT

- idler, transaxle

1шт.

24

N9307

GEAR

- 16 teeth

1шт.

25

N9384

SPACER

- gear

1шт.

26

N9306

SPUR

GEAR - 22 teeth

1шт.

27

N9383

SPACER

- gear

1шт.

28

N9305

GEAR

- 26 teeth

1шт.

29

N9343

PINION

- output

1шт.

30

N9342

GEAR

- input

1шт.

31

N9341

SPACER

- gear

1шт.

32

N9310

WASHER

- flat

1шт.
