Запчасти Case TL100 (6-06) - TRANSAXLE, SHIFT LEVER, HOUSING, DIFFERENTIAL, AND AXLES (06) - POWER TRAIN

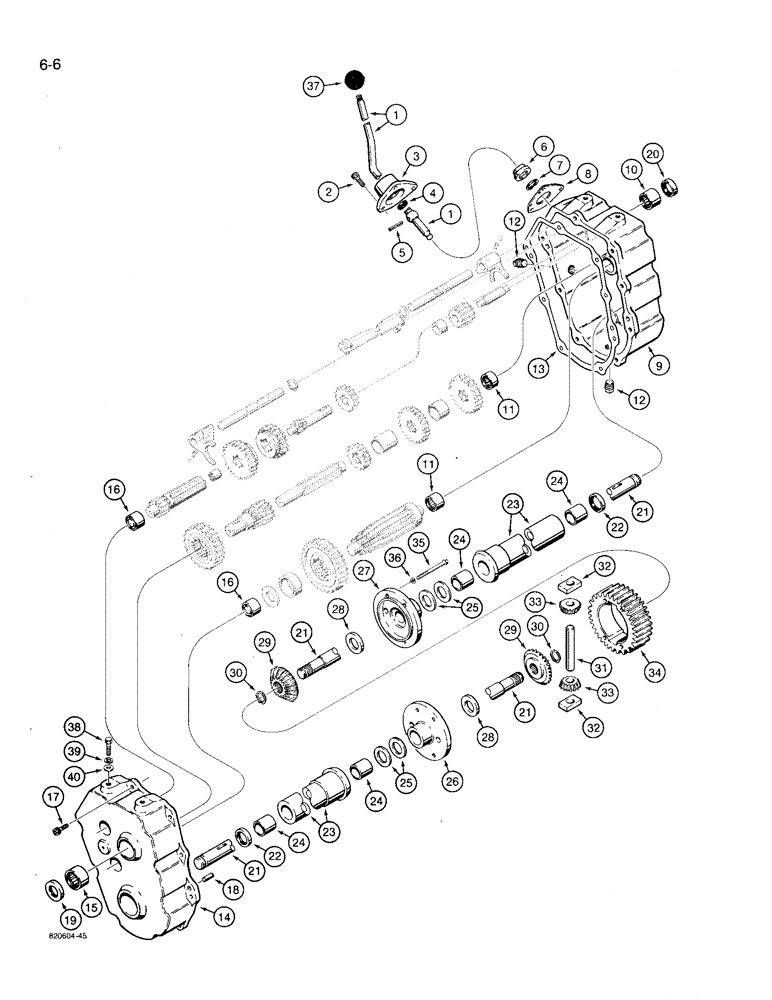

Схема запчастей Case TL100 - (6-06) - TRANSAXLE, SHIFT LEVER, HOUSING, DIFFERENTIAL, AND AXLES (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

H612812

CENTER AXLE

TRANSAXLE ASSEMBLY - trencher, Includes: Refs. 1-36 and also all Refs. on Figure 6-8

1шт.

1

H315358

LEVER

- shift, transaxle

1шт.

2

61-32512

HEX SOC SCREW,1/4 - 20 x 3/4"

SCREW, Hex Soc Hd, 1/4"-20 x 3/4"

3шт.

3

N9286

HOUSING

- shift lever

1шт.

4

A35012

ARM

- quad, shift lever

1шт.

5

N9279

PIN

- drive, shift lever

1шт.

6

N9287

CLAMP

KEEPER - shift lever

1шт.

7

A32181

SNAP RING,1.375", Int, #137

Ring, Snap, , shift lever 1.375", Int, #137

1шт.

8

N9302

GASKET

- shift lever housing

1шт.

H615955

CASE ASSY.

HOUSING ASSEMBLY - transaxle, Includes: Ref. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

HOUSING - transaxle

1шт.

10

N9350

ROLLER BEARING

BEARING - roller, input shaft

1шт.

11

H433371

NEEDLE BEARING

BEARING - roller, idler and pinion output shafts

2шт.

12

221-1013

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - square, 3/8 inch PT

2шт.

13

N9301

GASKET

-, Serial Range: housing-cover

1шт.

N9346

COVER

ASSEMBLY - transaxle, Includes: Ref. 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

COVER - transaxle

1шт.

15

A14858

NEEDLE BEARING,Needle, 28.56mm ID x 34.94mm OD x 19.05mm W

BEARING - roller, output shaft

1шт.

16

H433371

NEEDLE BEARING

BEARING - roller, cover

2шт.

17

61-32512

HEX SOC SCREW,1/4 - 20 x 3/4"

SCREW, Hex Soc Hd, 1/4"-20 x 3/4"

8шт.

18

F53650

PIN

- dowel, Serial Range: housing-cover

2шт.

19

N9344

OIL SEAL

SEAL - output shaft

1шт.

20

G10450

OIL SEAL,19.05mm ID x 31.85mm OD x 6.35mm Thk

- input shaft

1шт.

21

H315366

SHAFT

AXLE - right-hand and left-hand

2шт.

22

N9344

OIL SEAL

SEAL - axle

2шт.

N9345

HOUSING

ASSEMBLY - axle, Includes: Ref. 23 and 24

2шт.

23

NSS

NOT SOLD SEPARAT

HOUSING - axle

1шт.

24

N9347

BUSHING

- axle housing

2шт.

25

N9292

WASHER, THRUST

WASHER - thrust, carrier

1шт.

26

N9354

FLANGE

CARRIER - cover side

1шт.

27

N9353

CARRIER

- housing side

1шт.

28

H296756

WASHER

- thrust, bevel gear

2шт.

29

N9348

GEAR, BEVEL

GEAR - bevel, differential

2шт.

30

N9349

RING, SNAP

RING - snap, bevel gear

2шт.

31

N9293

PIN

SHAFT - pinion gears

1шт.

32

N9294

BLOCK

- drive, shaft ends

2шт.

33

N9295

GEAR-SET

GEAR - pinion, differential

2шт.

34

H296061

RING

GEAR - ring, differential

1шт.

35

113-15

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

- hex, 1/4 NC x 2-1/4 inch

4шт.

36

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

37

H152207

BALL KNOB

KNOB - gear shift lever

1шт.

38

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

39

492-11038

LOCK WASHER,3/8"

4шт.

40

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

Выбрано товаров: 44
