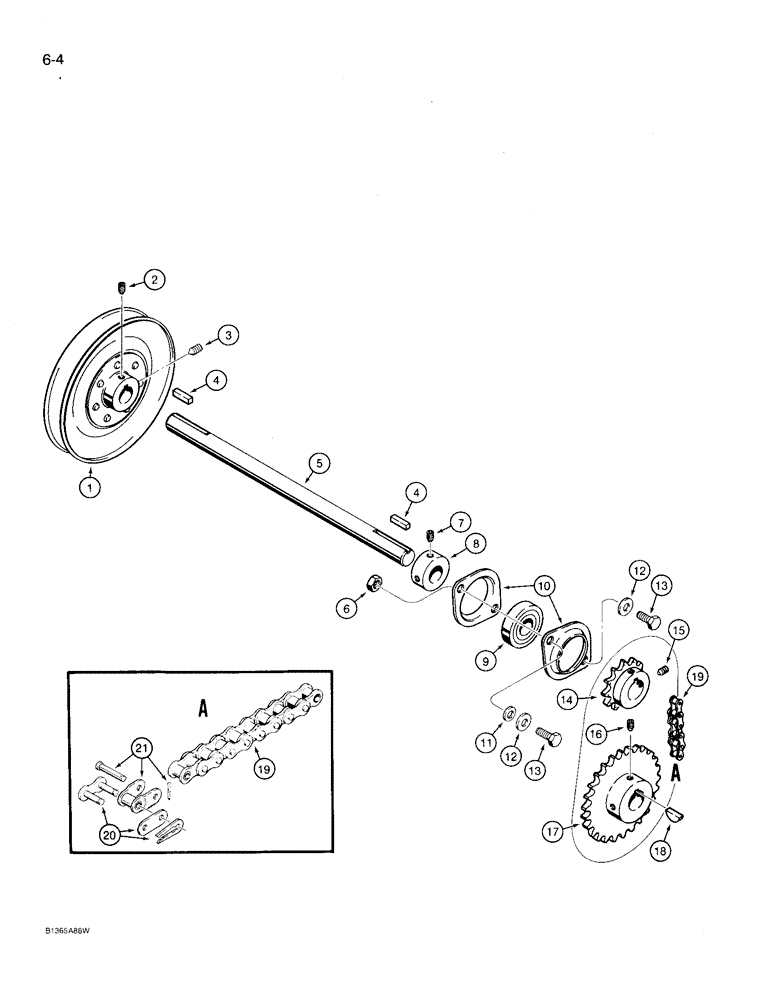

Запчасти Case TL100 (6-04) - TRANSPORT DRIVE (06) - POWER TRAIN

1

H310060

SHEAVE

- transport drive jackshaft, Includes: Ref. 2 and 3

1шт.

2

83-56

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - set, hex socket headless, 5/16 NC x 3/8 inch, cup point

1шт.

3

178-40

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - set, hex socket headless, 5/16 NC x 3/8 inch, cone point

1шт.

4

H233346

KEY

- square section, 3/16 x 7/8 inch

1шт.

5

H310086

SHAFT

JACKSHAFT - transport clutch

1шт.

6

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16 inch NC

4шт.

7

178-24

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set, hex socket headless, 1/4 NC x 1/4 inch, cone point

2шт.

R36380

BALL BEARING,19.05 mm ID x 47 mm OD x 15, 30.96 mm

BEARING ASSEMBLY - ball, with collar, jackshaft, Includes: Ref. 8 and 9

2шт.

8

NSS

NOT SOLD SEPARAT

COLLAR - lock

1шт.

9

NSS

NOT SOLD SEPARAT

BEARING - ball, jackshaft

1шт.

10

F13360

FLANGE

- ball bearing

4шт.

11

H426775

WASHER

- flat, 5/16 inch bolt, hardened

4шт.

12

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

13

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

14

H310128

DRIVE SPROCKET

SPROCKET - transport drive jackshaft

1шт.

15

125735

SET SCREW,Hex Skt, 1/4"-20 x 3/8"

Cup point Hex Soc, 1/4"-20 x 3/8"

2шт.

16

125735

SET SCREW,Hex Skt, 1/4"-20 x 3/8"

Cup point Hex Soc, 1/4"-20 x 3/8"

2шт.

17

H310219

SPROCKET ASSY.

SPROCKET - at right-hand side of transaxle

1шт.

18

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

(No. 606) #9, 3/16" x 3/4", HT

1шт.

19

H757336

CHAIN (AG)

CHAIN - roller, No. 40, transport drive, Includes: Ref. 20 and 21

1шт.

20

B12501

LINK

- connecting, H757336 chain

1шт.

21

B12502

OFFSET LINK

LINK - offset, H757336 chain

1шт.
