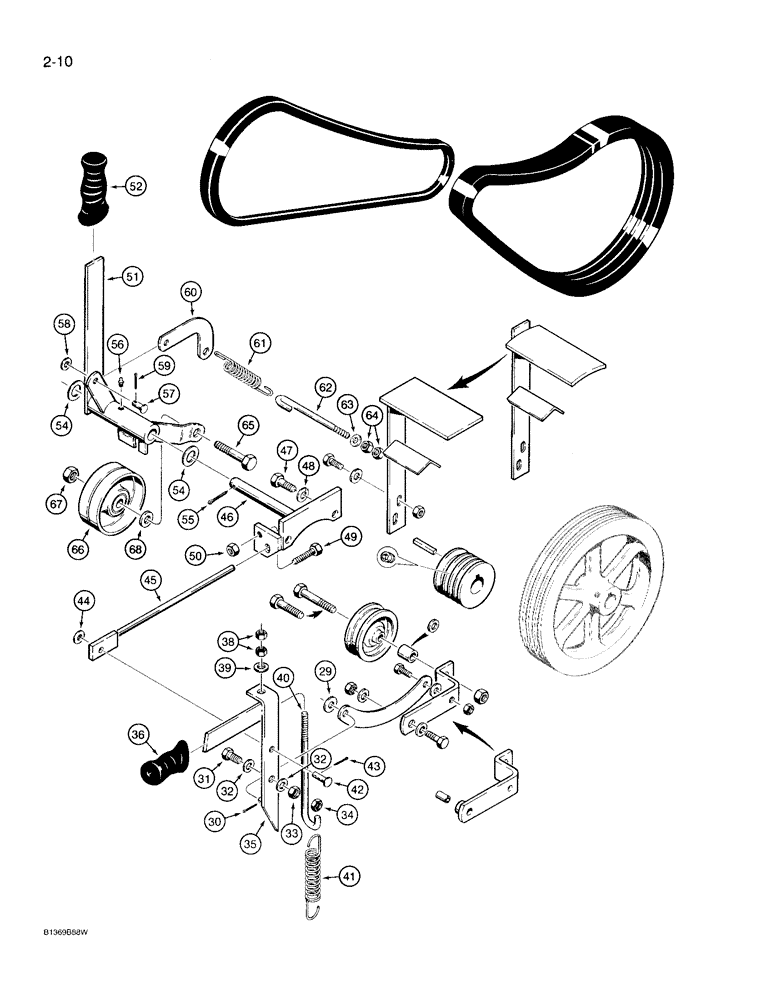

Запчасти Case TL100 (2-10) - ENGINE SHEAVE, BELTS, AND CLUTCHES (02) - ENGINE

29

195-521

WASHER,5/16", SAE

- flat, 11/32 x 11/16 x 1/16 inch

1шт.

30

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

31

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

32

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

33

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

1шт.

34

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

35

H621979

HANDLE

LEVER - control, transport clutch

1шт.

36

H33332

GRIP

- control lever

1шт.

37

H346494

ADHESIVE

- grip, 5 oz. tube, 3M847, not shown

1шт.

38

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

39

195-521

WASHER,5/16", SAE

- flat, 11/32 x 11/16 x 1/16 inch

1шт.

40

H43208

BOLT

J-BOLT - adjustment, transport clutch

1шт.

41

H43216

VALVE SPRING

SPRING - clutch adjustment J-bolt

1шт.

42

H64824

CLEVIS PIN

PIN - clevis, 5/16 x 3/4 inch

1шт.

43

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

44

195-521

WASHER,5/16", SAE

- flat, 11/32 x 11/16 x 1/16 inch

1шт.

45

H631929

STOP

ROD - stop

1шт.

46

H617662

MOUNTING PARTS

MOUNT - digging clutch control lever

1шт.

47

113-311

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

2шт.

48

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

49

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch, stop adjustment

1шт.

50

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

51

H617647

LEVER

- control, digging clutch, models with Wisconsin engine

1шт.

51

H619601

LEVER

- control, digging clutch, models with Kohler engine

1шт.

52

H33332

GRIP

- control lever

1шт.

53

H346494

ADHESIVE

- grip, 5 oz. tube, 3M847, not shown

1шт.

54

H738815

WASHER

- flat, one each side of control lever

2шт.

55

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

56

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

57

H64824

CLEVIS PIN

PIN - clevis, 5/16 x 3/4 inch

1шт.

58

195-521

WASHER,5/16", SAE

- flat, 11/32 x 11/16 x 1/16 inch

1шт.

59

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

60

H319293

LUG

LINK - digging clutch, over center

1шт.

61

H43216

VALVE SPRING

SPRING - clutch adjustment link

1шт.

62

H318923

BOLT

J-BOLT - digging clutch adjustment

1шт.

63

195-521

WASHER,5/16", SAE

- flat, 11/32 x 11/16 x 1/16 inch

1шт.

64

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

65

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

1шт.

66

H672381

PULLEY

SHEAVE - idler, digging clutch

1шт.

67

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

1шт.

68

H274894

WASHER

- flat, special

1шт.
