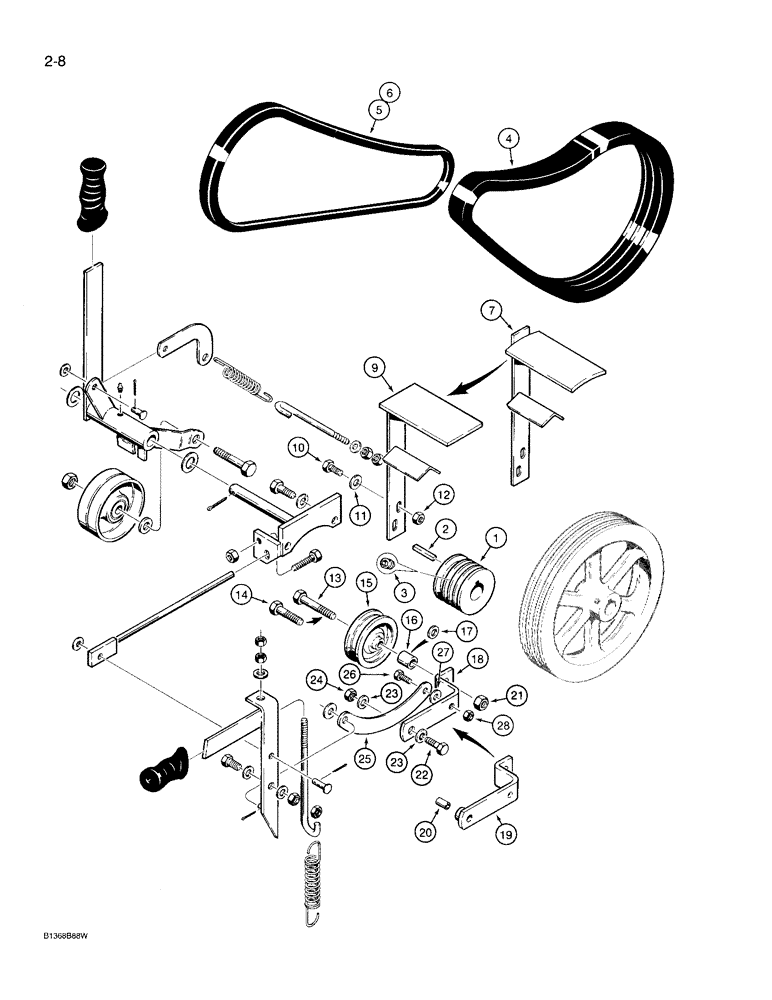

Запчасти Case TL100 (2-08) - ENGINE SHEAVE, BELTS, AND CLUTCHES (02) - ENGINE

1

H331777

SHEAVE

- engine

1шт.

2

H33290

KEY

- square, 1/4 x 2-1/4 inch

1шт.

3

125735

SET SCREW,Hex Skt, 1/4"-20 x 3/8"

Cup point, Engine sheave Hex Soc, 1/4"-20 x 3/8"

2шт.

4

H225557

V-BELT,28.90 mm W x 1181.10 mm L, 3 Ribs

Digging Drive, Wide 28.90 mm W x 1181.10 mm L, 3 Ribs

1шт.

5

H434143

V-BELT,12.70 mm W x 864.00 mm L

Transport Drive, Models with Wisconsin Engine 12.70 mm W x 864.00 mm L

1шт.

6

H434144

V-BELT,12.70 mm W x 877.00 mm L

Transport Drive, Models with Kohler Engine 12.70 mm W x 877.00 mm L

1шт.

7

H624494

RETAINER

- belt, models with Wisconsin engine

1шт.

9

H665984

RETAINER

- belt, models with Kohler engine

1шт.

10

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

11

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

12

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

2шт.

13

113-351

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

Used with Ref. 16 on some machines Hex, 7/16"-14 x 2 3/4", G5

1шт.

14

113-350

BOLT,Hex, 7/16" - 14 x 2", Gr 5

- hex, 7/16 NC x 2 inch, used with Ref. 17 on on some machines

1шт.

15

H43455

SHEAVE

- idler, transport clutch

1шт.

16

H317818

SPACER

- idler sheave, used with Ref. 13 on some machines

1шт.

17

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16"), Used as spacer, Idler sheave, used with Ref. 14 on some machines 7/16", SAE

1шт.

18

H329045

LEVER

- transport clutch, models with Wisconsin engine

1шт.

18

H329037

LEVER

- transport clutch, used prior to SN 1136988 on models with Kohler manual start engine, and prior to SN 1136990 on models with Kohler electric start engine

1шт.

19

H637686

LEVER

- transport clutch, used on SN 1136988 and after on models with Kohler manual start engine, and on SN 1136990 and after on models with Kohler electric start engine

1шт.

20

H366534

BUSHING

- spacer, used with H637686 lever (Ref. 19) only

1шт.

21

131-1129

LOCK NUT,7/16"-14, GA

NUT - hex, self-locking, 7/16 inch NC

1шт.

22

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

1шт.

23

195-521

WASHER,5/16", SAE

- flat, 11/32 x 11/16 x 1/16 inch

2шт.

24

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16 inch NC

1шт.

25

H329052

LINK

- transport clutch, used on all models with Wisconsin engine, prior to SN 1136988 on models with Kohler manual start engine, and prior to SN 1136990 on models with Kohler electric start engine

1шт.

25

H366575

LINK

- transport clutch, used on SN 1136988 and after on models with Kohler manual start engine, and on SN 1136990 and after on models with Kohler electric start engine

1шт.

26

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

27

195-521

WASHER,5/16", SAE

- flat, 11/32 x 11/16 x 1/16 inch

1шт.

28

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16 inch NC

1шт.
