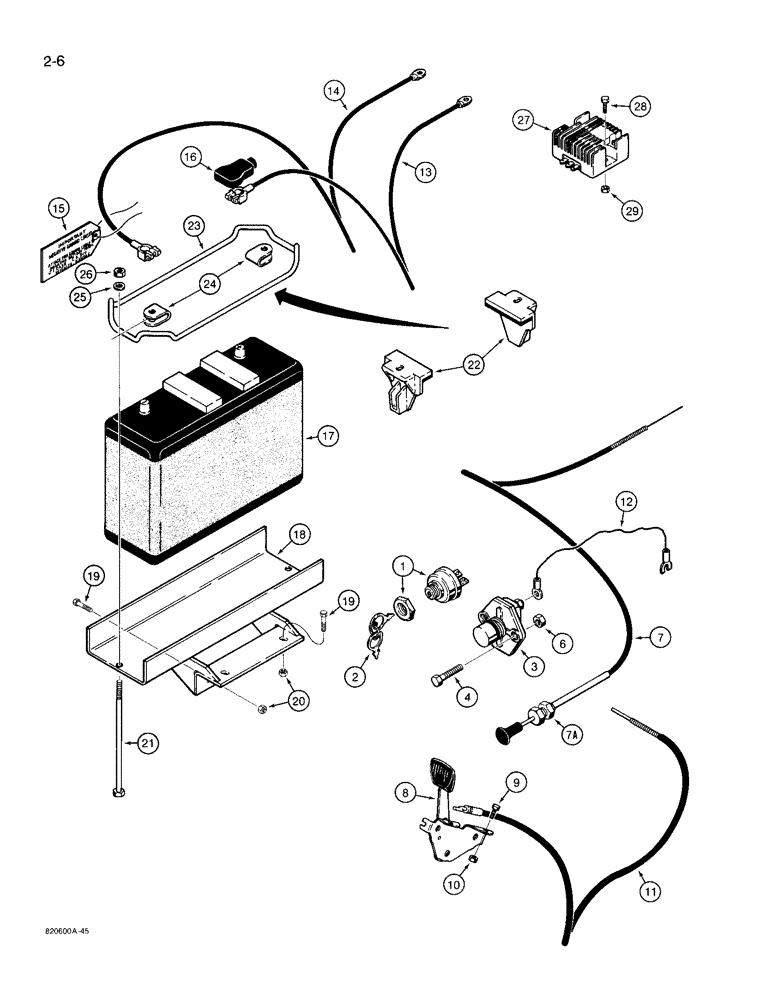

Запчасти Case TL100 (2-06) - ENGINE CONTROLS AND ELECTRICAL PARTS (02) - ENGINE

1

H71498

SWITCH

Key, includes two keys, Includes: Ref. 2

1шт.

2

A24509

KEY

KEY - ignition start, Set of 2

1шт.

3

H35048

IGNITION SWITCH

Push button, if used

1шт.

4

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

5

H297432

SPACER

Bolt, no longer used, not shown

2шт.

6

131-1180

LOCK NUT,1/4"-20, GA

2шт.

7

H501916

CABLE

ASSEMBLY - choke control, Wisconsin engine, Includes: Ref. 7A

1шт.

7

H329698

CHOKE

CABLE ASSEMBLY - choke control, Kohler engine, Includes: Ref. 7A

1шт.

7a

86585245

SPECIAL NUT,JAM, 5/8" - 18

1шт.

8

H322529

CONTROL

LEVER, throttle

1шт.

9

163-32

SCREW,Hex, #10 - 24 x 1/2"

2шт.

10

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

2шт.

11

H323667

CABLE PULLING GRIP

Throttle, for Wisconsin engine

1шт.

11

H323675

CABLE PULLING GRIP

Throttle, for Kohler engine

1шт.

12

H256990

CABLE PULLING GRIP

WIRE - starter switch to starter on Wisconsin electric start engine

1шт.

12

H185280

CABLE PULLING GRIP

SPARE PART WIRE - starter switch to starter on Kohler electric start engine

1шт.

13

H30973

CABLE

Battery, positive, models with Wisconsin electric start engine

1шт.

13

H167726

CABLE PULLING GRIP

Battery, positive, models with Kohler electric start engine

1шт.

14

H116996

CABLE PULLING GRIP

Battery, negative, ground

1шт.

15

H198457

TAG

Ground cable, tie to ground cable

1шт.

16

H102681

COVER ASSY

Battery terminal, positive

1шт.

17

REF

INSTRUCTION

BATTERY - 12 volt, group No. 53K36, buy locally

1шт.

18

H624908

ANGLE

CARRIER - battery

1шт.

19

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

20

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

4шт.

21

413-6128

BOLT,Hex, 3/8" - 16 x 8", Gr 5

2шт.

22

H322537

BATTERY BOX

SPARE PART BRACKET - battery hold down, edge type, no longer used, order Ref. 23

2шт.

23

H367367

CLAMP BRACKET

SPARE PART Battery hold down, Includes: Ref. 24

1шт.

24

H368050

CLIP

Bracket

2шт.

25

195-525

WASHER,3/8", SAE

(13/32 x 13/16 x 1/16")

2шт.

26

230-4216

LOCK NUT,3/8"-16, GA

2шт.

27

REF

INSTRUCTION

REGULATOR - voltage, models with Kohler electric start engine only

1шт.

28

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

29

131-1180

LOCK NUT,1/4"-20, GA

2шт.

30

H324038

KIT

Wire, key switch to engine, models with Wisconsin manual start engine, not shown

1шт.

30

H319426

HARNESS

SPARE PART KIT - wire, key switch to engine, models with Wisconsin electric start engine, not shown

1шт.

30

H325019

KIT

Wire, key switch to engine, models with Kohler manual start engine, not shown

1шт.

30

H325001

HARNESS

SPARE PART KIT - wire, key switch to engine, models with Kohler electric start engine, not shown

1шт.
