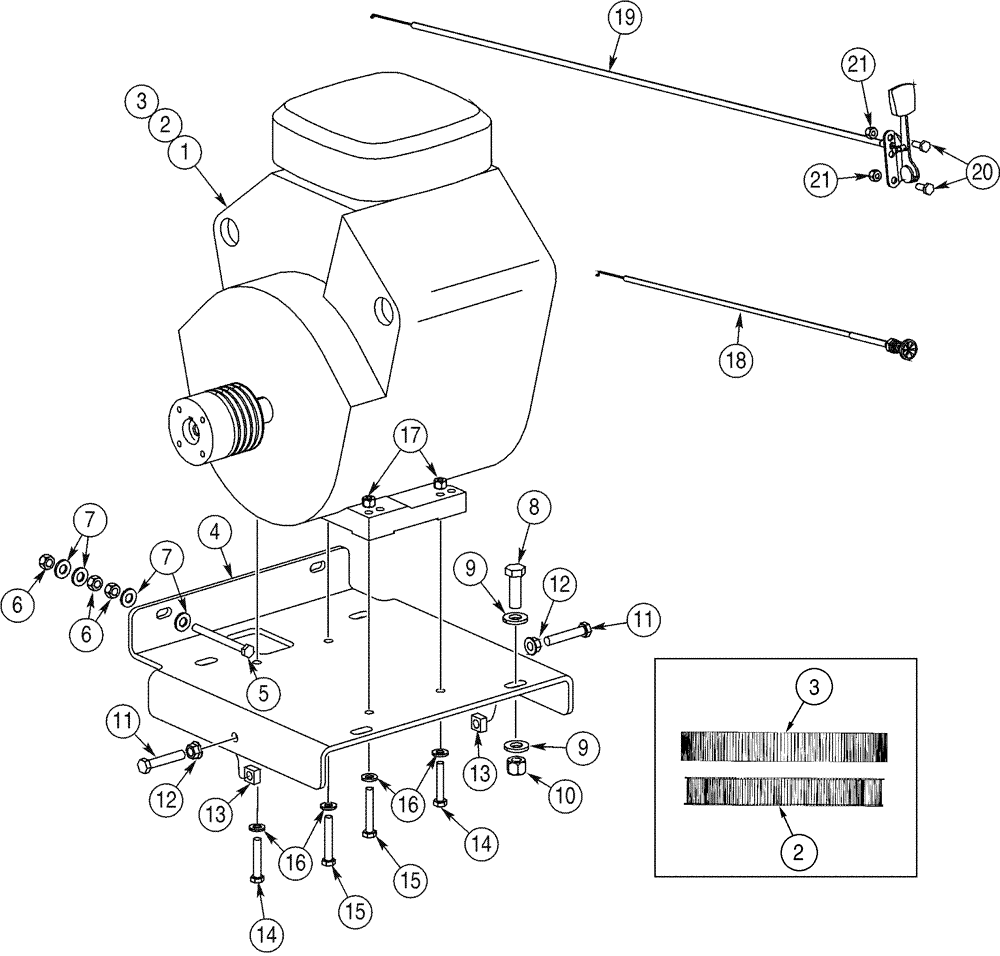

Запчасти Case TF300B (02-01) - ENGINE AND AIR CLEANER MOUNTING, ENGINE (02) - ENGINE

1

403124A1

ENGINE ASSEMBLY

ENGINE ASSY , Includes 2,3

1шт.

2

416419A1

AIR CLEANER

Air Cleaner

1шт.

3

416420A1

AIR CLEANER

Precleaner

1шт.

4

435029A1

PLATE

Engine Mounting

1шт.

5

H131490

BOLT

5/16 x 3.5; 5

2шт.

6

425-116

NUT,3/8" - 24, Gr 5

6шт.

7

496-21041

WASHER,13/32" x 13/16" x .089", HDN

8шт.

8

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

9

496-21053

WASHER,17/32" x 1 1/16" x .134"

8шт.

10

232-4118

NUT,1/2"-13, GC

4шт.

11

113-2296

BOLT,Hex, 3/8" - 16 x 2", Gr 5, Full Thd

2шт.

12

231-5146

FLANGE NUT,3/8"-16

2шт.

13

84899

SQUARE NUT,Sq, 3/8"-16, G2

2шт.

14

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

15

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

16

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

4шт.

17

232-4115

LOCK NUT,5/16"-18, GC

4шт.

18

416045A1

CONTROL

1шт.

19

416046A1

CONTROL

1шт.

20

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

2шт.

21

230-4214

LOCK NUT,1/4"-20, GA

2шт.

22

416409A1

FILTER, ENGINE OIL

FILTER, OIL , Engine, Not Illustrated

1шт.

Note:The Spark Plug should be sourced locally. Use Champion RC14YC or equivalent.

1шт.

S’approvisionner localement en bougies. Utiliser les bougies Champion RC14YC ou un modèle équivalent.

1шт.

La bujía debe conseguirse localmente. Usar la bujía Champion RC14YC o una equivalente.

1шт.
