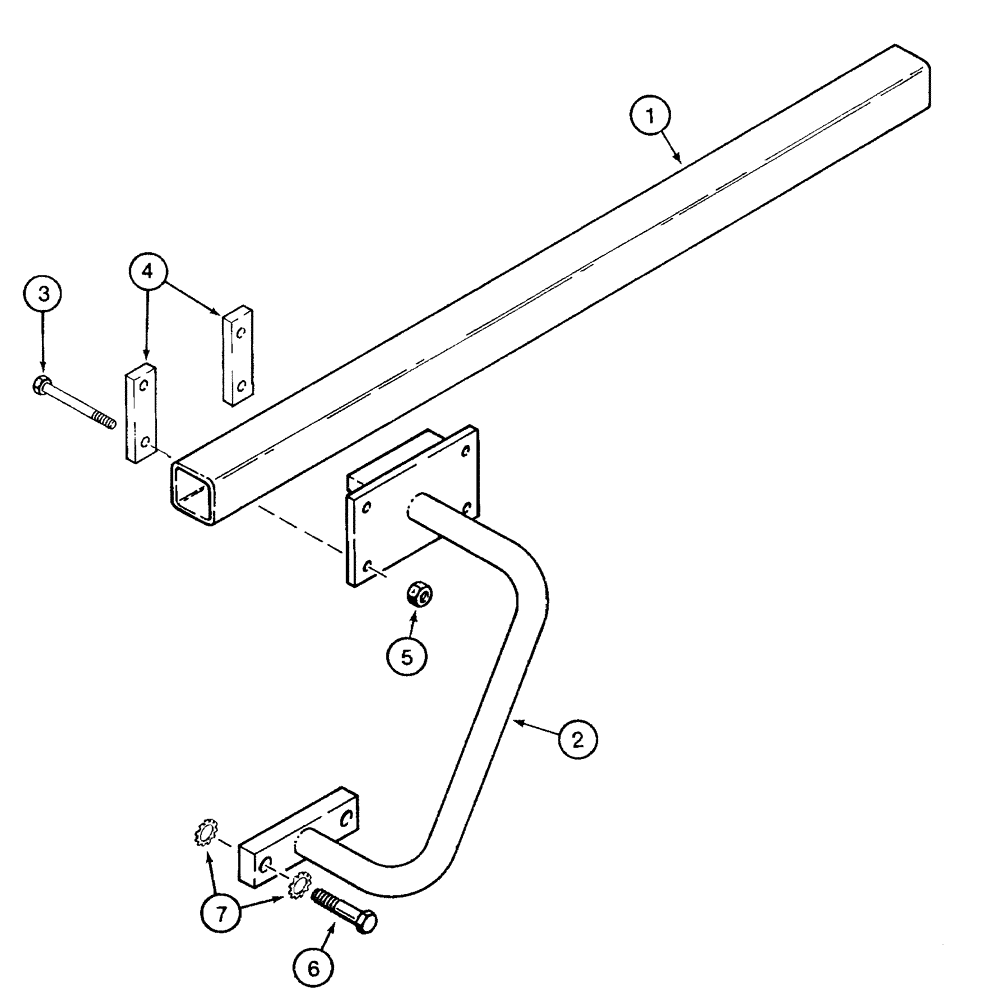

Запчасти Case TF300B (09-28) - GUARD DIGGING CHAIN (09) - CHASSIS/ATTACHMENTS

Models Without Crumber

1шт.

1

H672301

GUARD ASSY.

Digging Chain, Used With 36, 40, 45 or 48 Inch Boom

1шт.

1

H672300

SAFETY BELT

Digging Chain, Used With 54 And 66 Inch Boom

1шт.

2

H607986

ARM

1шт.

3

413-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

1/2 x 4-1/4

4шт.

4

H309450

SPACER

2шт.

5

230-4218

LOCK NUT,1/2"-13, GA

4шт.

6

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

3/4 x 2-3/4

2шт.

7

493-41078

LOCK WASHER,Ext Tooth, 3/4"

3/4

4шт.
