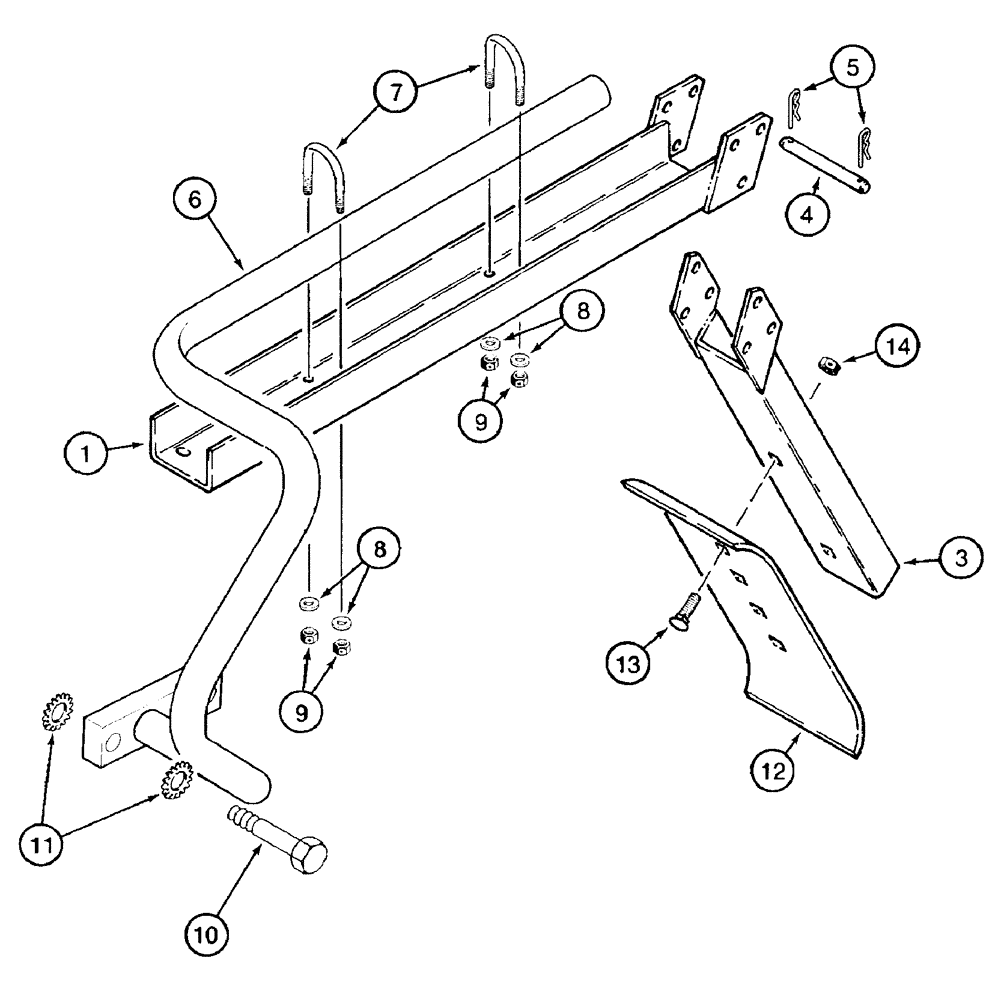

Запчасти Case TF300B (09-27) - CRUMBER BOOMS (09) - CHASSIS/ATTACHMENTS

Models With Flush Dig Attachment

1шт.

1

H502989

CHANNEL

737 mm (2-1/2 ft)

1шт.

3

H502997

CHANNEL

1шт.

4

H41731

AXLE PIN

2шт.

5

432-1216

COTTER PIN,3/16" x 1"

2шт.

6

H665216

GUIDE

Grab Handle

1шт.

7

H33316

U-BOLT

2шт.

8

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

9

230-4216

LOCK NUT,3/8"-16, GA

4шт.

10

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

3/4 x 2-3/4

2шт.

11

493-41078

LOCK WASHER,Ext Tooth, 3/4"

3/4

4шт.

12

H32813

BLADE

152 mm (6 in)

1шт.

12

H32821

BLADE

203 mm (8 in)

1шт.

12

H32839

BLADE

254 mm (10 in)

1шт.

12

H32847

BLADE

305 mm (12 in)

1шт.

13

411-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 2

2шт.

14

230-4218

LOCK NUT,1/2"-13, GA

2шт.
