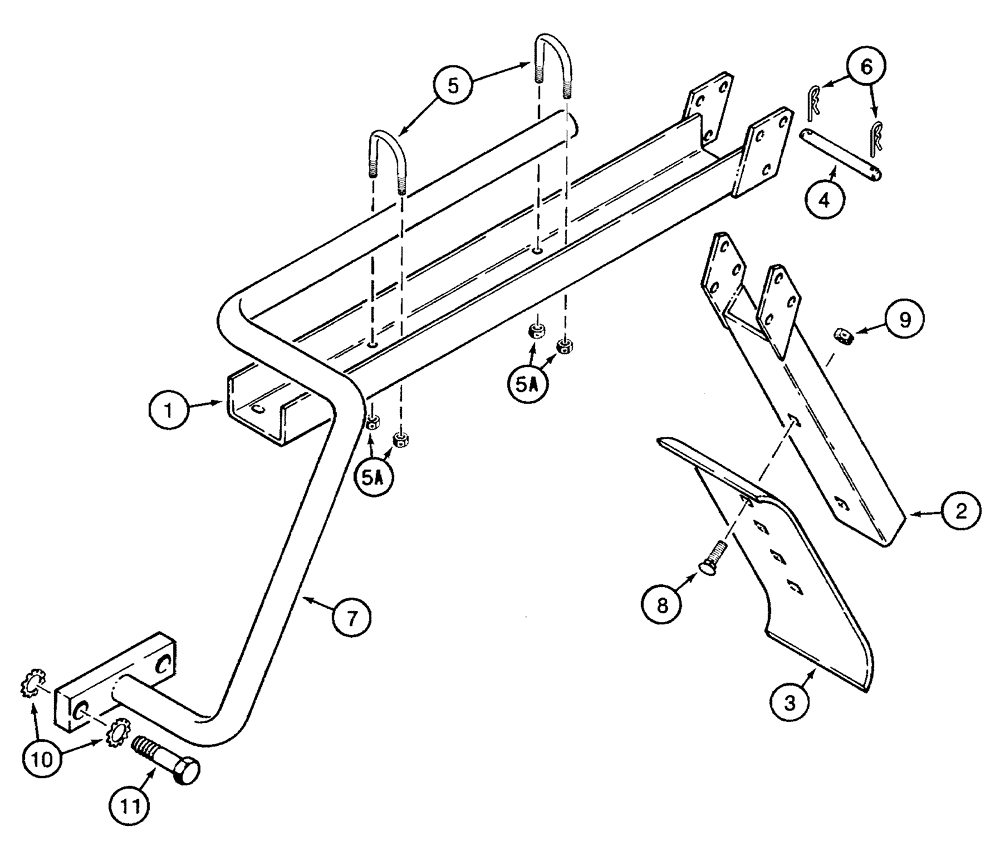

Запчасти Case TF300B (09-25) - CRUMBER BOOM AND ATTACHMENTS (09) - CHASSIS/ATTACHMENTS

Models Without Flush Dig Attachment

1шт.

1

H502989

CHANNEL

737 mm (2-1/2 ft)

1шт.

1

H650218

CHANNEL

1118 mm (3-1/2 ft)

1шт.

2

H502997

CHANNEL

1шт.

3

H32813

BLADE

152 mm (6 in)

1шт.

3

H32821

BLADE

203 mm (8 in)

1шт.

3

H32839

BLADE

254 mm (10 in)

1шт.

3

H32847

BLADE

305 mm (12 in)

1шт.

4

H41731

AXLE PIN

2шт.

5

H33316

U-BOLT

2шт.

5a

230-4216

LOCK NUT,3/8"-16, GA

4шт.

6

S120261

PIN

2шт.

7

H502971

BAR

Grab Handle

1шт.

8

411-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 2

2шт.

9

230-4218

LOCK NUT,1/2"-13, GA

2шт.

10

493-41078

LOCK WASHER,Ext Tooth, 3/4"

3/4

4шт.

11

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

3/4 x 2-3/4

2шт.
