Артикул
Название
Примечание
Количество

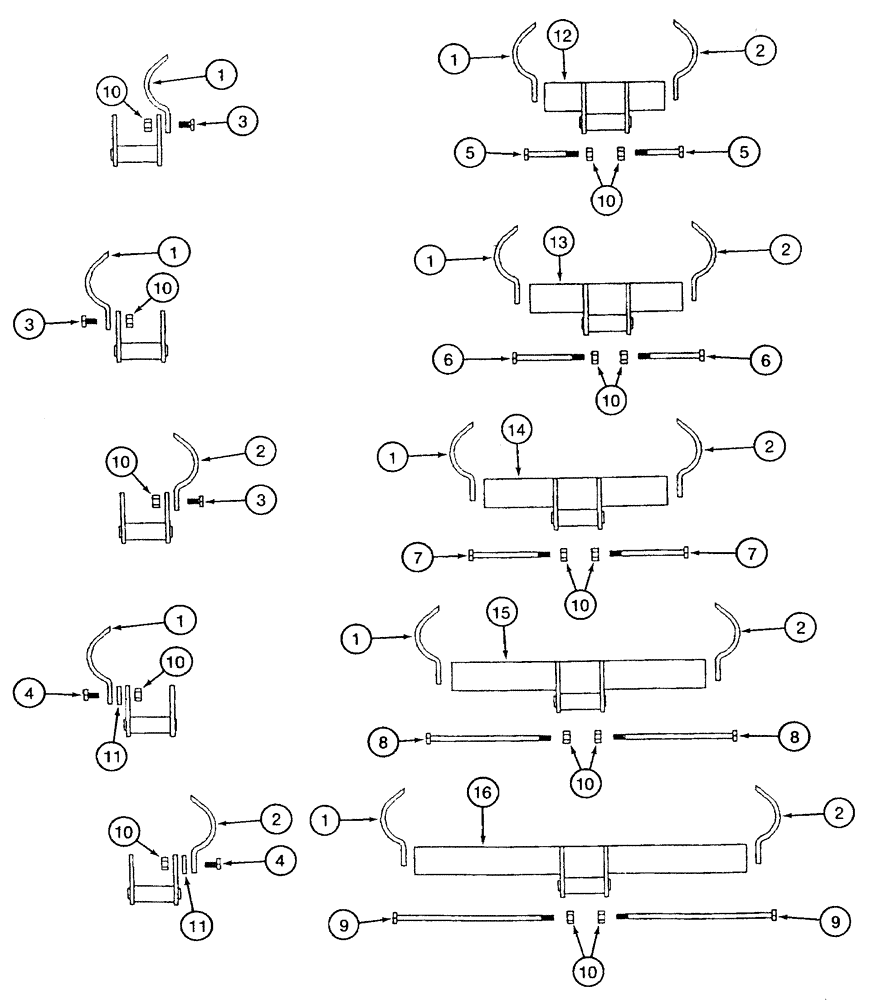

Standard Duty 164 Digging Chain
1шт.
8 Inch Through 16 Inch Digging Widths
1шт.
1
188750A1
TOOTH
Right Hand
1шт.
2
188749A1
TOOTH
Left Hand
1шт.
3
328-614
BOLT,Hex, 3/8" - 24 x 7/8", Gr 8
1шт.
4
328-620
BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 8
3/8 NF x 1-1/4; 8
1шт.
5
328-636
BOLT,Hex, 3/8" - 24 x 2-1/4", Gr 8
1шт.
6
328-648
BOLT,Hex, 3/8" - 24 x 3", Gr 8
1шт.
7
328-664
SCREW
3/8 NF x 4; 8
1шт.
8
328-680
3/8 NF x 5; 8
1шт.
9
328-696
3/8 NF x 6; 8
1шт.
10
232-4616
LOCK NUT,3/8"-24, GC
1шт.
11
H208355
SPACER
1шт.
12
H208439
BRACKET
203,2 mm (8 in)
1шт.
13
H208447
BRACKET
254 mm (10 in)
1шт.
14
H564781
BRACKET
304,8 mm (12 in)
1шт.
15
H564972
355,6 mm (14 in)
1шт.
16
H564994
404,4 mm (16 in)
1шт.
Cupped Teeth
1шт.
Not Illustrated
1шт.
17
ZB164082XX
2 Pitch, 8 Inch Digging Width
1шт.
17
ZB164084XX
4 Pitch, 8 Inch Digging Width
1шт.
17
ZB164102XX
2 Pitch, 10 Inch Digging Width
1шт.
17
ZB164104XX
4 Pitch, 10 Inch Digging Width
1шт.
Note:Refer to Publication PM-2071, Case Trencher Replacement Parts Catalog, to determine the last two digits of the chain assy part numbers. Chain assy must be ordered from Wholegoods.
1шт.
Nota : Consulter la Publication PM-2071, Catalogue de pièces de rechange pour la trancheuse Case, pour déterminer les deux derniers chiffres du numéro de pièce de la chaîne.
1шт.
Nota: Consultar la publicación PM-2071, catálogo de piezas de repuesto de la zanjadora Case para determinar los dos últimos dígitos de los números de pieza del conjunto de la cadena. El conjunto de la cadena debe pedirse a Wholegoods.
1шт.
17
ZB164122XX
2 Pitch, 12 Inch Digging Width
1шт.
17
ZB164124XX
4 Pitch, 12 Inch Digging Width
1шт.
17
ZB164142XX
2 Pitch, 14 Inch Digging Width
1шт.
17
ZB164144XX
4 Pitch, 14 Inch Digging Width
1шт.
17
ZB164162XX
2 Pitch, 16 Inch Digging Width
1шт.
17
ZB164164XX
16 Inch Digging Width, 4 Pitch
1шт.
Note:Refer to Publication PM-2071, Case Trencher Replacement Parts Catalog, to determine the last two digits of the chain assy part numbers. Chain assy must be ordered from Wholegoods.
1шт.
Nota : Consulter la Publication PM-2071, Catalogue de pièces de rechange pour la trancheuse Case, pour déterminer les deux derniers chiffres du numéro de pièce de la chaîne. La chaîne doit être commandée auprès de Wholegoods.
1шт.
Nota: Consultar la publicación PM-2071, catálogo de piezas de repuesto de la zanjadora Case para determinar los dos últimos dígitos de los números de pieza del conjunto de la cadena. El conjunto de la cadena debe pedirse a Wholegoods.
1шт.
