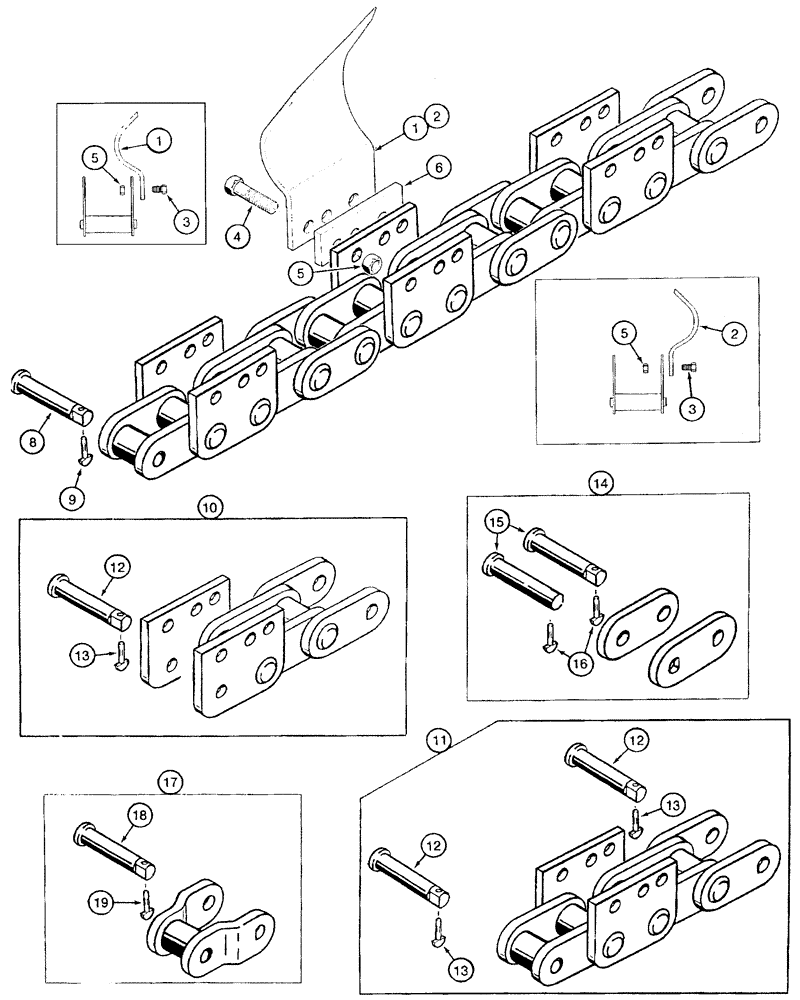

Запчасти Case TF300B (09-15) - CHAINS DIGGING TEETH (09) - CHASSIS/ATTACHMENTS

Standard Duty 164 Digging Chain

1шт.

6 Inch Digging Width

1шт.

1

188750A1

TOOTH

Right Hand

1шт.

2

188749A1

TOOTH

Left Hand

1шт.

3

328-614

BOLT,Hex, 3/8" - 24 x 7/8", Gr 8

1шт.

4

328-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 8

3/8 NF x 1-1/4; 8

1шт.

5

232-4616

LOCK NUT,3/8"-24, GC

1шт.

6

H208355

SPACER

1шт.

7

ZB164062XX

Cupped Teeth, 2 Pitch, Includes 8, 9

1шт.

7

ZB164064XX

Cupped Teeth, 4 Pitch, Includes 8, 9

1шт.

8

253214A1

PIN

1шт.

9

H85274

SPLIT PIN/SAFETY PIN

1шт.

10

H673238

CHAIN (AG)

2 Pitch, Includes 12, 13

1шт.

11

H564633

KIT

4 Pitch, Includes 12, 13

1шт.

12

H208454

AXLE PIN

2шт.

13

H85274

SPLIT PIN/SAFETY PIN

2шт.

14

H564815

DRAG LINK

1 Pitch, Includes 2 Links, Includes 15, 16

1шт.

15

H208454

AXLE PIN

2шт.

16

H85274

SPLIT PIN/SAFETY PIN

2шт.

17

H208462

DRAG LINK

1 Pitch, Includes 18, 19

1шт.

17

H59360

HALF-LINK

HALF LINK , 1 Pitch, Includes 18, 19

1шт.

18

H208454

AXLE PIN

1шт.

19

H85274

SPLIT PIN/SAFETY PIN

1шт.
