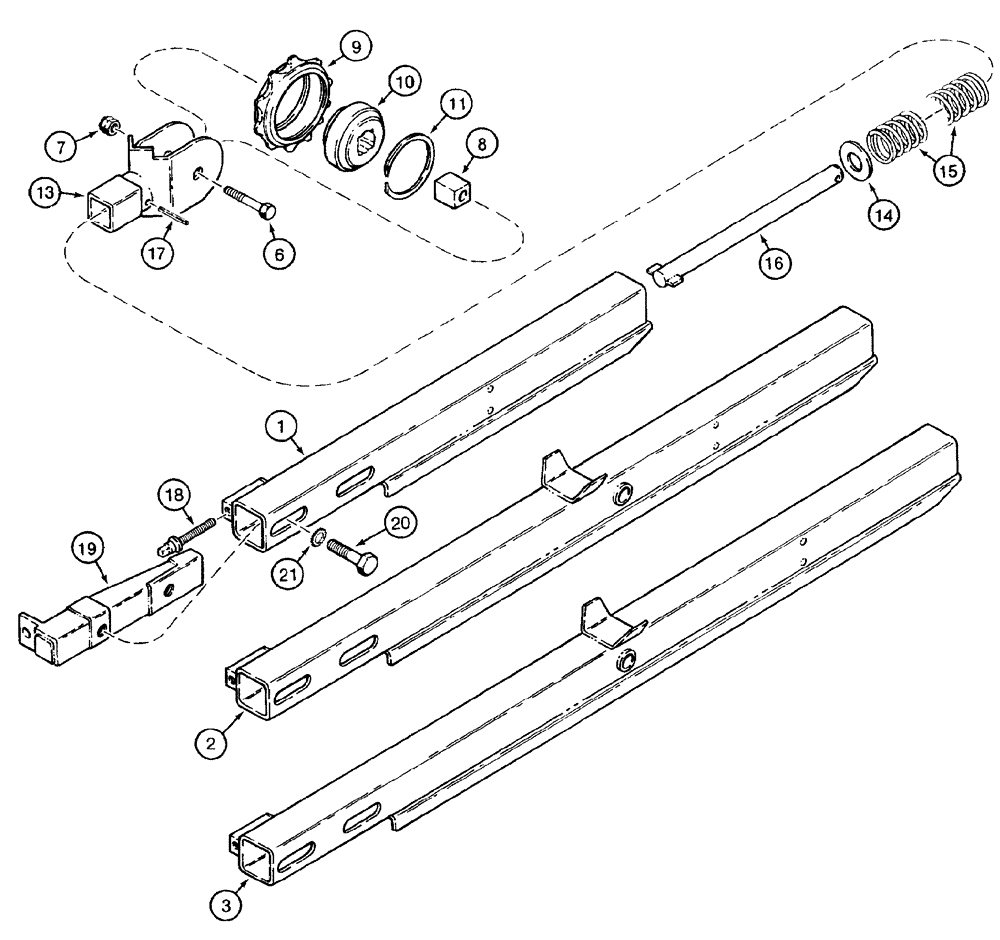

Запчасти Case TF300B (09-13) - TRENCHER BOOM MOUNTING (09) - CHASSIS/ATTACHMENTS

Channel

1шт.

1

H615559

BOOM

743 mm (29 in)

1шт.

2

H615492

BAR

1164 mm (46 in)

1шт.

3

H615419

BOOM

1326 mm (52 in)

1шт.

6

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

7

230-42110

LOCK NUT,5/8"-11, GA

5/8

1шт.

8

H232645

BUSHING

1шт.

9

H33563

DRIVE SPROCKET

1шт.

10

H747139

BALL BEARING

1шт.

11

H33837

RING

1шт.

13

H33829

BRACKET

1шт.

14

H34199

WASHER

1 x 2 x 5/8

1шт.

15

H56713

VALVE SPRING

1шт.

16

H509349

TUBE

1шт.

17

38-12432

LOCK PIN,3/8" x 2", Slotted

3/8" x 2", Slotted

1шт.

18

H33993

ADJUSTMENT SCREW,5/8" - 11 x 2 5/8"

Adjusting

1шт.

19

H326728

GUIDE

1шт.

20

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

3/4 x 2-3/4

2шт.

21

493-41078

LOCK WASHER,Ext Tooth, 3/4"

3/4

2шт.
