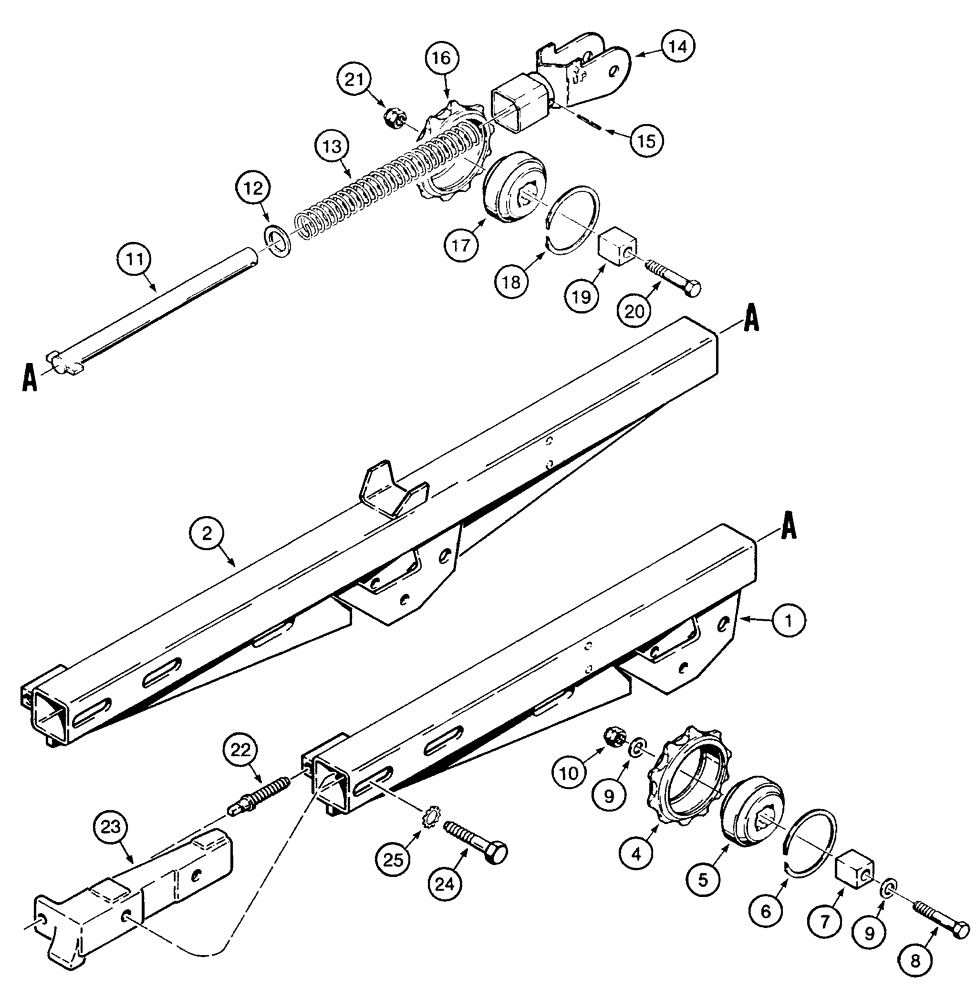

Запчасти Case TF300B (09-12) - TRENCHER BOOM MOUNTING (09) - CHASSIS/ATTACHMENTS

Sprocket

1шт.

1

H560565

BOOM

727 mm (29 in)

1шт.

2

H560573

BOOM

1157 mm (46 in)

1шт.

2

H560938

BOOM

1326 mm (52 in)

1шт.

4

H33563

DRIVE SPROCKET

1шт.

5

H747139

BALL BEARING

1шт.

6

H33837

RING

1шт.

7

H232645

BUSHING

1шт.

8

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

9

H350785

WASHER

2шт.

10

230-42110

LOCK NUT,5/8"-11, GA

5/8

1шт.

11

H509349

TUBE

1шт.

12

H34199

WASHER

1 x 2 x 5/8

1шт.

13

H56713

VALVE SPRING

1шт.

14

H33829

BRACKET

1шт.

15

38-12432

LOCK PIN,3/8" x 2", Slotted

3/8" x 2", Slotted

1шт.

16

H33563

DRIVE SPROCKET

1шт.

17

H747139

BALL BEARING

1шт.

18

H33837

RING

1шт.

19

H232645

BUSHING

1шт.

20

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

21

230-42110

LOCK NUT,5/8"-11, GA

5/8

1шт.

22

H33993

ADJUSTMENT SCREW,5/8" - 11 x 2 5/8"

Adjusting

1шт.

23

H93682

BOOM

1шт.

24

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

3/4 x 2-3/4

2шт.

25

493-41078

LOCK WASHER,Ext Tooth, 3/4"

3/4

2шт.
