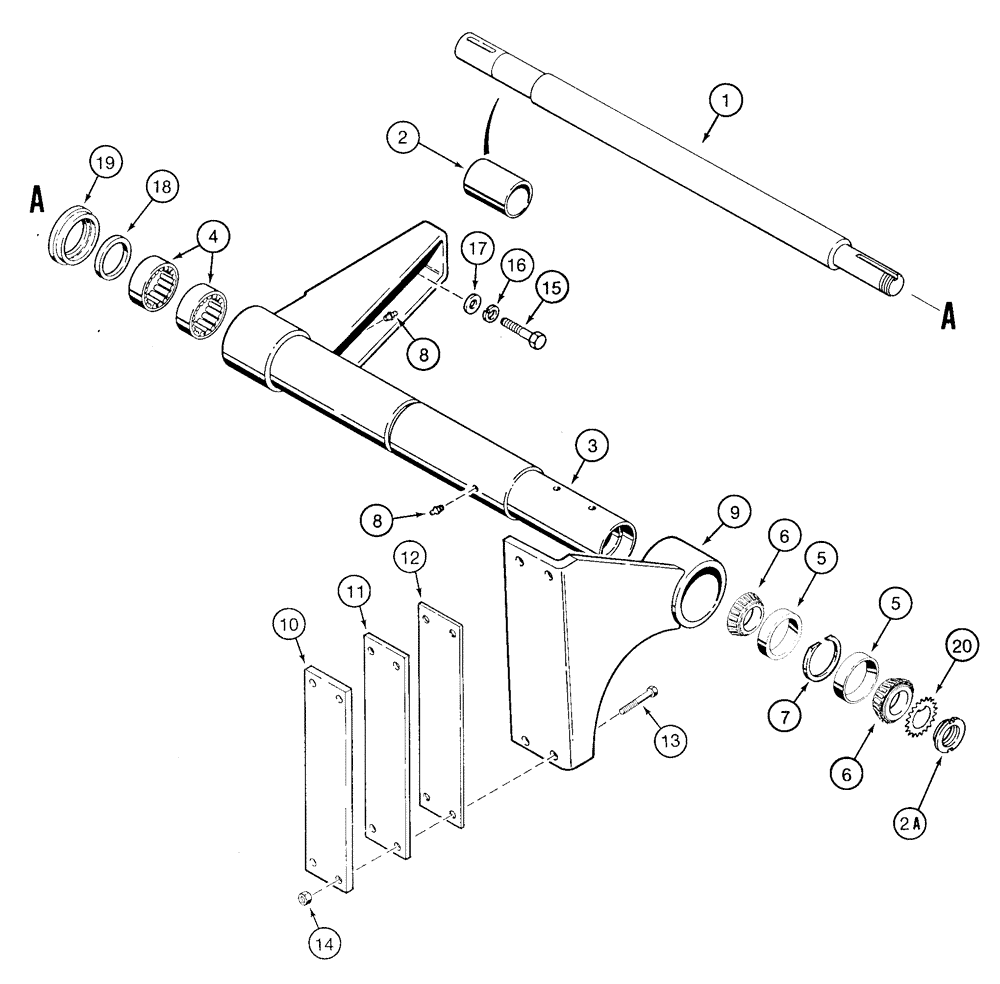

Запчасти Case TF300B (09-10) - FLUSH DIGGER BOOM MOUNTING AND SHAFT (09) - CHASSIS/ATTACHMENTS

H577064

SHAFT

Consists Of 1 - 2A

1шт.

1

NSS

NOT SOLD SEPARAT

Shaft

1шт.

2

H70789

SLEEVE CYLINDER

1шт.

2a

131-1034

BEARING LOCK NUT,Bearing, 1.1811" Bore

1шт.

197140A1

BOOM

Consists Of 3 - 8

1шт.

3

196942A1

BOOM

1шт.

4

H748111

NEEDLE BEARING,Needle, 50.8mm ID x 65.17mm OD x 25.4mm W

2шт.

5

651817R1

BEARING CUP

2шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

2шт.

7

H91025

RETAINER

1шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

9

H672551

SUPPORT

1шт.

10

H98715

SPACER

1шт.

11

H426726

SHIM,1.50mm Thk

1шт.

12

H426734

SHIM,2.65mm Thk

1шт.

13

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

14

230-4216

LOCK NUT,3/8"-16, GA

4шт.

15

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

2шт.

16

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

17

495-11081

WASHER,3/4", SAE

2шт.

18

H749085

SEAL

1шт.

19

H53546

SEAL

1шт.

20

55-1006

1шт.
