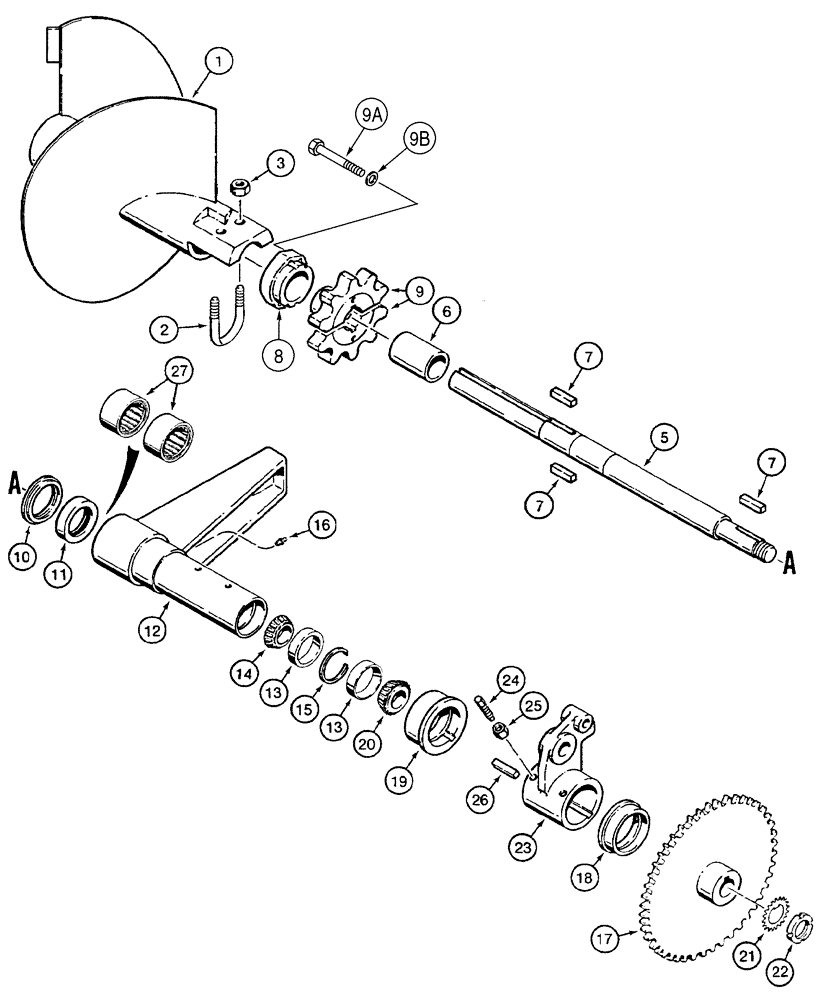

Запчасти Case TF300B (09-09) - TRENCHER BOOM MOUNTING SHAFT (09) - CHASSIS/ATTACHMENTS

1

H502526

AUGER

1шт.

2

H34439

U-BOLT

1шт.

3

230-4218

LOCK NUT,1/2"-13, GA

2шт.

H520411

SHAFT

Trencher Drive, Used On Models With 102 mm (4 in) through 305 mm (12 in) wide chainline, Consists Of 5, 6

1шт.

H529800

SHAFT

Trencher Drive, Used On Models With 356 mm (14 in) through 406 mm (16 in) wide chainline, Consists Of 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

Shaft

1шт.

6

H70789

SLEEVE CYLINDER

1шт.

7

H70045

KEY

3/8 x 1-3/4

3шт.

8

H69930

HUB CAP

1шт.

9

H69773

DRIVE SPROCKET

1шт.

9a

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

9b

492-11038

LOCK WASHER,3/8"

2шт.

10

H53546

SEAL

1шт.

11

H749085

SEAL

1шт.

H528455

SUPPORT ASSY.

Boom Mounting, Used On Models With 102 mm (4 in) through 305 mm (12 in) wide chainline, Consists Of 12 - 16

1шт.

H529859

CASTING

Boom Mounting, Used On Models With 356 mm (14 in) through 406 mm (16 in) wide chainline, Consists Of 12 - 16

1шт.

12

H110445

CASTING

Used With H528455

1шт.

12

H112318

PIVOT

Used With H529859

1шт.

13

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

2шт.

14

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

2шт.

15

H91025

RETAINER

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

17

H91041

DRIVE SPROCKET

1шт.

18

H28969

BUSHING

Right Hand

1шт.

19

H158576

BUSHING

Left Hand

1шт.

20

T17079

CUP

1шт.

21

192-306

LOCK WASHER,Type W-06

No. W-06

1шт.

22

154-1006

No. N-06

1шт.

23

H406504

CRANK

1шт.

24

H33746

SET SCREW,1/2" - 20 x 2 1/4"

2шт.

25

425-158

JAM NUT,Jam, 1/2"-20, G5

2шт.

26

H33290

KEY

1/4 x 2-1/4

1шт.

27

H748111

NEEDLE BEARING,Needle, 50.8mm ID x 65.17mm OD x 25.4mm W

2шт.
