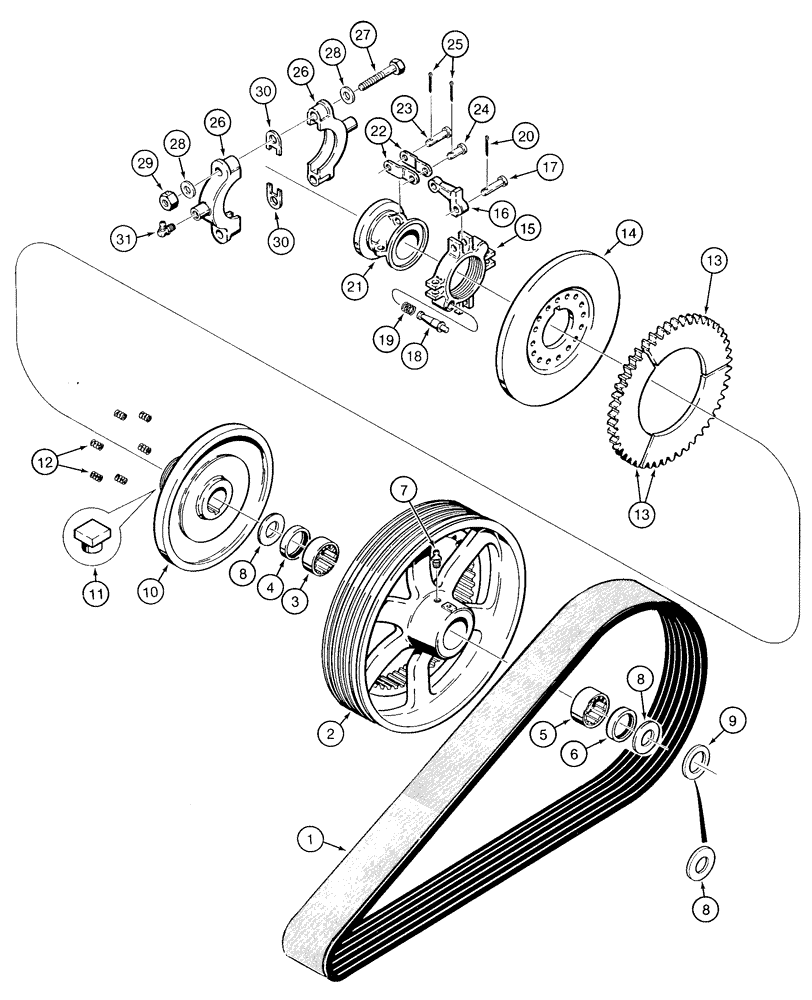

Запчасти Case TF300B (09-07) - DRIVE BELT AND CLUTCH (09) - CHASSIS/ATTACHMENTS

1

H208298

V-BELT,39.60 mm W x 1360.00 mm L, 5 Ribs

Drive

1шт.

H584995

SHEAVE

Consists Of 2 - 7

1шт.

2

H179614

SHEAVE

1шт.

3

H747998

NEEDLE BEARING

Clutch Side

1шт.

4

H749234

SEAL

Clutch Side

1шт.

5

H748178

NEEDLE BEARING

Jackshaft Side

1шт.

6

564808R91

WIPER

Jackshaft Side

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

8

H68015

WASHER

1шт.

9

H81760

WASHER

1шт.

H559054

CLUTCH ASSEMBLY

Consists Of 10 - 30, No Longer Available, Order Component Parts

1шт.

10

H559062

HUB CAP

1шт.

11

H111161

AXLE PIN

1шт.

12

H111260

VALVE SPRING

6шт.

13

N14252

PLATE

1шт.

14

H189050

PLATE ASSY.

1шт.

H529362

YOKE

UNIVERSAL JOINT YOKE , Consists Of 15 - 20

1шт.

15

NSS

NOT SOLD SEPARAT

Yoke

1шт.

16

H111179

LEVER

4шт.

17

H111187

AXLE PIN

4шт.

18

H111195

AXLE PIN

1шт.

19

A26944

VALVE SPRING

1шт.

20

A43382

PIN, SPLIT (COTTER)

PIN, COTTER , 1/8 x 1/2

4шт.

H529370

CLUTCH ASSEMBLY

Consists Of 21 - 30

1шт.

21

H142125

SLEEVE

1шт.

22

F11937

DRAG LINK

8шт.

23

H111229

AXLE PIN

4шт.

24

F11938

AXLE PIN

4шт.

25

A43382

PIN, SPLIT (COTTER)

PIN, COTTER , 1/8 x 1/2

8шт.

A31140

COLLAR

Consists Of 26 - 30

1шт.

26

NSS

NOT SOLD SEPARAT

Collar

2шт.

27

414-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

3/8 NF x 1-3/4

2шт.

28

D48341

WASHER

4шт.

29

230-4616

LOCK NUT,3/8"-24, GA

3/8 NF

2шт.

30

NSS

NOT SOLD SEPARAT

Spacer

1шт.

31

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.
