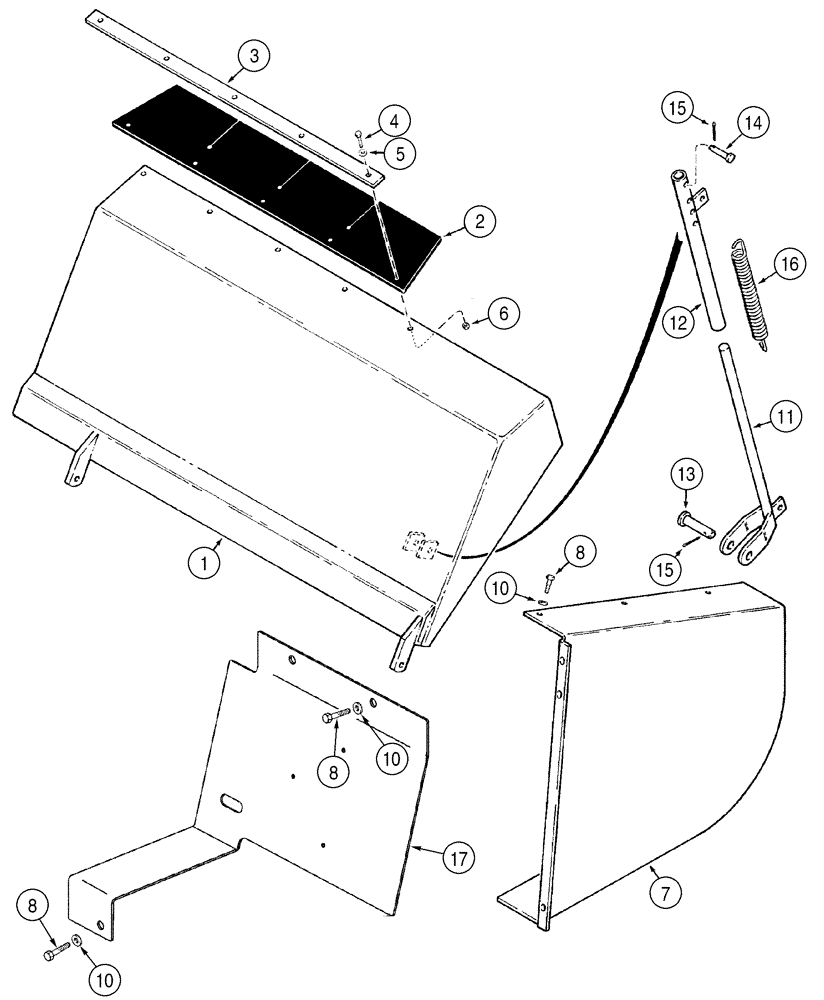

Запчасти Case TF300B (09-05) - DIRT DEFLECTOR GUARD, CHAIN (09) - CHASSIS/ATTACHMENTS

1

414054A1

DEFLECTOR

1шт.

2

H104422

FLAP

1шт.

3

H104414

FLAP

1шт.

4

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5шт.

5

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

5шт.

6

230-4215

NUT,5/16"-18, GA

5шт.

7

H528216

GUARD ASSY.

Chain Drive

1шт.

8

276-24812

SELF-TAP SCREW,5/16" - 18 x 3/4"

9шт.

10

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

9шт.

11

H529289

TUBE,344 mm L

1шт.

12

H547570

TUBE,317.5 mm L

1шт.

13

CASH32920

LARGE PIN

PIN, LARGE , 5/8 x 2-1/2

1шт.

14

H32284

AXLE PIN

1шт.

15

432-816

COTTER PIN,1/8" x 1"

2шт.

16

H32946

VALVE SPRING

1шт.

17

407514A1

GUARD

1шт.
