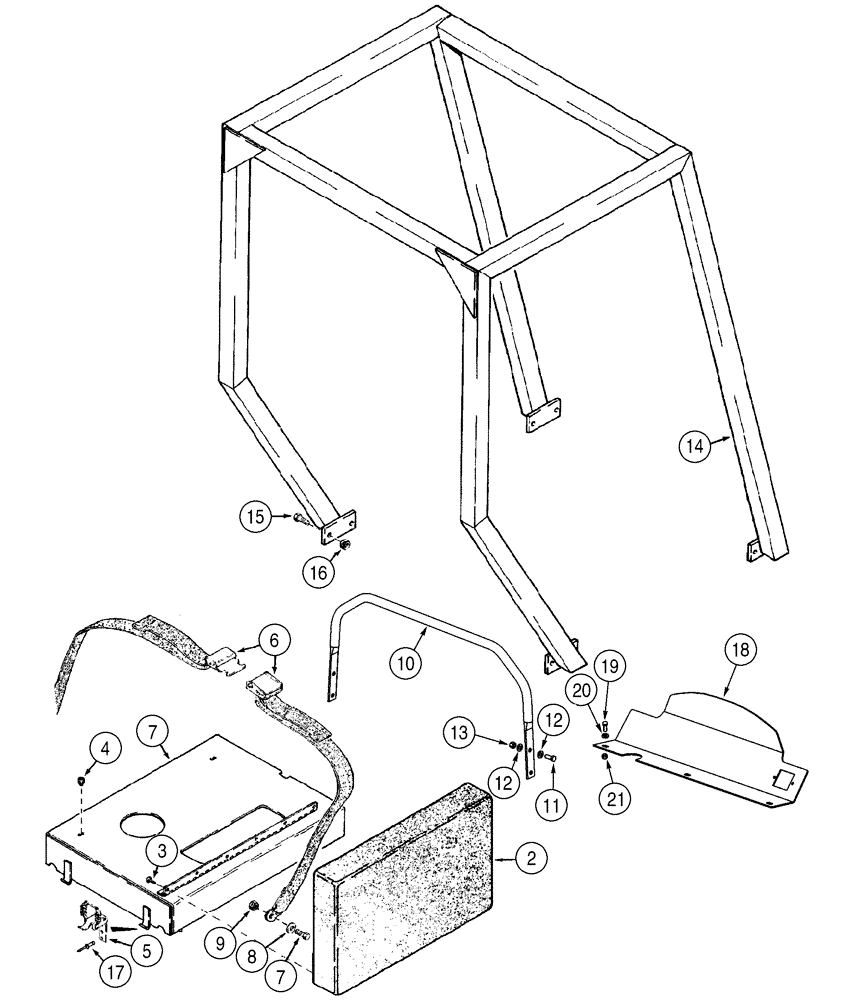

Запчасти Case TF300B (09-04) - ROPS SEAT AND HANDLE, GRAB (09) - CHASSIS/ATTACHMENTS

1

414907A1

MOUNTING PARTS

1шт.

2

403242A1

CUSHION

1шт.

3

260-14512

SCREW,Cross Pan Hd, #10 x 3/4"

No.10-16 x 3/4

6шт.

4

H66522

BUMPER

2шт.

5

H64683

LATCH ASSY.

2шт.

6

D75997

SAFETY BELT ,1.80" W

Used on Models with ROPS

1шт.

7

414-716

BOLT,Hex, 7/16" - 20 x 1", Gr 5

2шт.

8

495-21050

WASHER,7/16"

(1/2 x 1-1/4 x 5/64")

2шт.

9

230-4717

LOCK NUT,7/16"-20, GA

7/16 NF

2шт.

10

408193A1

HANDLE

Grab Handle

1шт.

11

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

12

496-21041

WASHER,13/32" x 13/16" x .089", HDN

10шт.

13

230-4216

LOCK NUT,3/8"-16, GA

4шт.

14

H658062

ROPS, Order From Machinery Price List, If Used

1шт.

15

326-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

8шт.

16

230-4216

LOCK NUT,3/8"-16, GA

8шт.

17

151-558

RIVET,Pop, 3/16" x .450"

3/16 x 1/2

1шт.

18

406654A1

PANEL

1шт.

19

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

20

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

3шт.

21

230-4215

NUT,5/16"-18, GA

3шт.
