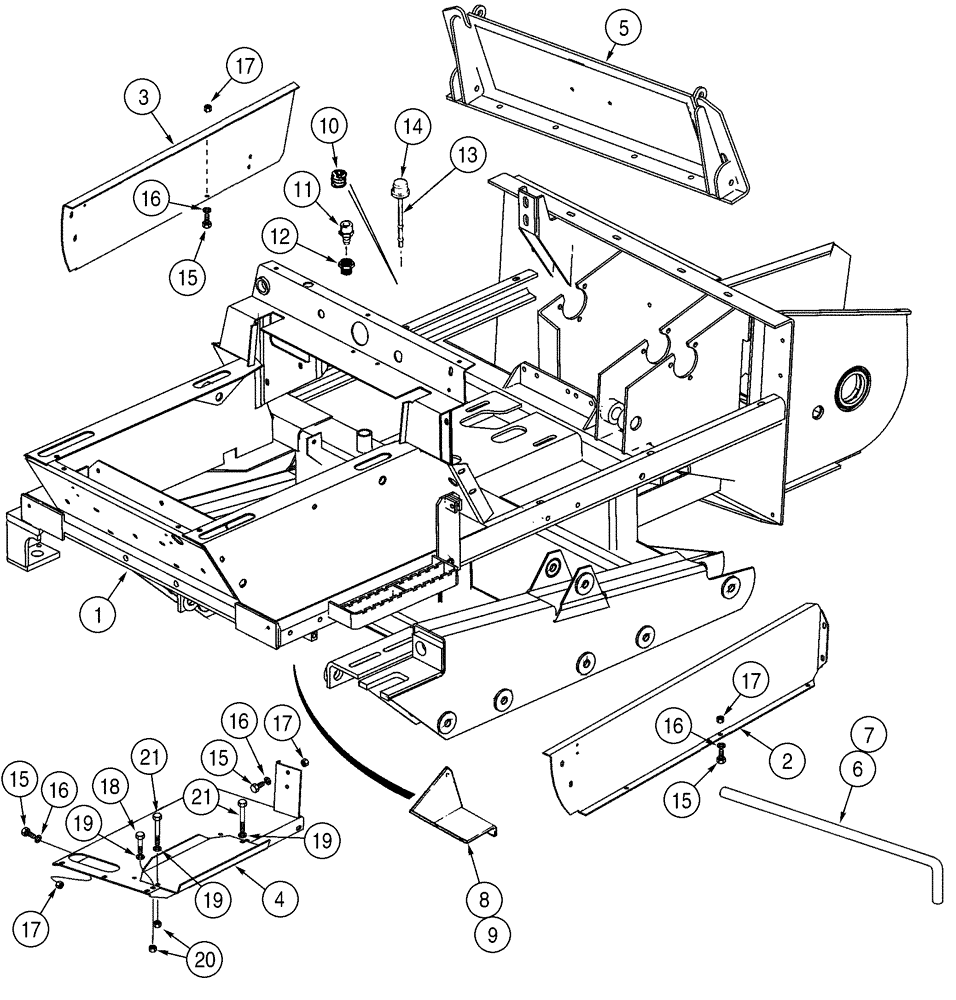

Запчасти Case TF300B (09-02) - MOUNTING CHASSIS AND PANELS (09) - CHASSIS/ATTACHMENTS

Used on Models With Rubber Tracks

1шт.

1

417616A2

CHASSIS

1шт.

2

407117A1

PANEL

Access, Right Hand

1шт.

3

407116A1

PANEL

Access, Left Hand

1шт.

4

414172A1

MOUNTING PARTS

Fuel Tank

1шт.

5

406657A1

GRILLE ASSY

Hood Support

1шт.

6

H32755

SPARE PART , Line Guide Indicator

1шт.

7

H65847

THUMB SCREW,5/16" - 18 x 3/4"

Line Guide Indicator

1шт.

8

H60800

Right Hand

1шт.

9

H607994

SKID/SHOE

Left Hand

1шт.

10

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Reservoir

1шт.

11

1971726C1

BREATHER,1/4" - 18

1шт.

12

221-91

REDUCER,Hex, 3/4" x 1/4" NPT

1шт.

Used on Models With Rubber Tracks

1шт.

13

H544957

DIPSTICK

Hydraulic Reservoir, Includes 14

1шт.

14

H148536

CAP

1шт.

15

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

10шт.

16

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

10шт.

17

232-4115

LOCK NUT,5/16"-18, GC

10шт.

18

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

5шт.

19

496-21041

WASHER,13/32" x 13/16" x .089", HDN

7шт.

20

232-4116

NUT,3/8"-16, GC

7шт.

21

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.
