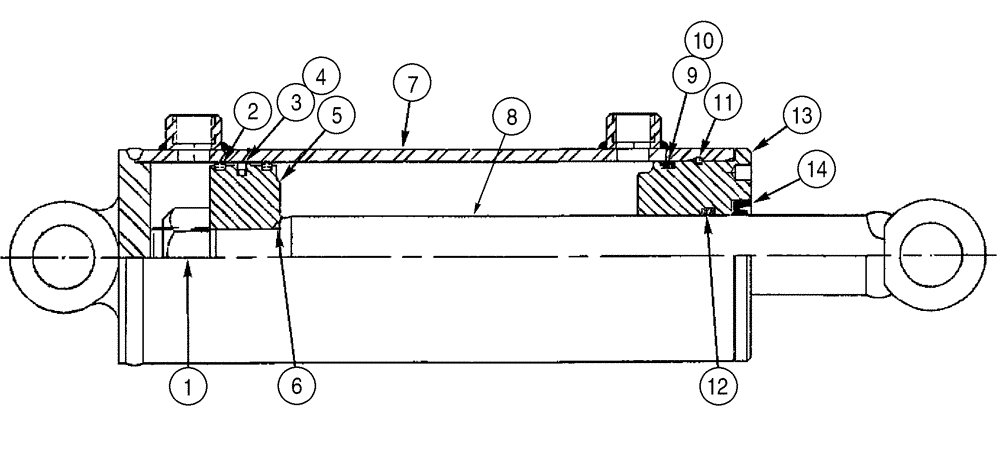

Запчасти Case TF300B (08-07) - BLADE, BACKFILL CYLINDER, ANGLE (08) - HYDRAULICS

395493A1

CYLINDER

76 ID x 146 mm strk, Angle, Consists Of 1 - 14

1шт.

1

H438714

LOCK NUT,7/8" - 14

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Wear

2шт.

3

NSS

NOT SOLD SEPARAT

Seal

1шт.

4

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

5

93320C1

PISTON

1шт.

6

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

7

397840A1

JACK BODY

1шт.

8

397843A1

ASSEMBLY

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

10

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

11

381873R1

RETAINER

1шт.

12

NSS

NOT SOLD SEPARAT

Cup

1шт.

13

397844A1

1шт.

14

NSS

NOT SOLD SEPARAT

Wiper

1шт.

93347C1

SEAL KIT

Seal, Includes 2, 3, 4, 6, 9, 10, 12, 14

1шт.
