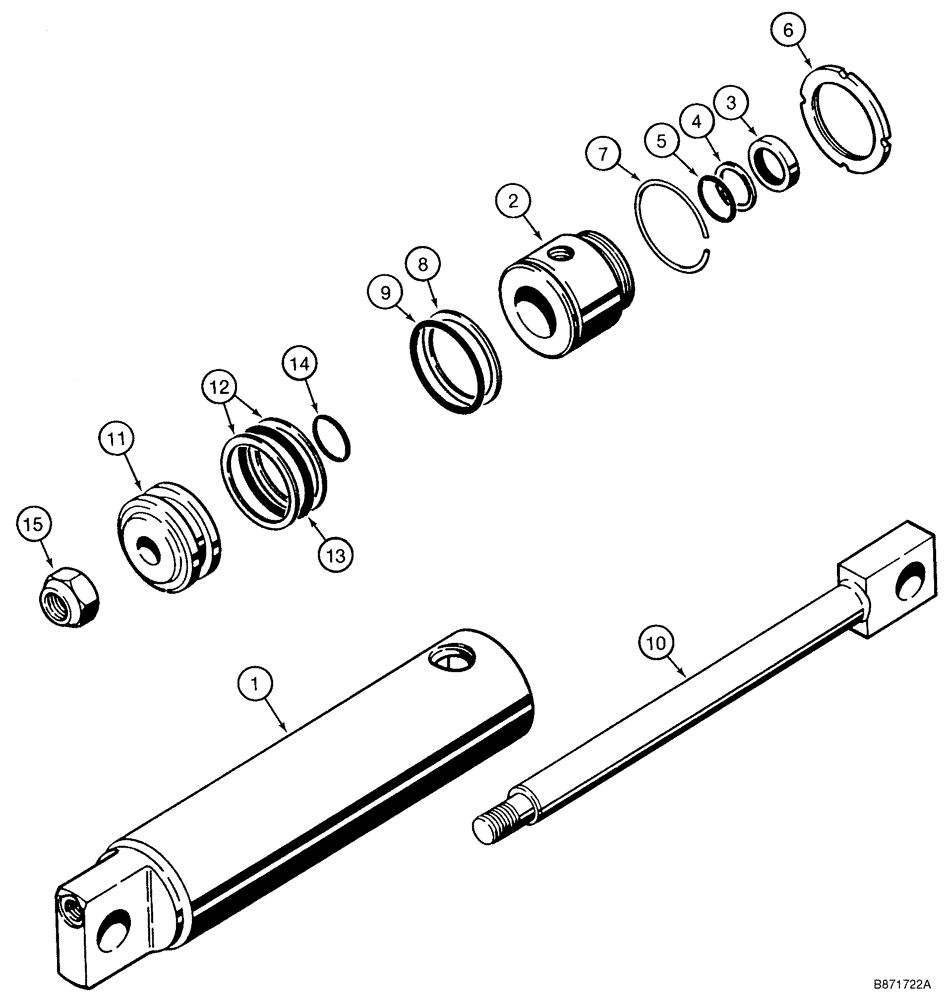

Запчасти Case TF300B (08-06) - LIFT CYLINDER BACKFILL BLADE AND TRENCHER BOOM (08) - HYDRAULICS

H504076

CYLINDER BLOCK

64 ID x 203 mm strk, Consists Of 1 - 15

2шт.

1

H72215

SLEEVE CYLINDER

1шт.

2

H70078

BEARING

1шт.

3

H220475

WIPER SEAL

1шт.

4

A35899

RING

1шт.

5

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

1шт.

6

H745786

BEARING LOCK NUT

1шт.

7

A35898

RING, SNAP

RING SNAP

1шт.

8

A35901

RING

1шт.

9

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

10

H66571

ROD

25 mm (1 in)

1шт.

11

A35897

PISTON ASSY.

1шт.

12

A35810

RING

2шт.

13

238-5330

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

1шт.

14

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

2шт.

15

232-46112

LOCK NUT,3/4"-16, GC

1шт.

H507350

GASKET KIT

Seal, Includes 3-5, 7-9, 12-14

1шт.
