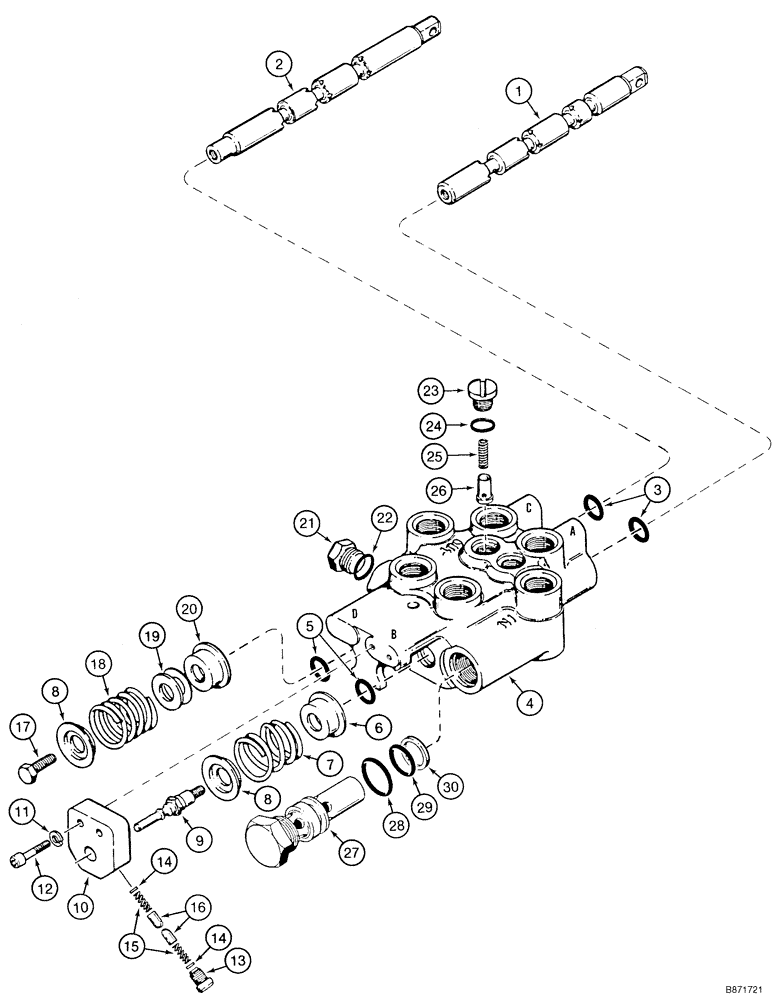

Запчасти Case TF300B (08-04) - VALVE ASSY, CONTROL BACKFILL BLADE (08) - HYDRAULICS

H567487

VALVE

Backfill Blade, Consists Of 1 - 30

1шт.

1

NSS

NOT SOLD SEPARAT

Spool, Lift

1шт.

2

NSS

NOT SOLD SEPARAT

Spool, Angle

1шт.

3

F37887

O-RING

2шт.

4

NSS

NOT SOLD SEPARAT

Body

1шт.

5

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

6

H138271

WASHER

1шт.

7

F59118

SPRING

1шт.

8

F59116

WASHER

2шт.

9

H139071

SCREW,1/4" - 20

1шт.

10

H125831

BLOCK

1шт.

11

492-11025

LOCK WASHER,1/4"

2шт.

12

61-32516

HEX SOC SCREW,1/4"-20 x 1"

2шт.

13

H424200

PLUG

1шт.

14

H141788

DISC

1шт.

15

H105049

SPRING

2шт.

16

H104992

PAWL

2шт.

17

H428292

SCREW,1/4" - 20 x 0.972"

1шт.

18

H220517

SPRING

1шт.

19

H746164

WASHER

1шт.

20

H52902

CAP

1шт.

21

H94219

PLUG

Includes 22

1шт.

22

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

1шт.

23

H47506

PLUG

Includes 24

2шт.

24

238-7112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

1шт.

25

FH730374

SPRING

2шт.

26

FH730366

PLUNGER

2шт.

F88054

VALVE

200 psi, Consists Of 27 - 30

1шт.

27

NSS

NOT SOLD SEPARAT

Body

1шт.

28

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

1шт.

29

G32626

RING

1шт.

30

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.
