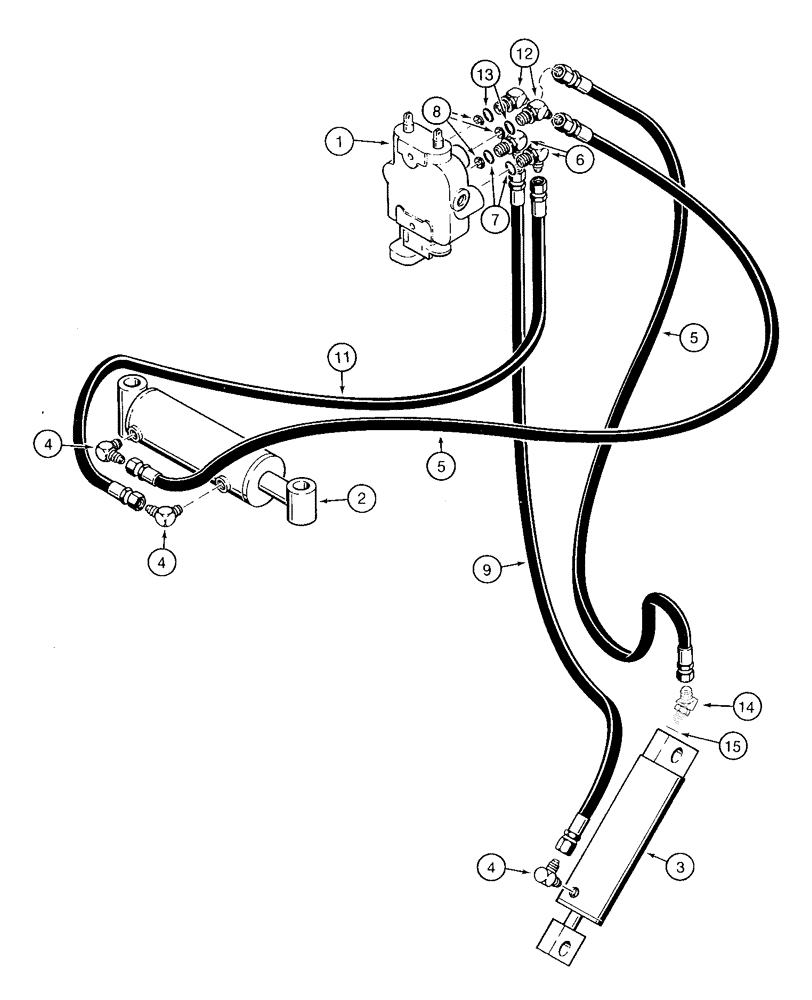

Запчасти Case TF300B (08-03) - HYDRAULIC CIRCUIT BACKFILL BLADE (08) - HYDRAULICS

Lift And Angle Circuits

1шт.

1

H567487

VALVE

Backfill Blade, See Page(s) 8-13, 8-15

1шт.

2

395493A1

CYLINDER

76 ID x 146 mm strk, Angle, See Page(s) 8-21

1шт.

3

H504076

CYLINDER BLOCK

64 ID x 203 mm strk, Lift, See Page(s) 8-19

1шт.

4

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

9/16 st x 3/8 PT

3шт.

5

H169151

HYDRAULIC HOSE,6.35 mm ID x 609.60 mm, SAE 100R1

2шт.

6

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Incl. 7

2шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

H256842

ORIFICE

2,36 mm dia

3шт.

9

H168658

HYDRAULIC HOSE,6.35 mm ID x 508.00 mm, SAE 100R1

1шт.

11

H169169

HYDRAULIC HOSE,6.35 mm ID x 762.00 mm, SAE 100R1

1шт.

12

218-5148

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Includes 13

2шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

14

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. 15

1шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
