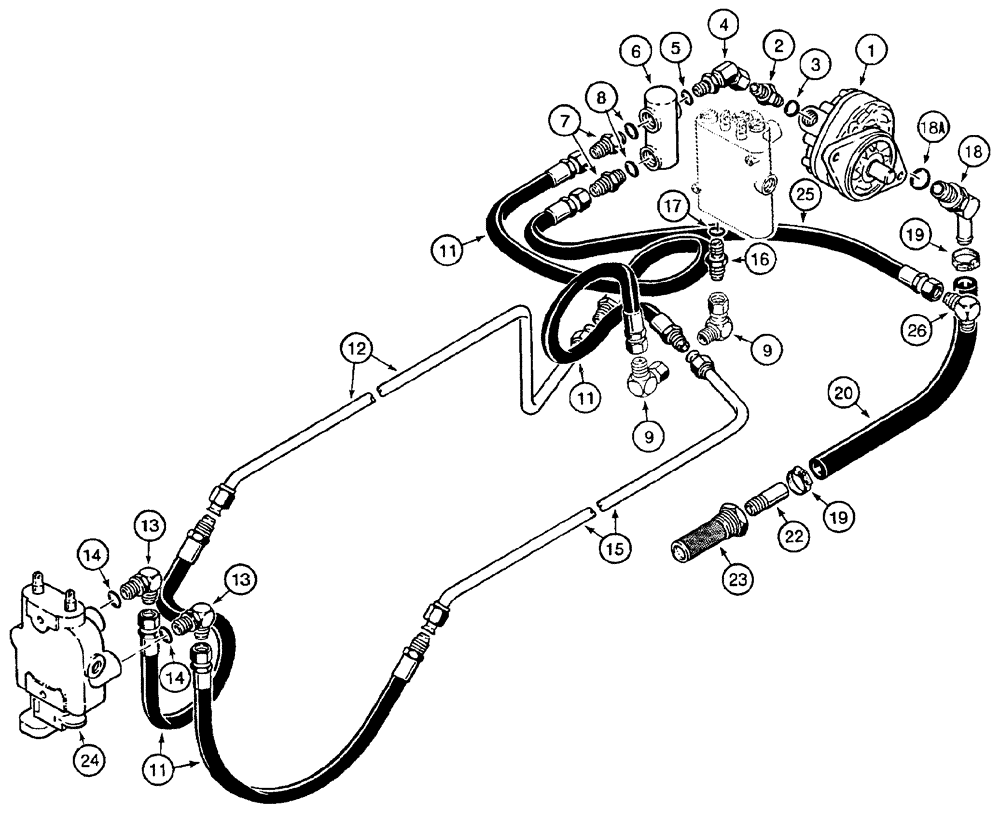

Запчасти Case TF300B (08-02) - HYDRAULICS BACKFILL BLADE (08) - HYDRAULICS

1

REF

INSTRUCTION

Pump Assy, Ground Drive, See Page(s) 6-5

1шт.

2

218-5406

HYD CONNECTOR,7/8"-14 Male ORB x 1/2" NPSM

7/8 Or x 1/2 PT, Includes 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

218-5327

ELBOW,45 Degree, 3/4"-16 O-Ring x 1/2" NPSM Fem

3/4 adj Or x 1/2 sw, Includes 5

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

H542910

LOCK VALVE

See Page(s) 8-17

1шт.

7

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Incl. 8

2шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

9

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

2шт.

11

H234690

HYDRAULIC HOSE,12.70 mm ID x 457.20 mm, SAE 100R1

Cut From H307926

3шт.

12

H607267

TUBE,15.875 mm OD

1шт.

13

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8 fl x adj Or, Incl. 14

2шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

15

H587998

TUBE,15.875 mm OD

1шт.

16

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or, Includes 17

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

18

217-309

FITTING,45 Degree Elbow, 1" Hose Barb x 1-1/16" - 12 Male ORB

Includes 18A

1шт.

18a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

19

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

2шт.

20

H169417

HOSE ASSY.

610 mm (24 in), Cut From H307926

1шт.

22

H30650

NIPPLE, LUBE

NIPPLE , 1 PT

1шт.

23

H501478

STRAINER ASSY.

Suction Filter, Hydraulic Reservoir

1шт.

24

H567487

VALVE

Backfill Blade, See Page(s) 8-13, 8-15

1шт.

25

H246298

HYDRAULIC HOSE,12.70 mm ID x 660.40 mm, SAE 100R1

1шт.

26

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

7/8 fl x 1/2 PT

1шт.
