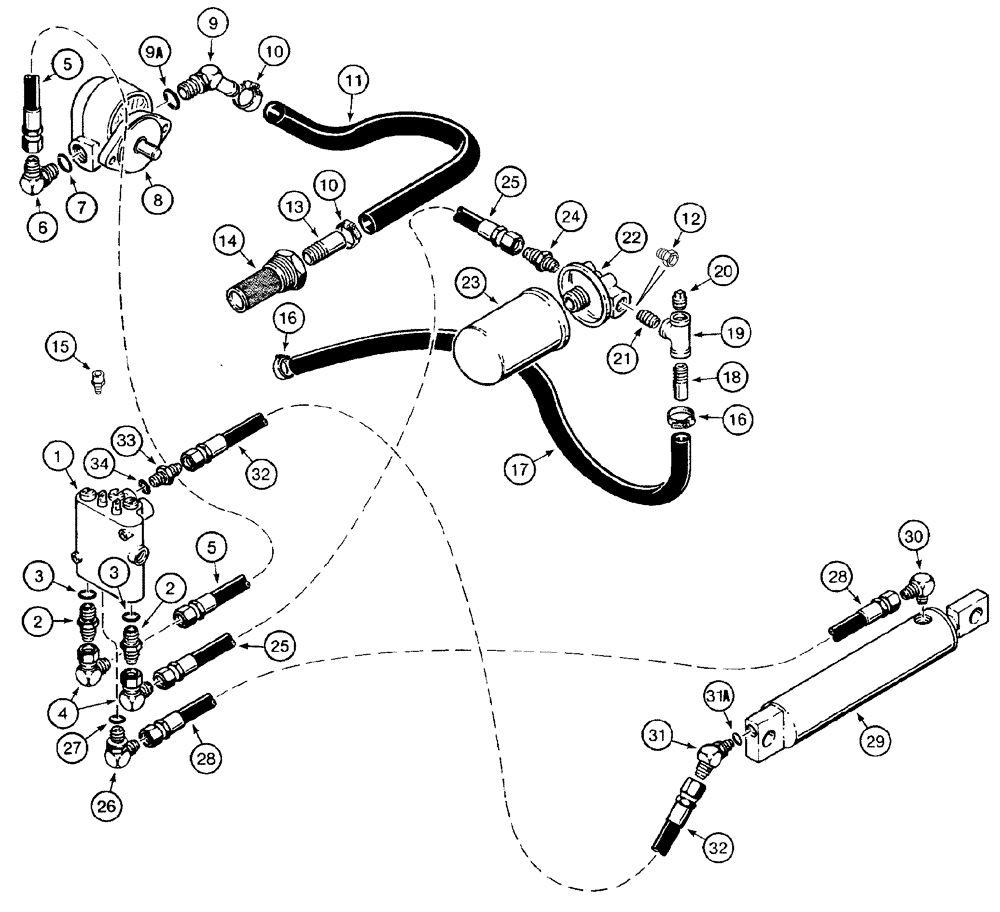

Запчасти Case TF300B (08-01) - HYDRAULICS BOOM LIFT (08) - HYDRAULICS

1

294275A1

VALVE

See Page(s) 6-11 - 6-15

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or, Includes 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

2шт.

5

H431023

HYDRAULIC HOSE,350.00 mm, SAE 100R1A

1шт.

6

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8 fl x adj Or, Incl. 7

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

REF

INSTRUCTION

Pump Assy, Ground Drive, See Page(s) 6-5

1шт.

9

217-309

FITTING,45 Degree Elbow, 1" Hose Barb x 1-1/16" - 12 Male ORB

Includes 9A

1шт.

9a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

2шт.

11

H169417

HOSE ASSY.

610 mm (24 in), Cut From H307926

1шт.

12

221-93

REDUCER,Hex, 3/4" x 1/2" NPT

3/4 x 1/2 fem

1шт.

13

H30650

NIPPLE, LUBE

NIPPLE , 1 PT

1шт.

14

H501478

STRAINER ASSY.

Suction Filter, Hydraulic Reservoir

1шт.

15

1971726C1

BREATHER,1/4" - 18

1шт.

16

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

17

H119495

HYDRAULIC HOSE,0.75" ID x 27.00", SAE 30R2 Type 2

Cut from H379214

1шт.

18

H119487

NIPPLE, LUBE

NIPPLE

1шт.

19

221-424

TEE,1/2" NPT

1шт.

20

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

1шт.

21

221-185

PIPE,Nipple, 1/2" NPT x 1 1/8"

1/2 PT x 1-1/8

1шт.

22

H616508

FILTER HEAD

1шт.

23

H311647

HYDRAULIC OIL FILTER

1шт.

24

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

7/8 fl x 3/4 PT

1шт.

25

H175612

HYDRAULIC HOSE,12.70 mm ID x 609.60 mm, SAE 100R1

1шт.

26

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. 27

1шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

28

D51686

HOSE

1372 mm (54 in)

1шт.

29

H504076

CYLINDER BLOCK

64 ID x 203 mm strk, See Page(s) 8-19

1шт.

30

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

3/4 fl x 3/8 PT

1шт.

31

218-5529

ELBOW,45 Degree, 9/16" - 18 ORB x 3/4" - 16 JIC

3/4 fl x adj Or, Includes 31A

2шт.

32

H205955

HYDRAULIC HOSE,9.52 mm ID x 1193.80 mm, SAE 100R1

1шт.

33

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 34

1шт.

34

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

35

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Control Valve Mounting, Not Illustrated

3шт.

36

492-11038

LOCK WASHER,3/8"

3шт.

37

496-21041

WASHER,13/32" x 13/16" x .089", HDN

Control Valve Mounting, Not Illustrated

3шт.

31a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
