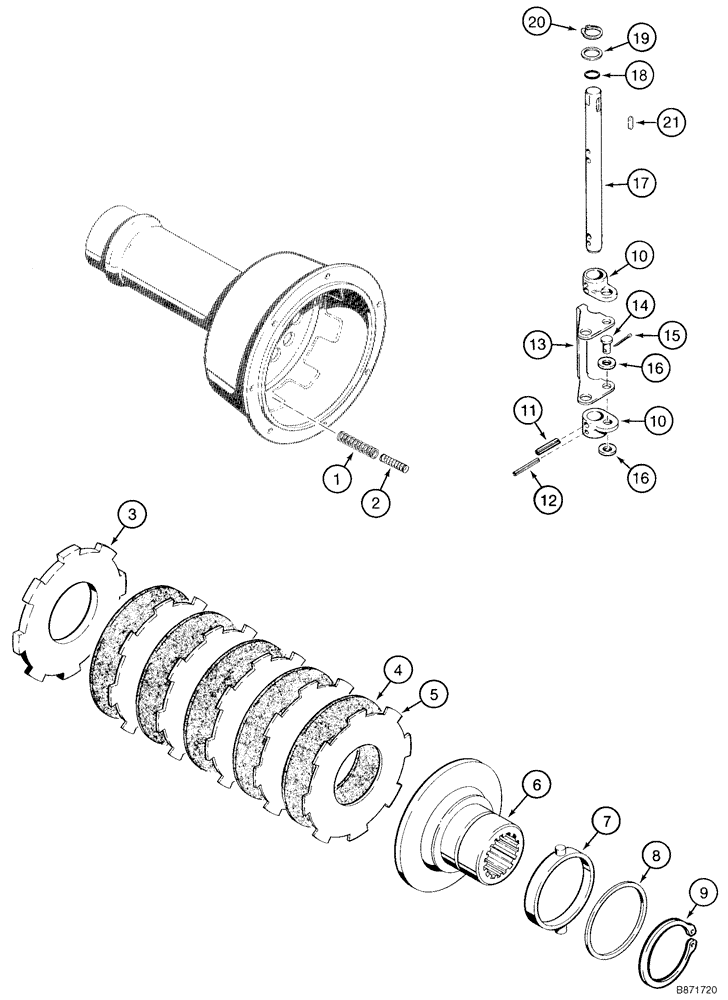

Запчасти Case TF300B (07-01) - TRANSMISSION ASSY BRAKE ASSY AND LINKAGE (07) - BRAKES

H547281

TRANSMISSION

Ground Drive, Includes 1 - 21, Also Includes 6-33

1шт.

1

N14636

SPRING

Outer

12шт.

2

H123612

VALVE SPRING

Inner

12шт.

3

H176982

PLATE ASSY.

2шт.

4

H176990

DISC

10шт.

5

H177006

DISC

10шт.

6

H177147

CLUTCH ASSEMBLY

2шт.

7

H100131

RING, SNAP

RING SNAP

2шт.

8

H144527

WASHER,63.55mm ID x 82.3mm OD x 3.2mm Thk

3.2 mm

2шт.

9

100-11250

SNAP RING,#250, Ext

2шт.

10

H100065

KEY

4шт.

11

38-11618

LOCK PIN,1/4" x 1 1/8", Slotted

1/4" x 1 1/8", Slotted

4шт.

12

38-11218

LOCK PIN,3/16" x 1 1/8", Slotted

3/16" x 1 1/8", Slotted

4шт.

13

H100073

KEY

2шт.

14

H100354

CLEVIS COUPLING

4шт.

15

432-612

COTTER PIN,3/32" x 3/4"

4шт.

16

H100222

WASHER

8шт.

17

H100289

KEY

2шт.

18

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

2шт.

19

H100214

WASHER

2шт.

20

F42092

RING, SNAP

RING SNAP

2шт.

21

H58016

KEY

2шт.

H177154

GASKET KIT

Seal, Consists Of 1342757C1, H100255, H749218, H100248, H100339, 238-5115

1шт.
