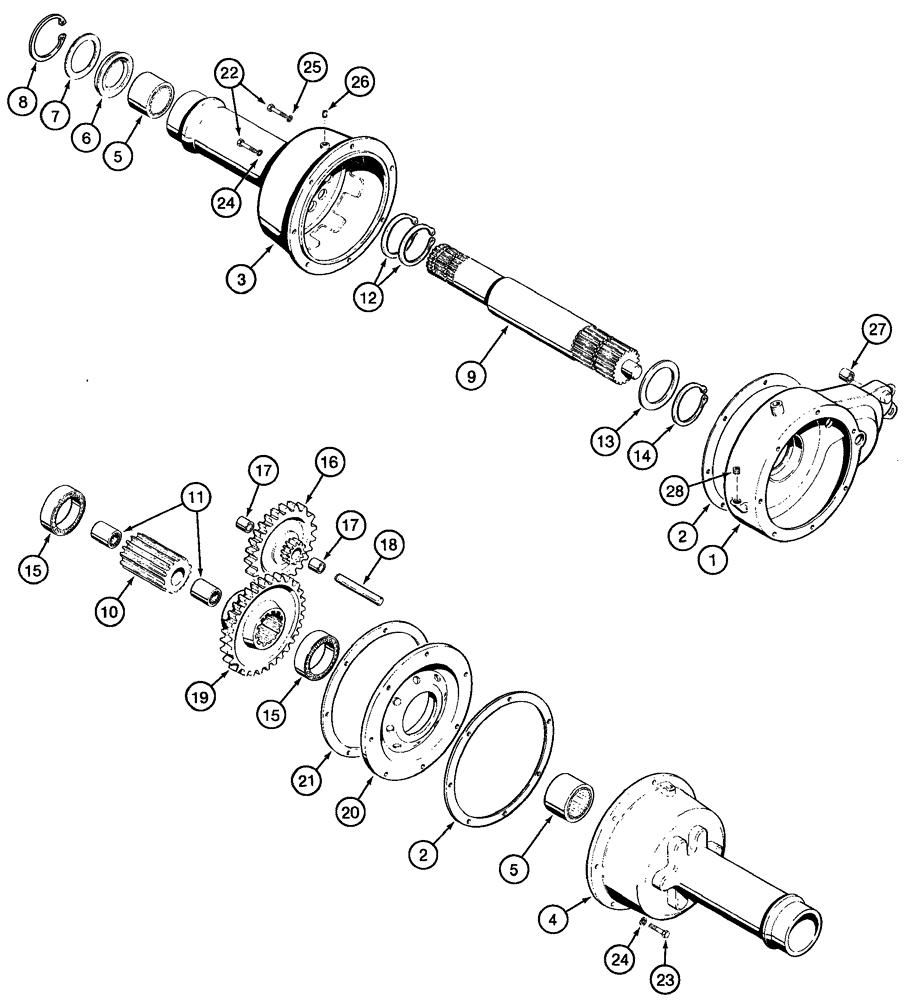

Запчасти Case TF300B (06-11) - TRANSMISSION ASSY GROUND DRIVE (06) - POWER TRAIN

H547281

TRANSMISSION

Consists Of 1 - 28

1шт.

1

H100115

HOUSING

Gear

1шт.

2

H100255

GASKET

2шт.

3

H123588

CENTER AXLE

Left Hand Side

1шт.

4

H123596

CENTER AXLE

Right Hand Side

1шт.

5

A50606

NEEDLE BEARING,Needle, 44.45mm ID x 53.98mm OD x 38.1mm W

2шт.

6

H749218

OIL SEAL,44.45mm ID x 63.65mm OD x 7.95mm Thk

2шт.

7

H100362

WASHER

2шт.

8

100-21250

SNAP RING,2.50", Int, #250

2шт.

9

H100230

SHAFT

2шт.

10

H100180

SHAFT

2шт.

11

A28244

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W

2шт.

12

100-11156

SNAP RING,#156, Ext

4шт.

13

H100271

WASHER

2шт.

14

103-11200

SNAP RING,#200, Ext

2шт.

H177154

GASKET KIT

Seal, Consists Of 1342757C1, H100255, H749218, H100248, H100339, 238-5115

1шт.

H547281

TRANSMISSION

Consists Of 1 - 28, Continued From Previous Page

1шт.

15

G10418

BEARING, BALL

2шт.

16

H176974

REDUCER

1шт.

17

H747964

NEEDLE BEARING,Needle, 20.64mm ID x 26.99mm OD x 22.23mm W

2шт.

18

H100263

REDUCER

1шт.

19

H126797

GEAR WHEEL

Drive

1шт.

20

H100057

PLATE ASSY.

1шт.

21

H100248

GASKET

1шт.

22

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

7шт.

23

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

7шт.

24

492-11038

LOCK WASHER,3/8"

9шт.

25

H100339

WASHER

5шт.

26

H746230

PLUG

1шт.

27

H747949

NEEDLE BEARING

1шт.

28

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

1шт.

H177154

GASKET KIT

Seal, Consists Of 1342757C1, H100255, H749218, H100248, H100339, 238-5115

1шт.
