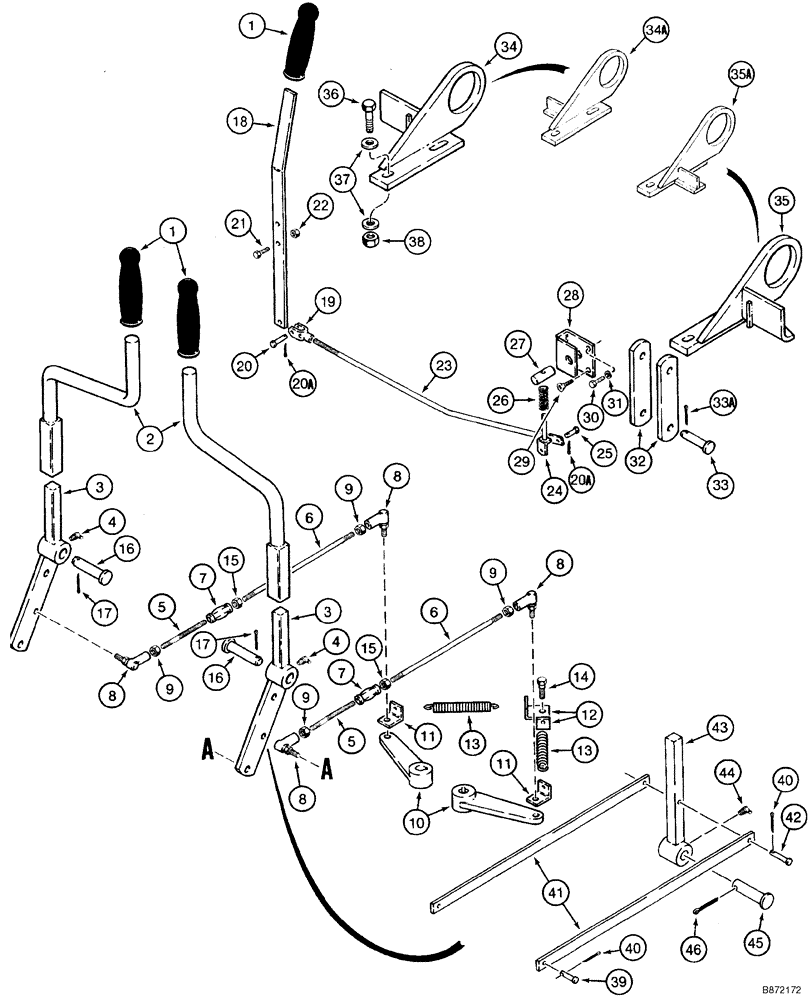

Запчасти Case TF300B (06-08) - TRANSMISSION MOUNTING, CONTROLS, AND LINKAGE (06) - POWER TRAIN

1

H31773

HANDLE

3шт.

2

H588921

HANDLE

Steering

2шт.

3

H528224

LEVER

2шт.

4

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

2шт.

5

H109348

ROD

2шт.

6

H109355

ROD

2шт.

7

H96743

TURNBUCKLE

2шт.

8

D121417

BALL JOINT,3/8" - 24 x 1-3/8"

4шт.

9

131-1326

JAM NUT,Jam, 3/8"-24

3/8 NF

4шт.

10

H93351

LEVER

Transmission

2шт.

11

H96347

CLIP

2шт.

12

H96354

CLIP

2шт.

13

H93377

VALVE SPRING

2шт.

14

121-227

STEP BOLT,Hex Skt, 3/8" - 16 - 1/2" x 1/2"

1шт.

15

425-146

JAM NUT,3/8" - 16, Gr 5

2шт.

16

H114843

AXLE PIN

3/4 x 2-7/8

2шт.

17

432-1224

COTTER PIN,3/16" x 1-1/2"

2шт.

18

H210302

HANDLE

1шт.

19

213-125

ADJUSTABLE CLEVIS,5/16" - 32

1шт.

20

H44206

CLEVIS COUPLING,7.94mm OD x 27.78mm L

5/16 x 1

1шт.

20a

432-48

COTTER PIN,1/16" x 1/2"

2шт.

21

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

5/16 x 1-1/4

1шт.

22

230-4215

NUT,5/16"-18, GA

1шт.

23

H614552

ROD

1шт.

24

H531178

AXLE PIN

1шт.

25

D23693

AXLE PIN

1/4 x 1

1шт.

26

H115501

VALVE SPRING

1шт.

27

H115527

AXLE PIN

1шт.

28

H567040

BRACKET

1шт.

29

461-43112

HEX SOC SCREW,Flat Hd, 5/16"-18 x 3/4"

5/16 x 3/4

1шт.

30

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

31

492-11031

LOCK WASHER,5/16"

1шт.

32

H433047

LINK

2шт.

33

H30262

AXLE PIN

3/4 x 2

1шт.

33a

432-1224

COTTER PIN,3/16" x 1-1/2"

1шт.

34

H564716

MOUNTING PARTS

Transmission Mounting, Left Hand, Used on Models With Steel Tracks

1шт.

34a

H673895

SUPPORT

Transmission Mounting, Left Hand, Used on Models With Rubber Tracks

1шт.

35

H564708

MOUNTING PARTS

Transmission Mounting, Right Hand, Used on Models With Steel Tracks

1шт.

35a

H673896

SUPPORT

Transmission Mounting, Right Hand, Used on Models With Rubber Tracks

1шт.

36

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

37

496-21053

WASHER,17/32" x 1 1/16" x .134"

8шт.

38

230-4218

LOCK NUT,1/2"-13, GA

4шт.

39

H44289

CLEVIS COUPLING

5/16 x 1-1/8

2шт.

40

432-812

COTTER PIN,3/4" OAL x 1/8" W

4шт.

41

H112144

BAR

4шт.

42

H42887

CLEVIS PIN

5/16 x 1-1/2

2шт.

43

H529743

LEVER

Backfill Blade

2шт.

44

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

2шт.

45

H114843

AXLE PIN

3/4 x 2-7/8

2шт.

46

432-1220

COTTER PIN,3/16" x 1 1/4"

2шт.
