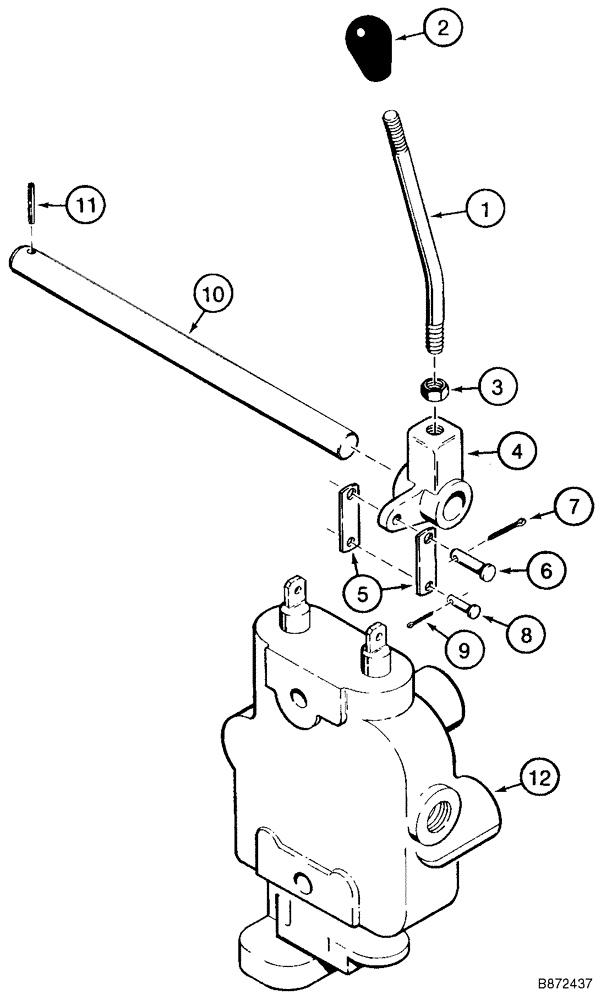

Запчасти Case TF300B (06-07) - CONTROL VALVE AND LINKAGE BACKFILL BLADE (06) - POWER TRAIN

1

H182063

HANDLE

2шт.

2

A14051

GRIP

2шт.

3

425-146

JAM NUT,3/8" - 16, Gr 5

2шт.

4

H275255

CRANK LEVER

2шт.

5

H185066

DRAG LINK

4шт.

6

D23693

AXLE PIN

1/4 x 1

2шт.

7

432-612

COTTER PIN,3/32" x 3/4"

2шт.

8

H35279

AXLE PIN,4.72mm OD x 23.76mm L

3/16 x 57/64

2шт.

9

432-48

COTTER PIN,1/16" x 1/2"

2шт.

10

H185116

SHAFT

1шт.

11

38-11218

LOCK PIN,3/16" x 1 1/8", Slotted

3/16" x 1 1/8", Slotted

1шт.

12

H567487

VALVE

Blade, Backfill, See Page(s) 8-13, 8-15

1шт.
