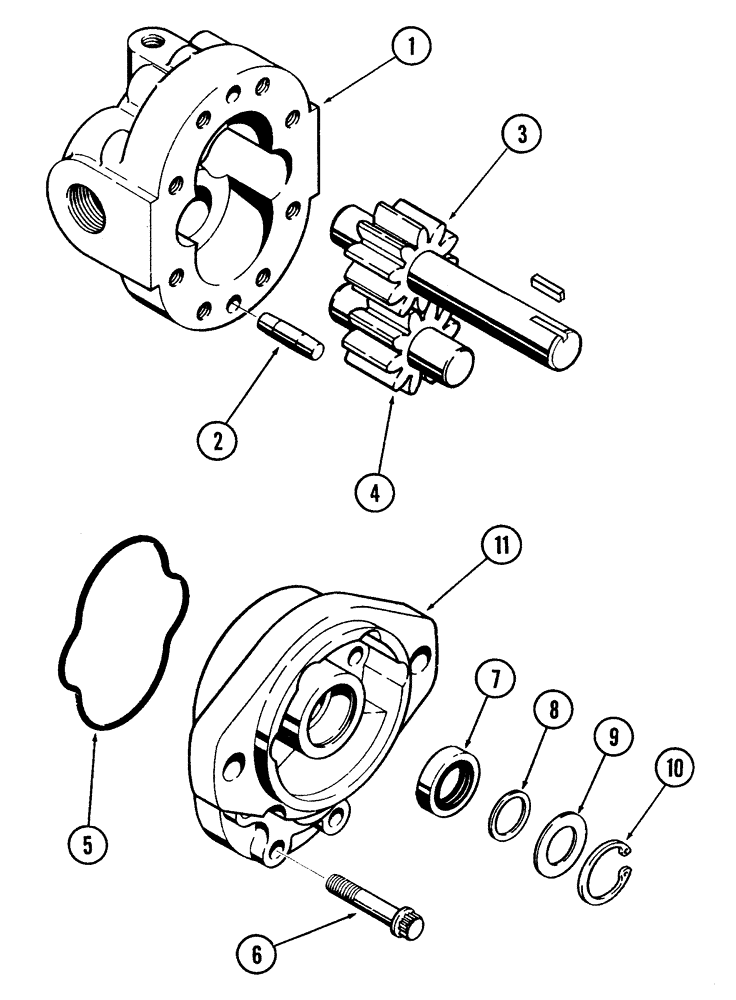

Запчасти Case TF300B (06-04) - GROUND DRIVE MOTOR (06) - POWER TRAIN

Used on Models With Rubber Tracks

1шт.

199030A1

MOTOR

Ground Drive, Consists Of 1 - 11

1шт.

1

232014A1

HOUSING

Port End

1шт.

2

A11528

PIN,7.81mm OD x 14.29mm L

2шт.

3

232015A1

GEAR

Drive

1шт.

4

232016A1

GEAR, IDLER

GEAR,IDLE , Driven

1шт.

5

238-5041

O-RING,0.07" Thk x 2.989" ID, -41, Cl 5, 75 Duro

1шт.

6

380-2524

12 PT SCREW,Flg, 5/16" - 18 x 1 1/2"

8шт.

7

H263608

SEAL

1шт.

8

H418004

WASHER

1шт.

9

H94490

WASHER

1шт.

10

100-21112

SNAP RING,1.125", Int, #112

1шт.

11

N13533

PLATE

Output Shaft

1шт.
