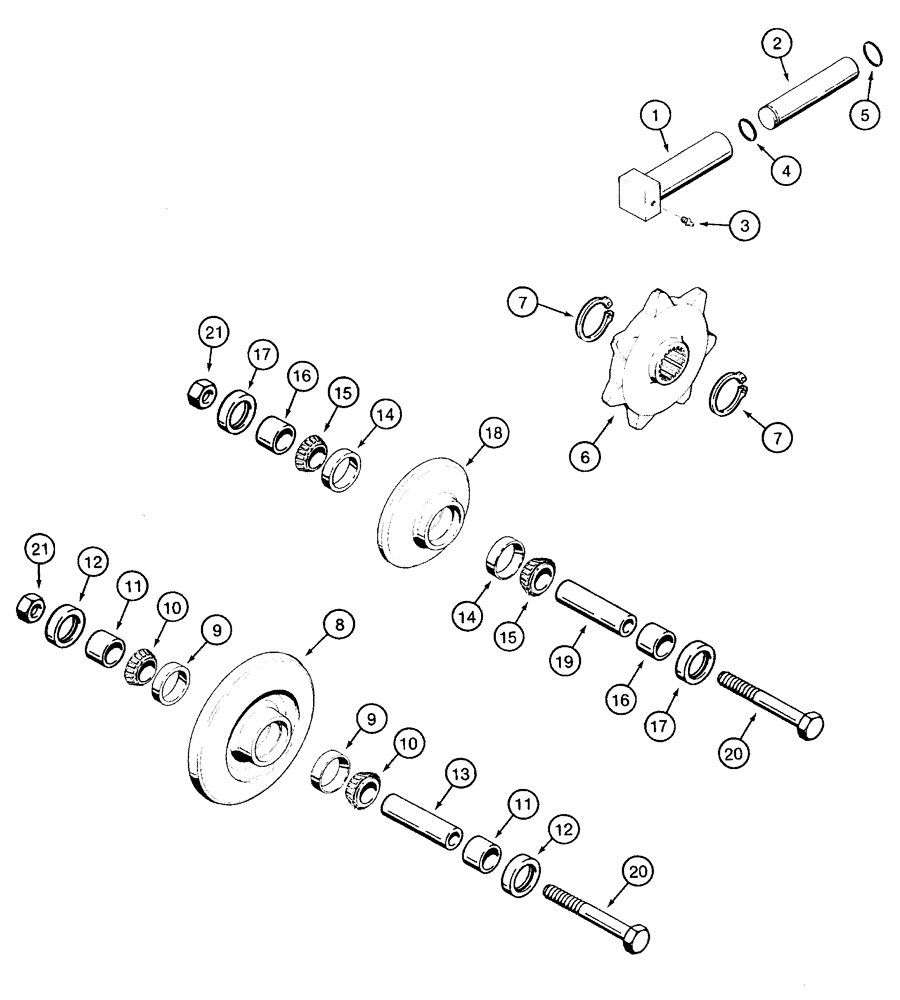

Запчасти Case TF300B (05-03) - TRACK IDLER, ROLLER, SPROCKET AND ADJUSTER (05) - STEERING

Used on Models With Rubber Tracks

1шт.

H563254

ADJUSTER

Adjusting, Consists Of 1 - 5

2шт.

1

NSS

NOT SOLD SEPARAT

Tube

1шт.

2

NSS

NOT SOLD SEPARAT

Rod, Piston

1шт.

3

219-66

LUBE NIPPLE,1/8"-27 NPT, Dustproof

1/8 PT x 1

1шт.

4

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

1шт.

5

238-5022

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

1шт.

6

H437502

DRIVE SPROCKET

2шт.

7

100-11156

SNAP RING,#156, Ext

4шт.

H673897

SHIFTER ROLLER

Consists Of 8 - 13

2шт.

8

H436947

SHIFTER ROLLER

1шт.

9

572564R1

BEARING CUP

2шт.

10

D29266

ROLLER BEARING,1" ID x 0.58"

2шт.

11

H89656

SLEEVE

2шт.

12

H749077

OIL SEAL

2шт.

13

N89631

1шт.

H673898

SHIFTER ROLLER

Consists Of 14 - 19

10шт.

14

572564R1

BEARING CUP

2шт.

15

D29266

ROLLER BEARING,1" ID x 0.58"

2шт.

16

H89656

SLEEVE

2шт.

17

H749077

OIL SEAL

2шт.

18

H436948

SHIFTER ROLLER

1шт.

19

N89631

1шт.

20

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

12шт.

21

230-42110

LOCK NUT,5/8"-11, GA

5/8

12шт.
