(05-01) - TRACK ASSY

Запчасти Case TF300B (05-01) - TRACK ASSY (05) - STEERING

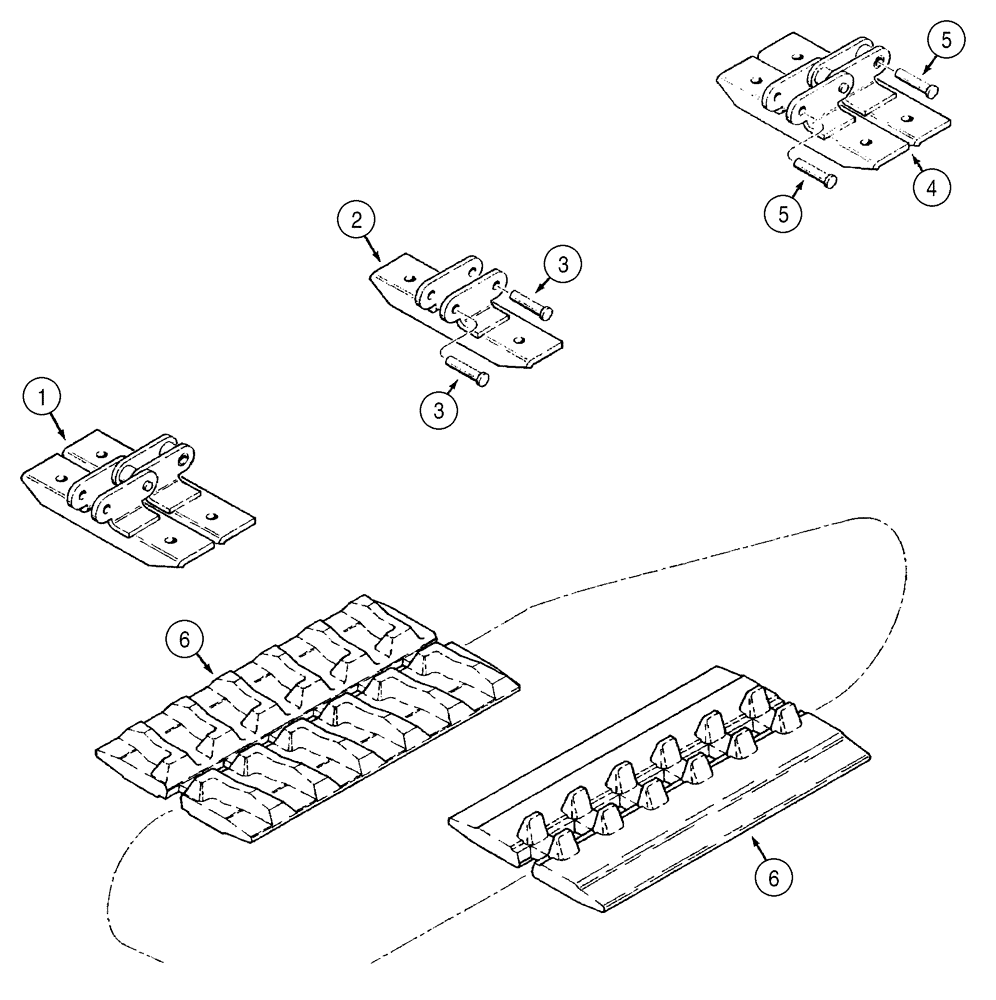

Схема запчастей Case TF300B - (05-01) - TRACK ASSY (05) - STEERING
6
3
1
3
5
6
4
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

Used on Models With Steel Tracks

1шт.

1

H545160

SHOE (ASSY)

254 mm (10 in), Steel

2шт.

2

H551580

PACKAGE

Repair, Includes 3

1шт.

3

H148676

LARGE PIN

PIN, LARGE

2шт.

4

H545186

SHOE (ASSY)

Repair, Includes 5

1шт.

5

H148676

LARGE PIN

PIN, LARGE , Used on Models With Rubber Tracks

2шт.

6

H437657

TRACK CHAIN

Rubber

2шт.
