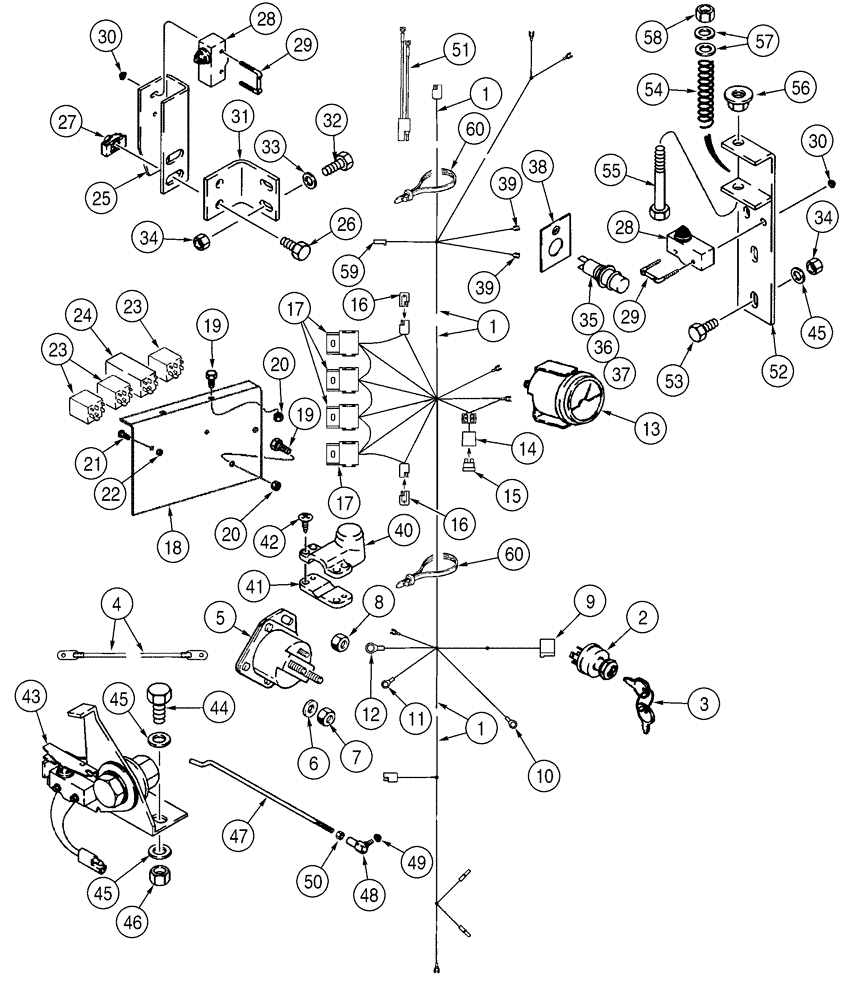

Запчасти Case TF300B (04-02) - HARNESS, MAIN CONNECTORS (04) - ELECTRICAL SYSTEMS

1

414564A1

HARNESS

Main

1шт.

2

282775A1

IGNITION SWITCH

Includes 3

1шт.

3

1964831C2

IGNITION KEY

Padded

1шт.

4

413817A1

CABLE

Starter Solenoid

1шт.

5

A39079

SOLENOID

Starter

1шт.

6

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

2шт.

7

230-4215

NUT,5/16"-18, GA

2шт.

8

232-4114

LOCK NUT,1/4"-20, GC

1шт.

9

225253C1

CONNECTOR, ELEC

CONNECTOR , Ignition

1шт.

10

225060C1

CONNECTOR, ELEC

CONNECTOR , 5/16, Engine Ground

1шт.

11

200329

TERMINAL

CONNECTOR , 1/4, Ground

1шт.

12

225065C1

ELEC CONNECTOR,3.00 - 5.00mm

CONNECTOR , 3/8

1шт.

13

H347880

AMMETER

1шт.

14

247676A1

MULTIPOLE CONNECTOR,Female, 2 Pin

1шт.

15

A149804

FUSE

30 amp

1шт.

16

L71879

DIODE ELEMENT,400V, 3A

Seat, Neutral Start

2шт.

17

245731C1

CONNECTOR, ELEC

CONNECTOR

4шт.

18

406446A2

BRACKET

Relay

1шт.

19

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

20

230-4214

LOCK NUT,1/4"-20, GA

4шт.

21

440-1088

SCREW,Cross Pan Hd, #8-32 x 1/2"

2шт.

22

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

2шт.

23

314451A1

RELAY

40 amp, 12V, Seat, Engine, Neutral Start

3шт.

24

300855A1

RELAY

Time Delay

1шт.

25

298085A1

BRACKET

Neutral Start Switch

1шт.

26

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

27

H346650

NUT

2шт.

28

H435820

SWITCH

Neutral Start

2шт.

29

H435814

U-BOLT

2шт.

30

193-1003

NUT,Keps, w/LW,#6-32

4шт.

31

239712A1

SUPPORT

1шт.

32

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

33

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

2шт.

34

232-4115

LOCK NUT,5/16"-18, GC

4шт.

175462A1

LIGHT

Neutral Indicator, Includes 35 - 37

1шт.

35

NSS

NOT SOLD SEPARAT

Body

1шт.

36

NSS

NOT SOLD SEPARAT

Lens

1шт.

37

200557H1

BULB,C2V, #1815, 14V

1шт.

38

242335A1

DECAL

Neutral Warning Light

1шт.

39

282459A1

ELEC CONNECTOR,Female, 0.75 - 2 mm2

2шт.

40

115759A1

COVER

Starter Relay

1шт.

41

115760A1

RETAINER

1шт.

42

760-34313

SELF-TAP SCREW,Pan Hd, M4.2 x 13

2шт.

43

106402A1

SWITCH

Neutral Start, See Page(s) 4 - 11

1шт.

44

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

45

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

6шт.

46

232-4115

LOCK NUT,5/16"-18, GC

2шт.

47

179590A1

STEM

1шт.

48

L12437

BALL JOINT,#10 - 32 x 7/8"

1шт.

49

193-1000

NUT,Keps, w/LW,#10-32

1шт.

50

225-14210

NUT,#10-32

1шт.

51

H436183

CONNECTOR, ELEC

CONNECTOR

1шт.

52

239577A1

SUPPORT

1шт.

53

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

54

H196717

VALVE SPRING

1шт.

55

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

56

239574A1

WASHER

1шт.

57

496-21041

WASHER,13/32" x 13/16" x .089", HDN

1шт.

58

425-106

NUT,3/8"-16, Cl 5

1шт.

59

631801C1

CONNECTION

1шт.

60

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP , 15 in

1шт.

61

405528A1

TACHOMETER

Not Illustrated, Includes Hourmeter

1шт.
