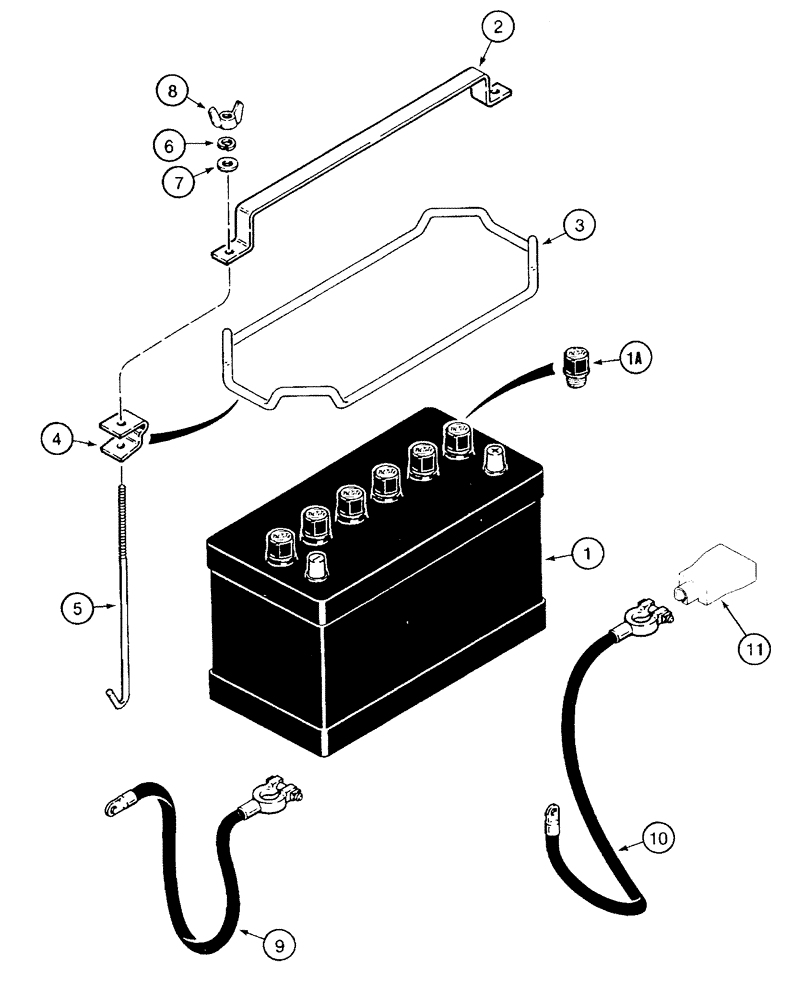

Запчасти Case TF300B (04-01) - BATTERY CABLES (04) - ELECTRICAL SYSTEMS

1

H272864

SPARE PART , For Service, Order A186029, Includes 1A

1шт.

1a

A60553

CAP

Battery

6шт.

2

H396721

COVER

Cap Retaining

1шт.

3

H30833

FUNNEL

FRAME , Battery, Includes 4

1шт.

4

NSS

NOT SOLD SEPARAT

Clip

2шт.

5

H30825

BOLT

8 in, Hold Down

2шт.

6

492-11031

LOCK WASHER,5/16"

2шт.

7

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

2шт.

8

129-419

WING NUT,5/16"-18

2шт.

9

413819A1

CABLE

Battery, Negative

1шт.

10

413818A1

CABLE

Battery, Positive

1шт.

11

H102681

COVER ASSY

Battery Terminal

2шт.
