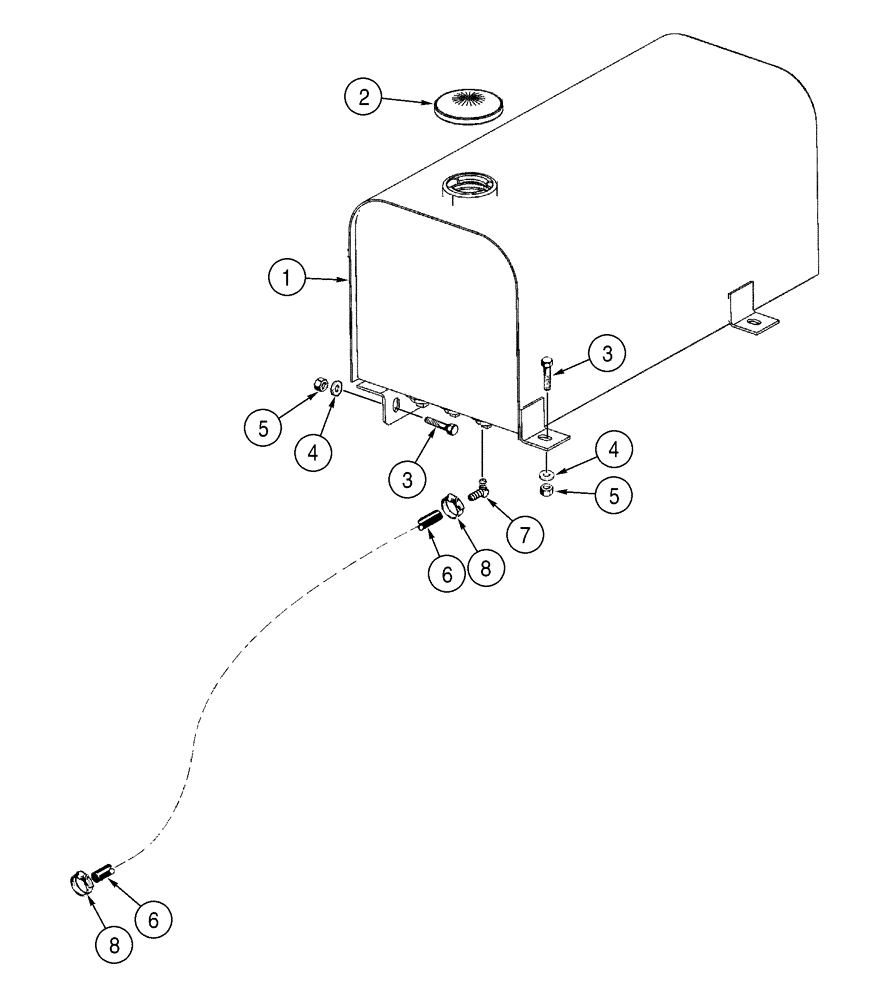

Запчасти Case TF300B (03-01) - FUEL TANK AND LINES (03) - FUEL SYSTEM

323665A1

TANK

Fuel, Consists Of 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

Tank

1шт.

2

H151274

CYLINDER END CAP

1шт.

3

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

4

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

4шт.

5

232-4115

LOCK NUT,5/16"-18, GC

4шт.

6

325397A1

HOSE

1220 mm, Fuel

1шт.

7

217-292

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

1шт.

8

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

No. 4

2шт.

9

416421A1

FILTER, FUEL

In-Line, Not Illustrated

1шт.
