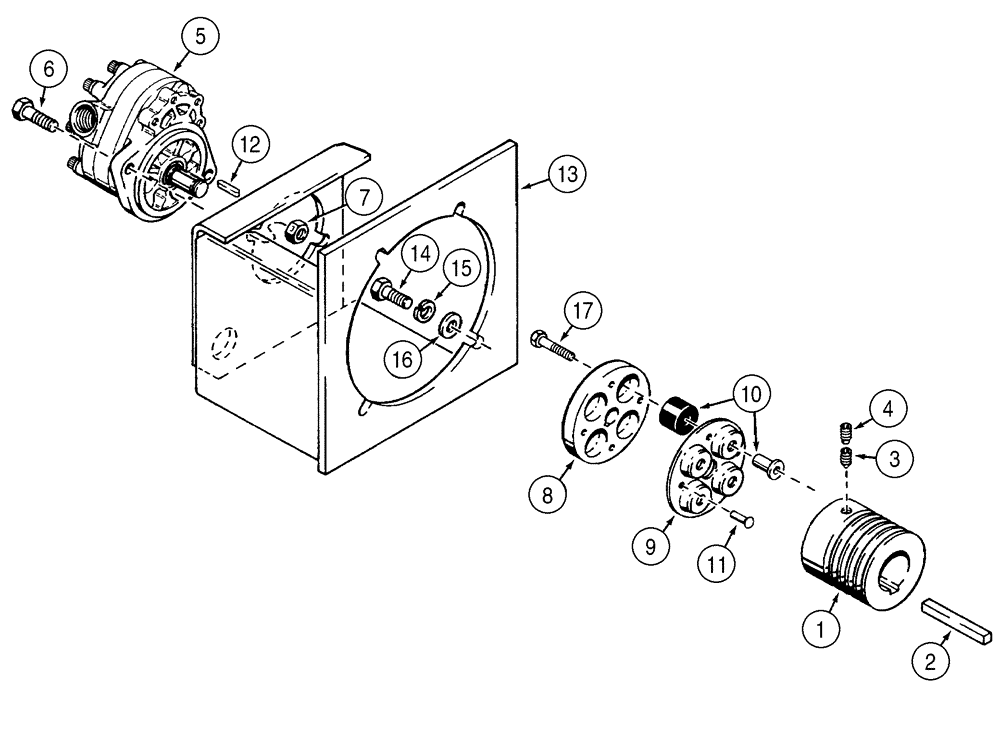

Запчасти Case TF300B (02-03) - MOUNTING PULLEY AND GROUND DRIVE PUMP (02) - ENGINE

1

403345A1

PULLEY

Engine

1шт.

2

H33290

KEY

1/4 x 2-1/4

1шт.

3

83-2386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

Cone pt

1шт.

4

83-6386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

3/8 hdg pt

1шт.

5

REF

INSTRUCTION

Pump Assy, Ground Drive, See Page(s) 6-5

1шт.

6

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

2шт.

7

230-4217

LOCK NUT,7/16"-14, GA

7/16

2шт.

H509992

COUPLING, BREAK AWAY

Consists Of 8 - 11

1шт.

8

NSS

NOT SOLD SEPARAT

Coupling

1шт.

9

NSS

NOT SOLD SEPARAT

Coupling

1шт.

10

N8328

BLOCK

4шт.

11

147-306

RIVET,But Hd, 1/4" x 1"

1/4 x 1

4шт.

12

H68957

KEY

1шт.

13

403670A1

BRACKET

1шт.

14

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

4шт.

15

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16")

4шт.

16

492-11044

LOCK WASHER,7/16"

4шт.

17

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.
