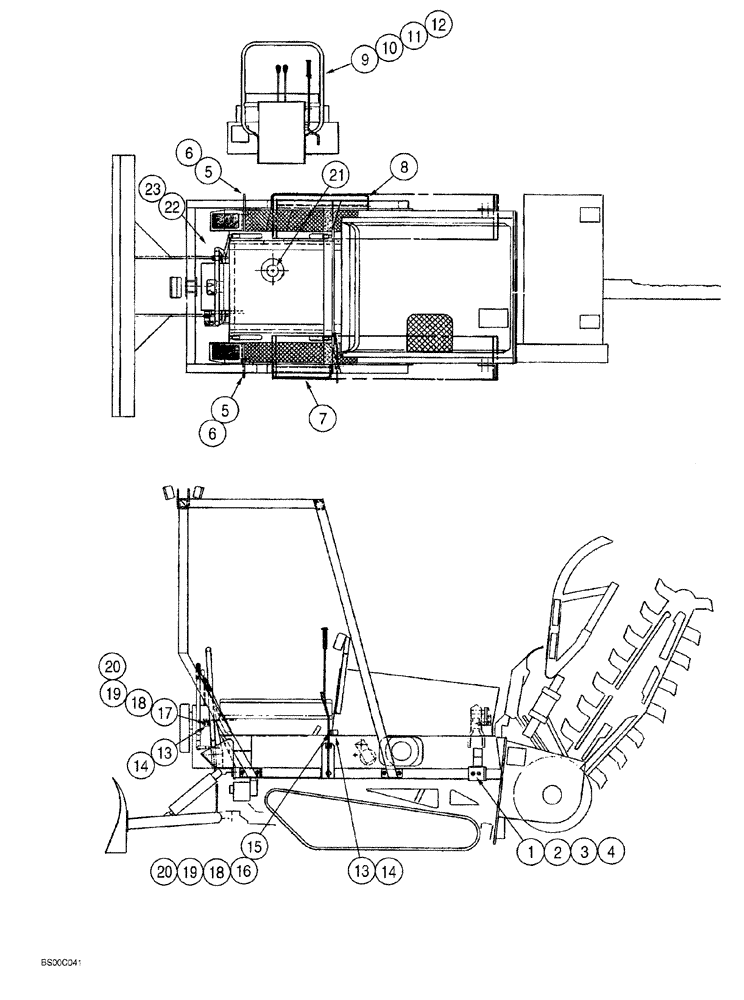

Запчасти Case TF300 (09-04) - LIFT HOOKS, LOCK BARS, STEPS AND LOCKING FUEL CAP (TF300 TRENCHER) (09) - CHASSIS/ATTACHMENTS

1

243782A1

BOLT

HOOK lift, front

2шт.

2

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

3

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

4шт.

4

232-4116

NUT,3/8"-16, GC

4шт.

5

243783A1

LIFTING EYE

HOOK lift, rear

2шт.

6

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex 5/16 NC x 1-1/4 inch

6шт.

7

243429A1

STEP operator, right-hand, Serial Range: welded-frame

1шт.

8

243430A1

STEP operator, left-hand, Serial Range: welded-frame

1шт.

9

243428A1

HANDLE

HANDRAIL assist, rear

1шт.

10

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

11

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

8шт.

12

231-4145

NUT,5/16"-18, GB

8шт.

13

223521A1

ANGLE

lock

2шт.

14

151-532

RIVET,Pop, 3/16" x .700"

pop, 3/16 x 21/32 inch

4шт.

15

365545A1

PLATE spacer

1шт.

16

327106A1

BAR

lock, short

1шт.

17

365544A1

BAR

lock, long

1шт.

18

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

19

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

4шт.

20

230-4114

NUT,1/4"-20, GA

hex, self locking, 1/4 inch NC

4шт.

21

108925A1

FILLER CAP

CAP fuel, locking, includes two keys

1шт.

22

135157A1

TUBE

SLEEVE nylon, hose protection

2шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, sleeve retaining

1шт.
