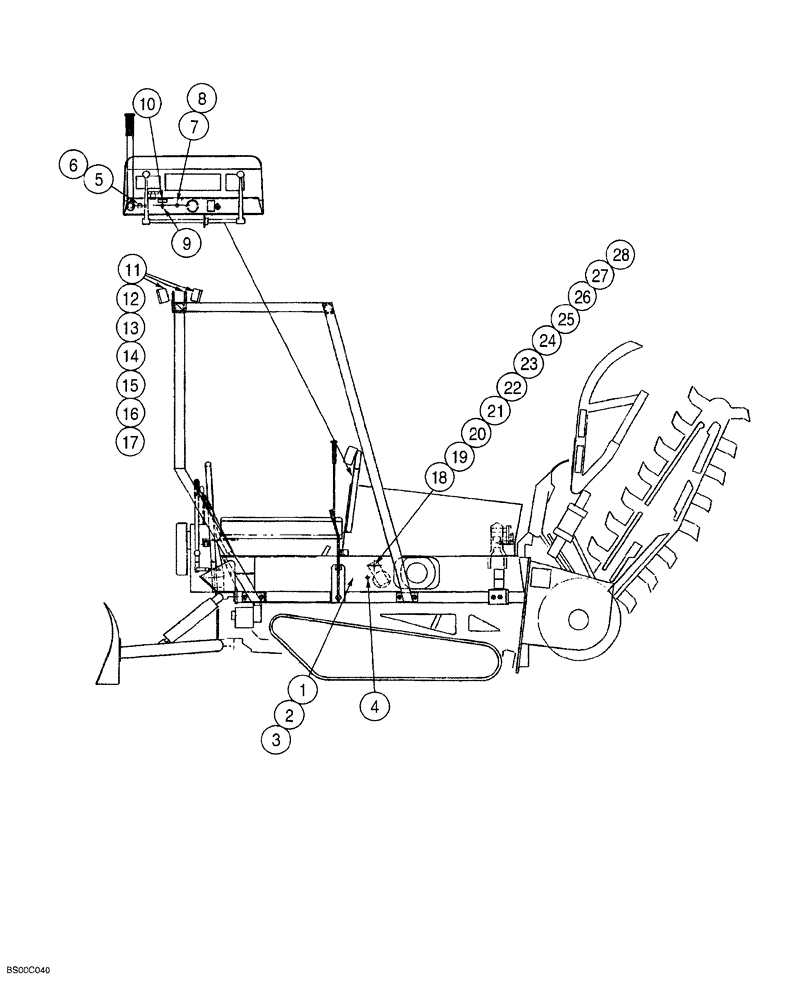

Запчасти Case TF300 (04-02) - ELECTRICAL HARNESS, LAMPS AND HORN (TF300 TRENCHER) (04) - ELECTRICAL SYSTEMS

1

223534A1

HARNESS

electrical, main

1шт.

2

365543A1

HARNESS

electrical, fuse

1шт.

3

A149802

FUSE

yellow 20 ampere

1шт.

4

142211A1

SOCKET

lamp auxiliary

1шт.

5

D74330

SWITCH

ASSEMBLY auxiliary receptacle

1шт.

6

178112A1

BUTTON

auxiliary switch

1шт.

7

D74330

SWITCH

ASSEMBLY work lamps

1шт.

8

108314A1

BUTTON

lamp switch

1шт.

9

D141486

SWITCH

button, horn

1шт.

10

D124182

DECAL

horn

1шт.

11

D126237

HEADLIGHT

LAMP ASSEMBLY work,12 volt

2шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

13

425-108

NUT,1/2" - 13, Gr 5

2шт.

14

243427A1

BRACKET

mounting lamp

2шт.

15

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

6шт.

16

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

6шт.

17

232-4116

NUT,3/8"-16, GC

6шт.

18

254130A1

HORN

"A" note 12 volt

1шт.

19

D122734

SUPPORT

horn mounting

1шт.

20

L30866

LOCK NUT

hex, special, horn mounting

1шт.

21

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex 5/16NCx1 1/4 inch

2шт.

22

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

2шт.

23

492-11031

LOCK WASHER,5/16"

2шт.

24

425-105

NUT,5/16"-18, G5

2шт.

25

864-5012

HEX SOC SCREW,M5 x 12mm, Cl 8.8

1шт.

26

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

27

95-81207

WASHER,0.53" ID x 0.81" OD x 0.07" Thk

flat, 17/32 x 13/i6 x 1/16 inch

2шт.

28

832-10405

NUT,M5 x .8, Cl 8

1шт.
