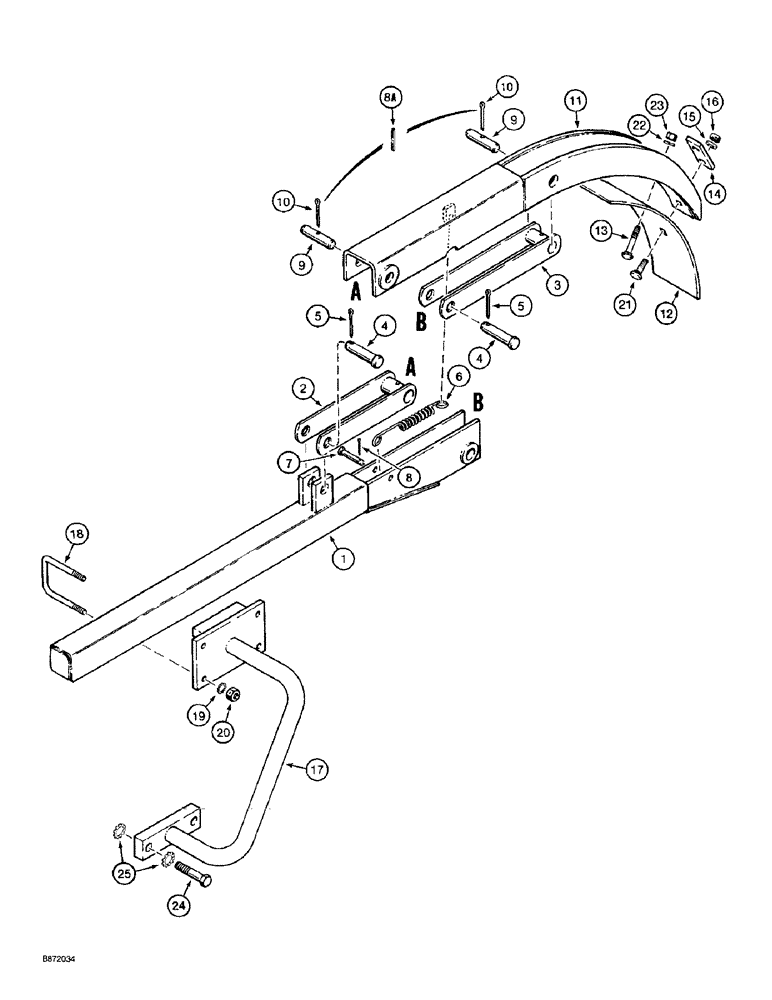

Запчасти Case TF300 (9-60) - CRUMBER BOOM AND ATTACHMENTS, USED ON MODELS WITH 40", 45" (09) - CHASSIS/ATTACHMENTS

1

H542894

BOOM

- crumber, 914 mm (3 foot) depth, if used

1шт.

1

H542902

BOOM

- crumber, 1171 mm (4 foot) depth, if used

1шт.

1

H538553

BOOM

- crumber, 1524 mm (5 foot) depth, if used

1шт.

1

H646182

PROTECTOR

BOOM - crumber, 1676 mm (5-1/2 foot) depth, if used

1шт.

2

H536664

DRAG LINK

LINK - short, upper

1шт.

3

H532440

DRAG LINK

LINK - long, lower

1шт.

4

H54320

AXLE PIN,19.05mm OD x 79.38mm L

PIN - clevis, 3/4 x 2-7/8 inch long, link retaining

2шт.

5

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

6

H128280

VALVE SPRING

SPRING - crumber boom

1шт.

7

H54395

AXLE PIN,9.47mm OD x 60.33mm L

PIN - clevis, 3/8 x 2-1/4 inch long

1шт.

8

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

8

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN, , If used 3/16" x 1 1/2", Slotted

2шт.

9

H118109

AXLE PIN,19.05mm OD x 92.08mm L

PIN - clevis, blade retaining

2шт.

10

432-1224

COTTER PIN,3/16" x 1-1/2"

if used 3/16" x 1 1/2"

2шт.

11

H536656

BRACKET

- crumber blade

1шт.

12

H127480

BLADE

- crumber, 6 inch wide, if used

1шт.

12

H60087

BLADE

- crumber, 8 inch width, if used

1шт.

12

H60103

BLADE

- crumber, 10 inch wide, if used

1шт.

13

411-864

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 4", Gr 2

BOLT - carriage, 1/2 NC x 4 inch, grade 2

2шт.

14

H309450

SPACER

PLATE - spacer, blade

1шт.

15

195-533

WASHER,1/2", SAE

- flat, 1/2" (17/32 x 1-1/16 x 3/32")

2шт.

16

230-4218

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

2шт.

17

H607986

ARM

HANDLE - grab, crumber

1шт.

18

H54312

BOLT

U-BOLT - grab handle

2шт.

19

493-41078

LOCK WASHER,Ext Tooth, 3/4"

WASHER - external tooth lock, 3/4 inch

4шт.

20

230-4218

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

4шт.

21

111-520

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G2

BOLT - carriage, 1/2 NC x 1-1/4 inch, grade 2

2шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

23

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

24

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch

2шт.

25

493-41078

LOCK WASHER,Ext Tooth, 3/4"

WASHER - external tooth lock, 3/4 inch

4шт.
