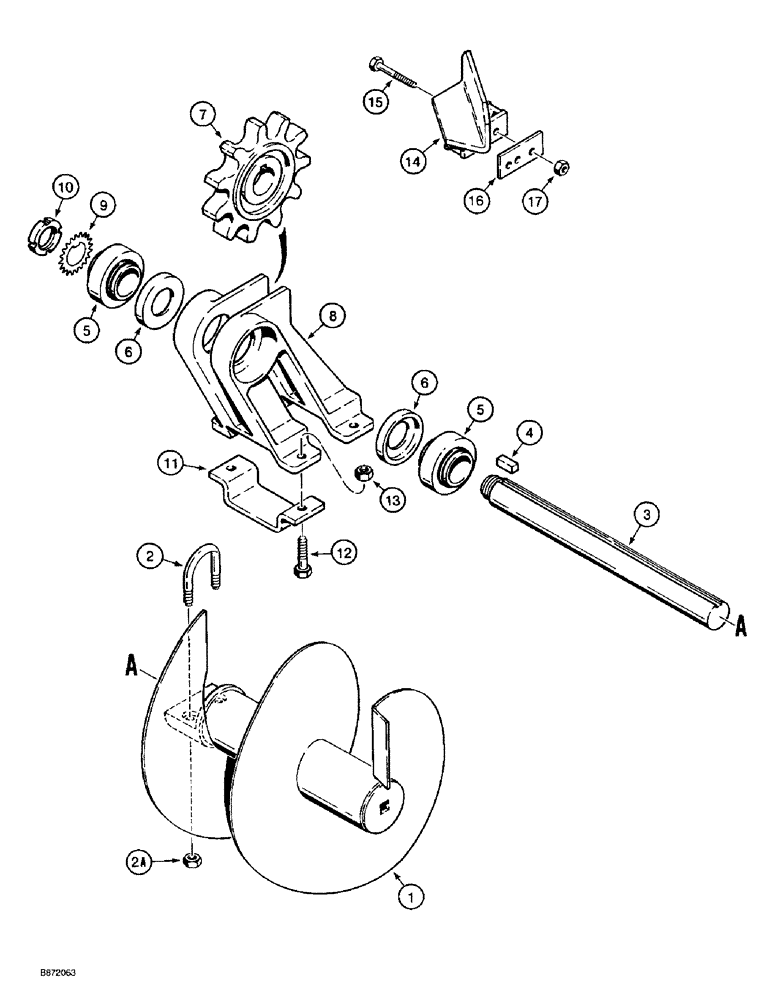

Запчасти Case TF300 (9-56) - FLUSH DIGGER AUGER, CHAIN SPROCKET MOUNTING AND, DRAG SLANT (09) - CHASSIS/ATTACHMENTS

1

H510750

AUGER

- dirt

1шт.

2

H34439

U-BOLT

- auger retaining

1шт.

2a

131-168

LOCK NUT,1/2"-20, GA

NUT - hex, self-locking, 1/2 inch NF

2шт.

3

H68486

SHAFT

- auger

1шт.

4

H70243

KEY

- square, 3/8 x 96 inch long

1шт.

5

H747303

BALL

BEARING - ball, shaft

2шт.

6

H74708

SHIELD

WASHER - thrust

2шт.

7

H68494

DRIVE SPROCKET

SPROCKET - chain

1шт.

8

H74716

SUPPORT

- auger mounting

1шт.

9

55-1007

LOCK WASHER,Type W-07

WASHER - bearing lock, W-07

1шт.

10

54-1007

BEARING LOCK NUT,Bearing, 1.3780" Bore

NUT - bearing lock, N-07

1шт.

11

H68536

CLAMP

- mounting, auger support

2шт.

12

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

13

230-4218

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

4шт.

14

H577452

LINK

PLATE - drag, slanted, 152 mm (6 inch)

3шт.

14

H577460

CHAIN (AG)

PLATE - drag, slant, 203 mm (8 inch)

3шт.

15

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

12шт.

16

H220640

SHIM

SPACER - drag plate

12шт.

17

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

12шт.
