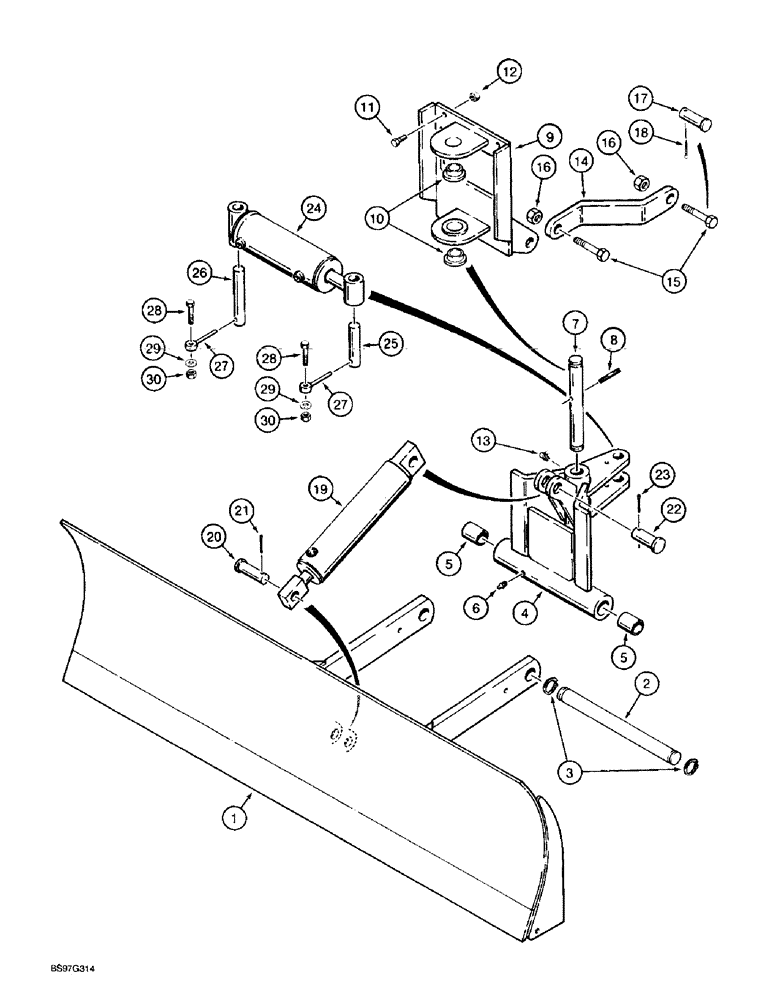

Запчасти Case TF300 (9-54) - BACKFILL BLADE AND CYLINDER MOUNTING (09) - CHASSIS/ATTACHMENTS

1

H558320

BLADE

- backfill

1шт.

2

H434372

SHAFT

- pivot, lift

1шт.

3

103-16125

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

2шт.

4

H586198

PIVOT

BRACKET - pivot, blade and cylinder mounting, Includes: Ref. 5

1шт.

5

H127852

BUSHING

- pivot

2шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

7

H182527

AXLE PIN

PIN - pivot, bracket

1шт.

8

138-314

LOCK PIN,9.53mm OD x 57.15mm L, Coiled

PIN, 3/8" x 2 1/4", Slotted

1шт.

9

H608026

SUPPORT

BRACKET - pivot mounting, Includes: Ref. 10

1шт.

10

H179077

BUSHING

-

2шт.

11

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

12

230-4218

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

2шт.

13

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

14

H252684

LINK

- pivot mounting bracket

2шт.

15

413-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5

4шт.

16

230-42116

LOCK NUT,1"-8, GA

NUT - hex, self-locking, 1 inch NC

4шт.

17

H37978

AXLE PIN

PIN - clevis, 1 x 2-1/4 inch, if used

4шт.

18

432-1228

COTTER PIN,3/16" x 1 3/4"

if used 3/16" x 1 3/4"

4шт.

19

REF

INSTRUCTION

CYLINDER ASSEMBLY - backfill blade lift, (See Figure 8-28)

1шт.

20

H65011

AXLE PIN,25.3mm OD x 75.41mm L

PIN - clevis, closed end of lift cylinder

1шт.

21

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

22

H71621

RETAINER

PIN - clevis, closed end of lift cylinder

1шт.

23

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

1шт.

24

H586172

CYLINDER

ASSEMBLY - 76 mm (3) ID x 146 mm (5-3/4 inch) stroke, blade angle, (See Figure 8-30)

1шт.

25

H56960

PIN

- pivot, rod end of angle cylinder

1шт.

26

H236448

PIN

- retaining, closed end of angle cylinder

1шт.

27

H313981

PIN

- retaining

2шт.

28

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

29

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

30

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

2шт.
