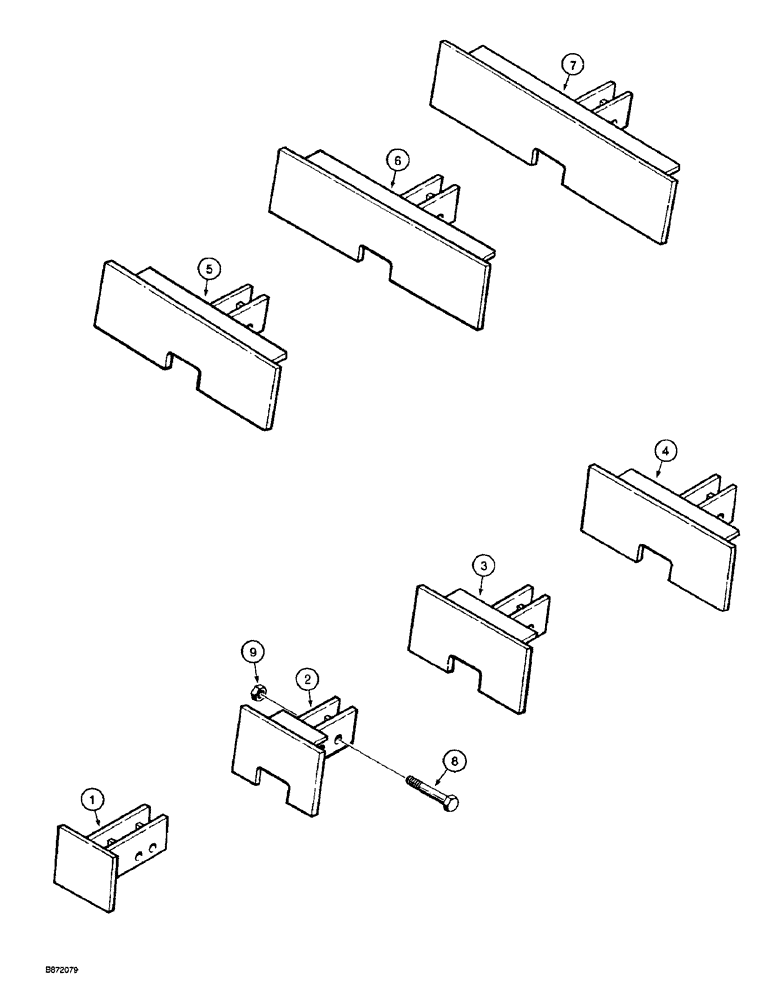

Запчасти Case TF300 (9-50) - DRAG PLATES - 28,000 LB. CHAINLINE (09) - CHASSIS/ATTACHMENTS

1

H502419

LINK

PLATE - drag, 76 mm (3 inch) wide

1шт.

2

H510040

LINK

PLATE - drag, 127 mm (5 inch) wide

1шт.

3

H509125

LINK

PLATE - drag, 178 mm (7 inch) wide

1шт.

4

H509604

LINK

PLATE - drag, 229 mm (9 inch) wide

1шт.

5

H509133

FLANGE

PLATE - drag, 279 mm (11 inch) wide

1шт.

6

H509620

LINK

PLATE - drag, 330 mm (13 inch) wide

1шт.

7

H509646

DEFLECTOR

PLATE - drag, 381 mm (15 inch) wide

1шт.

8

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

9

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

1шт.
