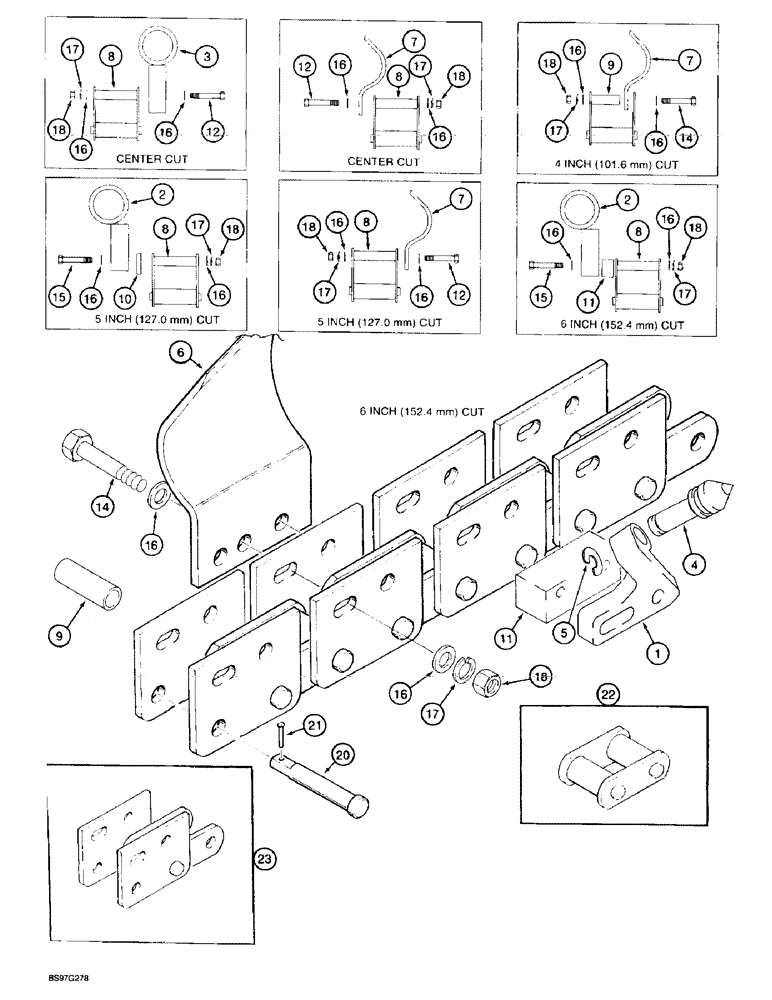

Запчасти Case TF300 (9-46) - MIXED 1/2 CUP 1/2 CARBIDE CUTTERS, USED WITH HEAVY DUTY 165 (09) - CHASSIS/ATTACHMENTS

1

183077A1

ADAPTER

HOLDER - carbide bit, left-hand

1шт.

2

183078A1

HOLDER

- carbide bit, right-hand

1шт.

3

183079A1

ADAPTER

HOLDER - carbide bit, straight

1шт.

4

183109A1

BIT

- cutting, carbide

1шт.

5

183108A1

CLIP

- retainer

1шт.

6

183138A1

TOOTH

- digging, right-hand

1шт.

7

183139A1

TOOTH

- digging, left-hand

1шт.

8

183081A1

SPACER

- tube, outside mount, 1-3/8 inch, center, 5 and 6 inch cuts

1шт.

9

183080A1

SPACER

- tube, inside mount, 1-3/16 inch, 4 inch cut

1шт.

10

ZWB1165-5

SPACER

BLOCK - spacer, 1/2 inch, 5 inch carbide cut

1шт.

11

ZWB1165-6

SPACER

BLOCK - spacer, 1 inch, 6 inch carbide cut

1шт.

12

328-644

BOLT,Hex, 3/8" - 24 x 2-3/4", Gr 8

Center and 5 inch cup cuts Hex, 3/8"-24 x 2 3/4", G8

1шт.

13

328-656

BOLT,Hex, 3/8" - 24 x 3-1/2", Gr 8

5 inch carbide cut Hex, 3/8"-24 x 3 1/2", G8

1шт.

14

328-640

BOLT,Hex, 3/8" - 24 x 2-1/2", Gr 8

4 inch cup cut Hex, 3/8"-24 x 2 1/2", G8

1шт.

15

328-664

SCREW

BOLT - hex, 3/8 NF x 4 inch, grade 8, 6 inch carbide cut

1шт.

16

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

1шт.

17

492-11038

LOCK WASHER,3/8"

1шт.

18

232-4616

LOCK NUT,3/8"-24, GC

NUT, LOCK, 3/8"-24, GC

1шт.

19

ZW16500BXX

CHAIN ASSEMBLY - digging, bare, 2 pitch

1шт.

Refer to Publication PM-2071, Case Trencher Replacement Parts Catalog, to determine the last two digits of the part number. Chain assemblies must be ordered from Wholegoods.

1шт.

20

ZW165PL

PIN - link with cotter, Includes: Ref. 21

1шт.

21

ZW165CT

CHAIN (AG)

PIN - cotter

1шт.

22

ZW165RL

CHAIN (AG)

LINK - roller, repair

1шт.

23

ZW165RPL

CHAIN (AG)

LINK - roller, repair, 2 pitch

1шт.
