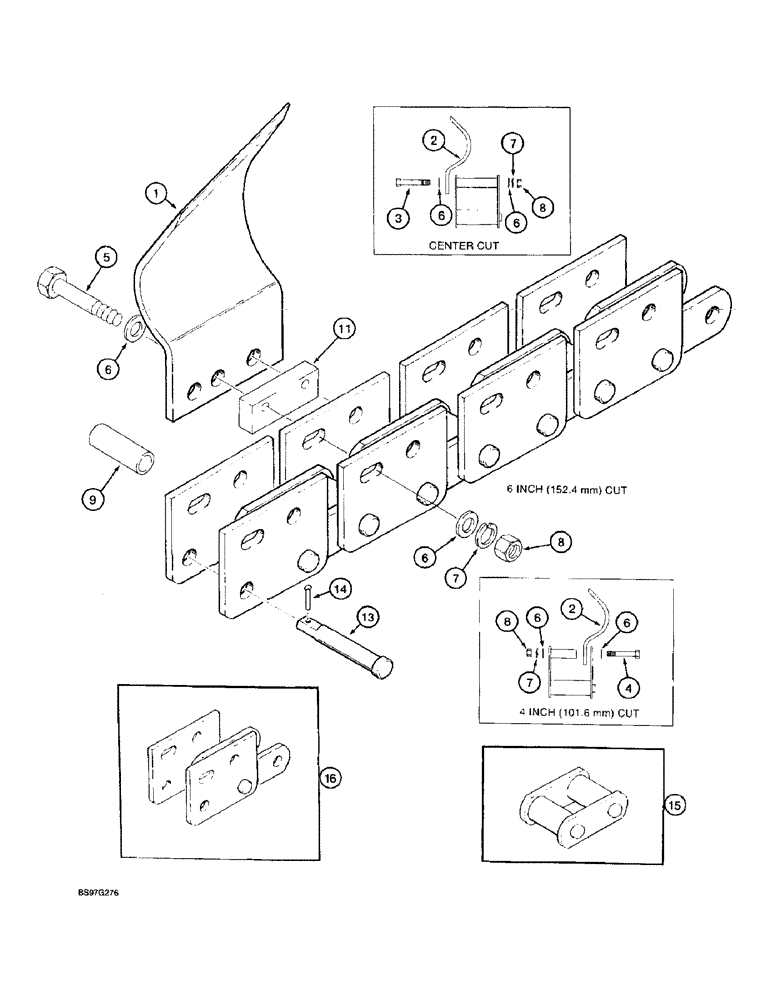

Запчасти Case TF300 (9-40) - DIGGING TEETH AND CHAIN, HEAVY DUTY 165 DIGGING CHAIN (09) - CHASSIS/ATTACHMENTS

1

183138A1

TOOTH

- digging, right-hand

1шт.

2

183139A1

TOOTH

- digging, left-hand

1шт.

3

328-644

BOLT,Hex, 3/8" - 24 x 2-3/4", Gr 8

Center cut Hex, 3/8"-24 x 2 3/4", G8

1шт.

4

328-640

BOLT,Hex, 3/8" - 24 x 2-1/2", Gr 8

4 inch cut Hex, 3/8"-24 x 2 1/2", G8

1шт.

5

328-656

BOLT,Hex, 3/8" - 24 x 3-1/2", Gr 8

6 inch cut Hex, 3/8"-24 x 3 1/2", G8

1шт.

6

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

1шт.

7

492-11038

LOCK WASHER,3/8"

1шт.

8

232-4616

LOCK NUT,3/8"-24, GC

NUT, LOCK, 3/8"-24, GC

1шт.

9

183081A1

SPACER

- tube, outside mount, 1-3/8 inch, center and 6 inch cut

1шт.

10

183080A1

SPACER

- tube, inside mount, 1-3/16 inch, 4 inch cut

1шт.

11

ZWB1165-5

SPACER

BLOCK - spacer, 1/2 inch, 6 inch cut

1шт.

Refer to Publication PM-2071, Case Trencher Replacement Parts Catalog, to determine the last two digits of the part number. Chain assemblies must be ordered from Wholegoods.

1шт.

12

ZW165062XX

CHAIN ASSEMBLY - digging, rock and frost bolt-on tooth

1шт.

Refer to Publication PM-2071, Case Trencher Replacement Parts Catalog, to determine the last two digits of the part number. Chain assemblies must be ordered from Wholegoods.

1шт.

12

ZW16506RXX

CHAIN ASSEMBLY - digging, mixed tooth, cup and rock/frost

1шт.

Refer to Publication PM-2071, Case Trencher Replacement Parts Catalog, to determine the last two digits of the part number. Chain assemblies must be ordered from Wholegoods.

1шт.

12

ZW16506MXX

CHAIN ASSEMBLY - mixed cup, rock/frost

1шт.

Refer to Publication PM-2071, Case Trencher Replacement Parts Catalog, to determine the last two digits of the part number. Chain assemblies must be ordered from Wholegoods.

1шт.

12

ZW16506SXX

CHAIN ASSEMBLY - digging, solid weld terminator

1шт.

Refer to Publication PM-2071, Case Trencher Replacement Parts Catalog, to determine the last two digits of the part number. Chain assemblies must be ordered from Wholegoods.

1шт.

13

ZW165PC

PIN

- link with cotter

1шт.

14

ZW165CT

CHAIN (AG)

PIN - cotter

1шт.

15

ZW165RL

CHAIN (AG)

LINK - roller, repair

1шт.

16

ZW165RPL

CHAIN (AG)

LINK - roller, repair, 2 pitch

1шт.
