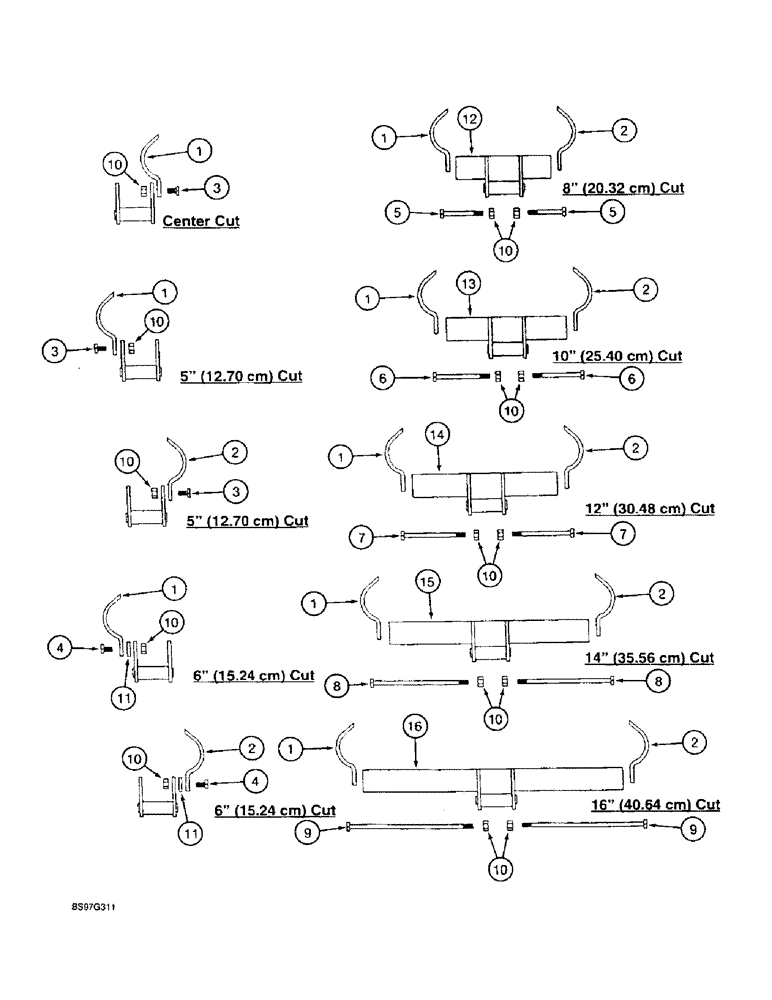

Запчасти Case TF300 (9-36) - DIGGING TEETH AND CHAIN, STANDARD DUTY 164 DIGGING CHAIN (34 (09) - CHASSIS/ATTACHMENTS

1

188750A1

TOOTH

- digging, right-hand

1шт.

2

188749A1

TOOTH

- digging, left-hand

1шт.

3

328-614

BOLT,Hex, 3/8" - 24 x 7/8", Gr 8

Center and 5 inch cut Hex, 3/8"-24 x 7/8", G8, Full Thd

1шт.

4

328-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 8

- hex, 3/8 NF x 1-1/4 inch, grade 8, 6 inch cut

1шт.

5

328-636

BOLT,Hex, 3/8" - 24 x 2-1/4", Gr 8

8 inch cut Hex, 3/8"-24 x 2 1/4", G8

1шт.

6

328-648

BOLT,Hex, 3/8" - 24 x 3", Gr 8

10 inch cut Hex, 3/8"-24 x 3", G8

1шт.

7

328-664

SCREW

BOLT - hex, 3/8 NF x 4 inch, grade 8, 12 inch cut

1шт.

8

28-680

BOLT,Hex, 3/8" - 24 x 5", Gr 8

- hex, 3/8 NF x 5 inch, grade 8, 14 inch cut

1шт.

9

328-696

BOLT - hex, 3/8 NF x 6 inch, grade 8, 16 inch cut

1шт.

10

232-4616

LOCK NUT,3/8"-24, GC

NUT, LOCK, 3/8"-24, GC

1шт.

11

H208355

SPACER

- tooth, digging width, 6 inch

1шт.

12

H208439

BRACKET

ADAPTER - digging width, 8 inch

1шт.

13

H208447

BRACKET

ADAPTER - digging width, 10 inch

1шт.

14

H564781

BRACKET

ADAPTER - digging width, 12 inch

1шт.

15

H564799

BRACKET

ADAPTER - digging width, 14 inch

1шт.

16

H564994

ADAPTER - digging width, 16 inch

1шт.

17

ZB164082XX

CHAIN ASSEMBLY - cupped teeth, 2 pitch, 8 inch digging width

1шт.

Refer to Publication PM-2071, Case Trencher Replacement Parts Catalog, to determine the last two digits of the part number. Chain assemblies must be ordered from Wholegoods.

1шт.

17

ZB164084XX

CHAIN ASSEMBLY - cupped teeth, 4 pitch, 8 inch digging width

1шт.

Refer to Publication PM-2071, Case Trencher Replacement Parts Catalog, to determine the last two digits of the part number. Chain assemblies must be ordered from Wholegoods.

1шт.

17

ZB164102XX

CHAIN ASSEMBLY - cupped teeth, 2 pitch, 10 inch digging width

1шт.

Refer to Publication PM-2071, Case Trencher Replacement Parts Catalog, to determine the last two digits of the part number. Chain assemblies must be ordered from Wholegoods.

1шт.

17

ZB164104XX

CHAIN ASSEMBLY - cupped teeth, 4 pitch, 10 inch digging width

1шт.

Refer to Publication PM-2071, Case Trencher Replacement Parts Catalog, to determine the last two digits of the part number. Chain assemblies must be ordered from Wholegoods.

1шт.

17

ZB164122XX

CHAIN ASSEMBLY - cupped teeth, 2 pitch, 12 inch digging width

1шт.

Refer to Publication PM-2071, Case Trencher Replacement Parts Catalog, to determine the last two digits of the part number. Chain assemblies must be ordered from Wholegoods.

1шт.

17

ZB164124XX

CHAIN ASSEMBLY - cupped teeth, 4 pitch, 12 inch digging width

1шт.

Refer to Publication PM-2071, Case Trencher Replacement Parts Catalog, to determine the last two digits of the part number. Chain assemblies must be ordered from Wholegoods.

1шт.

17

ZB164142XX

CHAIN ASSEMBLY - cupped teeth, 2 pitch, 14 inch digging width

1шт.

Refer to Publication PM-2071, Case Trencher Replacement Parts Catalog, to determine the last two digits of the part number. Chain assemblies must be ordered from Wholegoods.

1шт.

17

ZB164144XX

CHAIN ASSEMBLY - cupped teeth, 4 pitch, 14 inch digging width

1шт.

Refer to Publication PM-2071, Case Trencher Replacement Parts Catalog, to determine the last two digits of the part number. Chain assemblies must be ordered from Wholegoods.

1шт.

17

ZB164162XX

CHAIN ASSEMBLY - cupped teeth, 2 pitch, 16 inch digging width

1шт.

Refer to Publication PM-2071, Case Trencher Replacement Parts Catalog, to determine the last two digits of the part number. Chain assemblies must be ordered from Wholegoods.

1шт.

17

ZB164164XX

CHAIN ASSEMBLY - cupped teeth, 4 pitch, 16 inch digging width

1шт.

Refer to Publication PM-2071, Case Trencher Replacement Parts Catalog, to determine the last two digits of the part number. Chain assemblies must be ordered from Wholegoods.

1шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.
