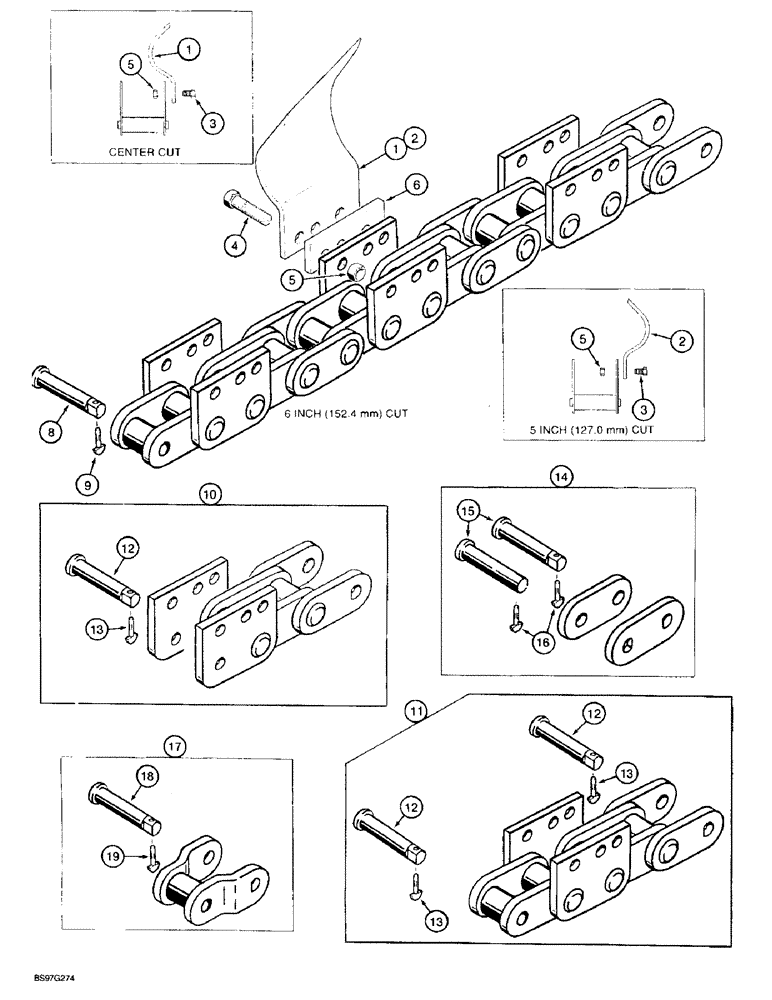

Запчасти Case TF300 (9-34) - DIGGING TEETH AND CHAIN, STANDARD DUTY 164 DIGGING CHAIN (34 (09) - CHASSIS/ATTACHMENTS

1

188750A1

TOOTH

- digging, right-hand

1шт.

2

188749A1

TOOTH

- digging, left-hand

1шт.

3

25771R1

BOLT,Hex, 3/8" - 24 x 7/8", Gr 8

- hex, 3/8 NF x 7/8 inch, grade 8, center and 5 inch cut, (Not Shown) (replaces 328-614)

1шт.

4

328-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 8

- hex, 3/8 NF x 1-1/4 inch, grade 8, 6 inch cut

1шт.

5

232-4616

LOCK NUT,3/8"-24, GC

NUT, LOCK, 3/8"-24, GC

1шт.

6

H208355

SPACER

- tooth

1шт.

7

ZB164062XX

CHAIN ASSEMBLY - digging, cupped teeth, 2 pitch, Includes: Ref. 8 and 9

1шт.

Refer to Publication PM-2071, Case Trencher Replacement Parts Catalog, to determine the last two digits of the part number. Chain assemblies must be ordered from Wholegoods.

1шт.

7

ZB164064XX

CHAIN ASSEMBLY - digging, cupped teeth, 4 pitch, Includes: Ref. 8 and 9

1шт.

Refer to Publication PM-2071, Case Trencher Replacement Parts Catalog, to determine the last two digits of the part number. Chain assemblies must be ordered from Wholegoods.

1шт.

8

253214A1

PIN

- connector

1шт.

9

H85274

SPLIT PIN/SAFETY PIN

PIN - retaining

1шт.

10

H673238

CHAIN (AG)

SECTION ASSEMBLY - repair, digging chain, 2 pitch, Includes: Ref. 12 and 13

1шт.

11

H564633

KIT

SECTION ASSEMBLY - repair, digging chain, 4 pitch, Includes: Ref. 12 and 13

1шт.

12

H208454

AXLE PIN

PIN - connector

2шт.

13

H85274

SPLIT PIN/SAFETY PIN

PIN - retaining

2шт.

14

H564815

DRAG LINK

LINK ASSEMBLY - connector, digging chain, 1 pitch, includes 2 links, Includes: Ref. 15 and 16

1шт.

15

H208454

AXLE PIN

PIN - connector

2шт.

16

H85274

SPLIT PIN/SAFETY PIN

PIN - retaining

2шт.

17

H208462

DRAG LINK

LINK ASSEMBLY - half link, offset, digging chain, 1 pitch, Includes: Ref. 18 and 19

1шт.

18

H208454

AXLE PIN

PIN - connector

1шт.

19

H85274

SPLIT PIN/SAFETY PIN

PIN - retaining

1шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.
